A-B 1762-L24BWA 控制器模块 是Allen-Bradley（现为Rockwell Automation旗下品牌）的MicroLogix 1200系列PLC（可编程逻辑控制器）的一部分。这款控制器模块专为那些不熟悉电子电路、不懂计算机原理和汇编语言但需要使用计算机进行工业控制的人员设计，为他们打开了方便之门。
A-B 1762-L24BWA 控制器模块 详情介绍：
AB 1762-L24BWA控制器模块是Allen-Bradley（现为Rockwell Automation旗下品牌）的MicroLogix 1200系列PLC（可编程逻辑控制器）的一部分。这款控制器模块专为那些不熟悉电子电路、不懂计算机原理和汇编语言但需要使用计算机进行工业控制的人员设计，为他们打开了方便之门。
以下是AB 1762-L24BWA控制器模块的主要特点和规格：
- 输入/输出配置：该模块具有10个标准24VDC输入和4个快速24VDC输入，以及10个继电器输出。这种配置使其能够处理多种输入信号，并控制多种工业设备。
- 电源：它可以在120至240伏交流电源下运行，为控制器提供稳定的电力支持。
- 尺寸与重量：尺寸约为3.5 x 4.33 x 3.43英寸，装运重量为2磅，使其易于安装和集成到各种工业自动化系统中。
- 工作环境温度：该模块可以在0至55摄氏度的环境温度下正常工作，适应广泛的工业环境。
- 通信端口：具有一个额外的RS-232通信端口（编程器/HMI端口），用于需要接口或网络连接的高级和高效通信以及应用。但请注意，该端口仅支持DH全双工应用程序。
- 系统灵活性：MicroLogix 1200系列PLC采用模块化、无机架结构，降低了成本并减少了备品配件。I/O扩展模块提供了更大的应用灵活性，而存储器模块可用于用户的上载、下载和传送。
- 实时时钟与固件升级：内置实时时钟RTC可用于定时控制等，并且操作系统可闪速升级，无需更换硬件。用户可通过Web网络下载控制器的最新固件程序来升级控制器。
总的来说，AB 1762-L24BWA控制器模块是一款功能强大、易于使用的工业自动化控制器，能够满足各种工业应用的需求。通过其稳定的电源支持、丰富的I/O配置和通信端口，以及与MicroLogix 1200系列PLC的集成，该模块为工业自动化系统的控制和监测提供了强有力的支持。

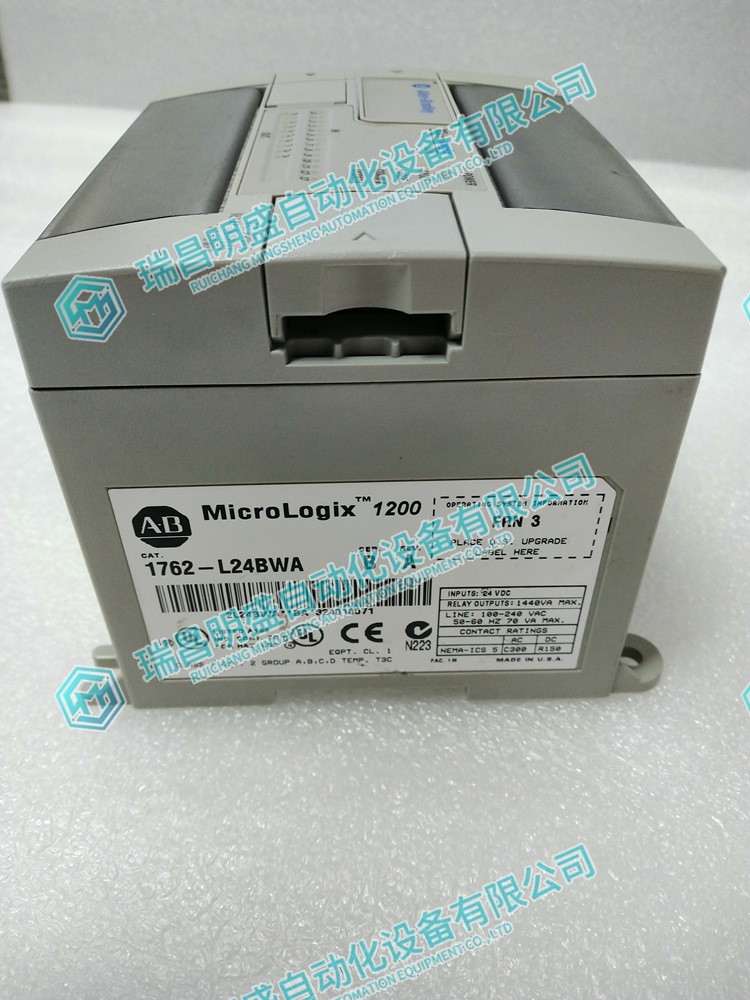

A-B 1762-L24BWA 控制器模块 实物图片：
A-B 1762-L24BWA 控制器模块 实物视频
A-B 1762-L24BWA Controller Module Details Introduction:
The AB 1762-L24BWA controller module is part of Allen Bradley's MicroLogix 1200 series PLC (Programmable Logic Controller). This controller module is designed specifically for those who are not familiar with electronic circuits, do not understand computer principles and assembly language, but need to use computers for industrial control, opening the door to convenience for them.
The following are the main features and specifications of the AB 1762-L24BWA controller module:
Input/Output Configuration: This module has 10 standard 24VDC inputs and 4 fast 24VDC inputs, as well as 10 relay outputs. This configuration enables it to process multiple input signals and control various industrial equipment.
Power supply: It can operate on a 120 to 240 volt AC power supply, providing stable power support for the controller.
Size and weight: Approximately 3.5 x 4.33 x 3.43 inches in size, with a shipping weight of 2 pounds, making it easy to install and integrate into various industrial automation systems.
Working environment temperature: This module can operate normally in environments ranging from 0 to 55 degrees Celsius, adapting to a wide range of industrial environments.
Communication Port: With an additional RS-232 communication port (programmer/HMI port), it is used for advanced and efficient communication and applications that require interfaces or network connections. However, please note that this port only supports DH full duplex applications.
System flexibility: The MicroLogix 1200 series PLC adopts a modular and inorganic rack structure, reducing costs and reducing spare parts. The I/O expansion module provides greater application flexibility, while the memory module can be used for user uploads, downloads, and transfers.
Real time clock and firmware upgrade: The built-in real-time clock RTC can be used for timing control, and the operating system can be upgraded at lightning speed without the need for hardware replacement. Users can download the latest firmware program of the controller through the web network to upgrade the controller.
Overall, the AB 1762-L24BWA controller module is a powerful and easy-to-use industrial automation controller that can meet the needs of various industrial applications. Through its stable power support, rich I/O configuration and communication ports, as well as integration with MicroLogix 1200 series PLCs, this module provides strong support for the control and monitoring of industrial automation systems.
