UNITROL 1010高性能数据采集模块

ABB   UNITROL 1010高性能数据采集模块  一款高性能数据采集模块，具备多通道的模拟输入功能，可以同时采集多个模拟信号。这种特性使其适用于需要同时测量多个信号的应用场景，如电力系统的监控、电机控制、工业自动化等。

ABB   UNITROL 1010高性能数据采集模块   详情介绍：

UNITROL 1010是一款高性能数据采集模块，具备多通道的模拟输入功能，可以同时采集多个模拟信号。这种特性使其适用于需要同时测量多个信号的应用场景，如电力系统的监控、电机控制、工业自动化等。特别是在发电厂的励磁控制系统中，UNITROL 1010模块能够实时采集发电机的电流、电压、功率等参数，并将其传输到励磁控制系统中，实现精确的励磁控制。

该模块具有高速采样率和高分辨率的特点，这保证了精确的信号重构和捕捉瞬态事件，提供了丰富的细节和更高的测量精度。为了满足不同信号幅值的测量需求，它支持灵活的输入范围和增益控制，并提供了多个可编程增益放大器以实现输入信号的调整和优化。

此外，UNITROL 1010模块还支持外部触发和同步操作功能，这使其能够与其他设备进行精确的时钟同步，进一步提高数据采集的准确性和可靠性。其以太网、USB连接以及数据和事件记录等功能也增强了其实用性。

在设计上，UNITROL 1010是为励磁电流最高10A的设备设计的小型化设备，并基于先进的微处理器技术和允许用于持续操作的电流输出高达10ADC的IGBT半导体器件。它能够在严苛条件和不同温度范围下进行高性能工作，并且完全符合DNV和UL标准。

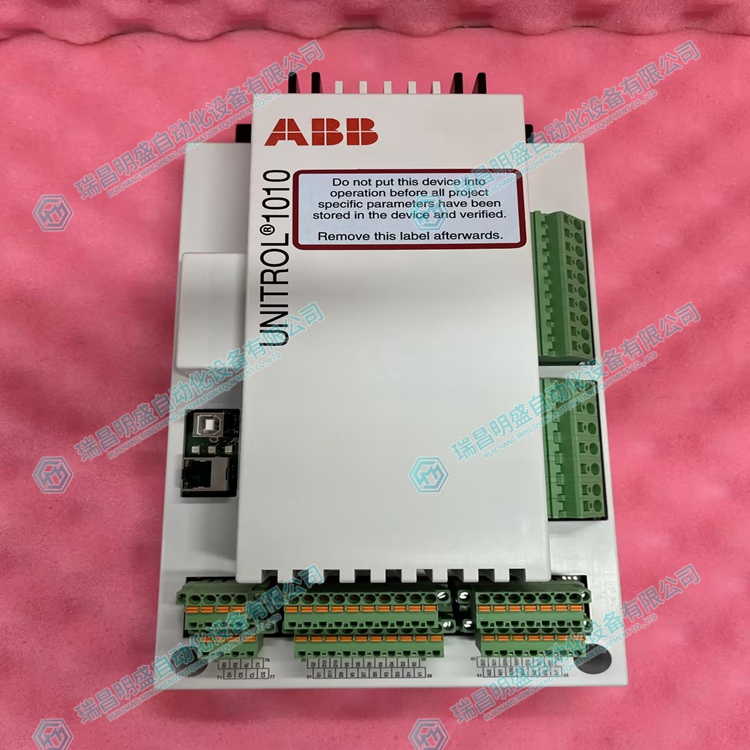

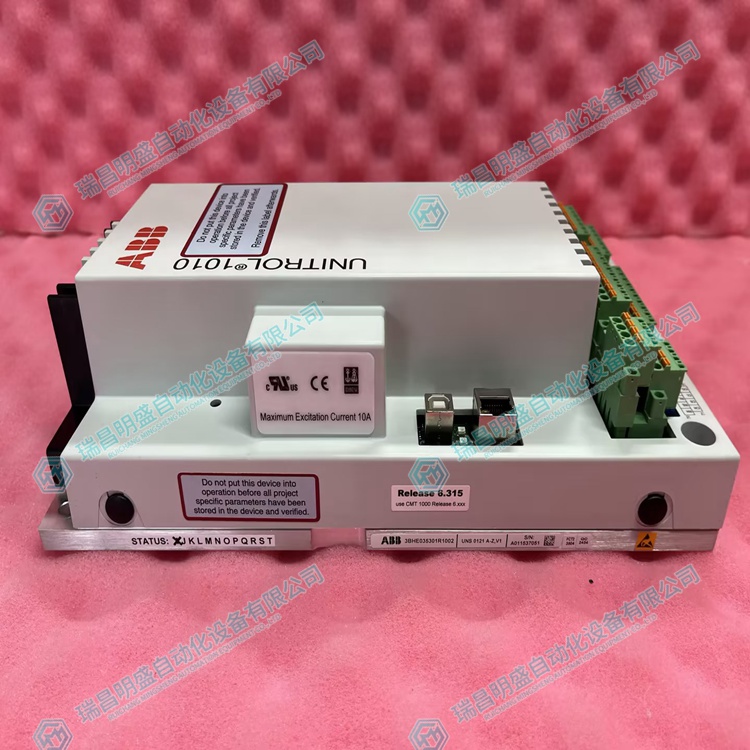

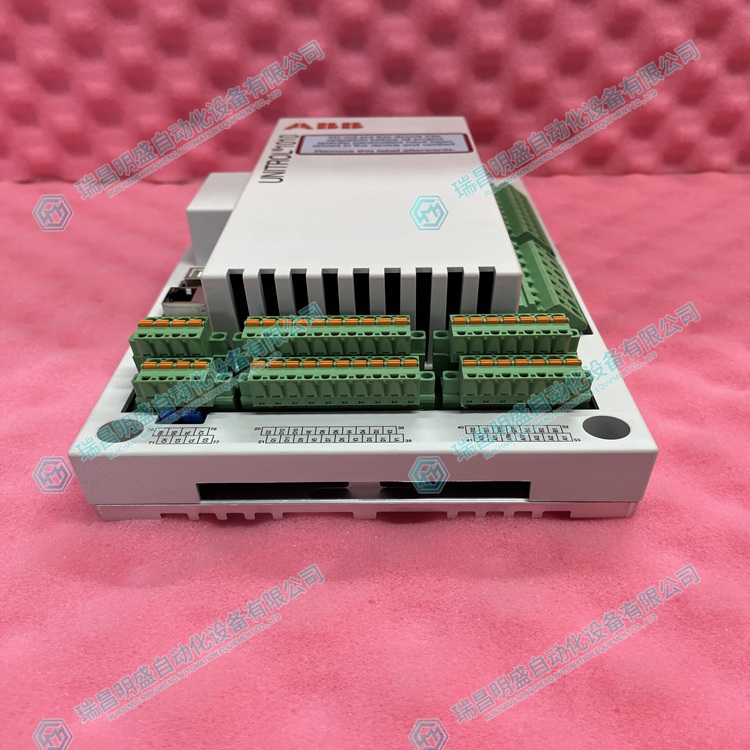

ABB   UNITROL 1010高性能数据采集模块   实物图片：

ABB   UNITROL 1010高性能数据采集模块    实物视频

ABB UNITROL 1010 High Performance Data Acquisition Module Details Introduction:

UNITROL 1010 is a high-performance data acquisition module with multi-channel analog input function, which can simultaneously collect multiple analog signals. This feature makes it suitable for application scenarios that require simultaneous measurement of multiple signals, such as power system monitoring, motor control, industrial automation, etc. Especially in the excitation control system of power plants, the UNITROL 1010 module can collect real-time parameters such as generator current, voltage, and power, and transmit them to the excitation control system to achieve precise excitation control.

This module has the characteristics of high sampling rate and high resolution, which ensures accurate signal reconstruction and capture of transient events, providing rich details and higher measurement accuracy. In order to meet the measurement needs of different signal amplitudes, it supports flexible input range and gain control, and provides multiple programmable gain amplifiers to achieve input signal adjustment and optimization.

In addition, the UNITROL 1010 module also supports external triggering and synchronization operations, which enables it to achieve precise clock synchronization with other devices, further improving the accuracy and reliability of data collection. Its Ethernet, USB connection, data and event recording functions have also enhanced its practicality.

In terms of design, UNITROL 1010 is a miniaturized device designed for devices with excitation currents up to 10A, based on advanced microprocessor technology and IGBT semiconductor devices that allow for continuous operation with current output up to 10ADC. It can perform high-performance work under harsh conditions and different temperature ranges, and fully complies with DNV and UL standards.
