DYSF118B 61430001-XG电路板

发布时间:2024-05-31人气:
  • DYSF118B 61430001-XG电路板
  • DYSF118B 61430001-XG电路板
  • DYSF118B 61430001-XG电路板
  • DYSF118B 61430001-XG电路板

DYSF118B 61430001-XG是一款电路板,具体是用于监控与数据采集系统(SCADA系统)、状态监测系统或者可能是某个特定工业自动化设备的一部分。

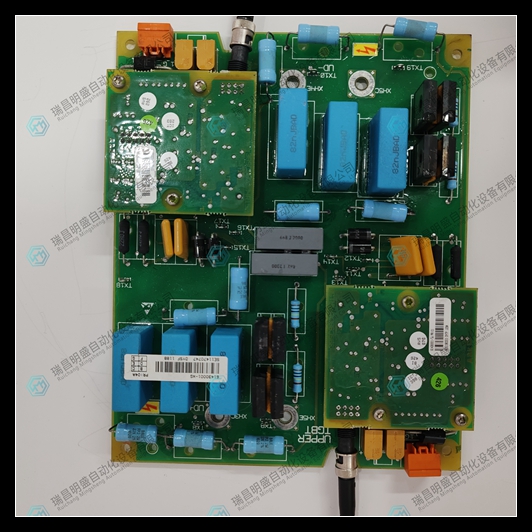

DYSF118B 61430001-XG电路板产品实物图片展示

DYSF118B 61430001-XG (4).jpg

DYSF118B 61430001-XG电路板视频展示

DYSF118B 61430001-XG电路板特点用途及使用说明

特点与用途:
状态监测:该电路板能够监测关键设备或系统的运行状态,包括但不限于温度、压力、流量、振动、电流、电压等参数,这对于预防性维护和系统效率管理至关重要。
数据采集:具备数据采集功能,能够周期性或连续收集现场设备的数据,并可能通过通信接口(如以太网、串口等)将数据传输至上位机或监控中心,支持远程监控和分析。
工业级设计:作为工业应用的电路板,DYSF118B 61430001-XG可能采用耐高温、抗振动、防尘等设计,确保在严苛的工业环境中稳定工作。
通信能力:可能集成有多种通信接口,支持工业通信协议(如MODBUS、PROFIBUS等),便于集成到更广泛的自动化网络中。
兼容性与扩展性:设计上可能考虑了与其他工业控制系统的兼容性,可能支持通过扩展模块或总线增加额外的功能。
使用说明:
安装:按照提供的安装指南,确保电路板正确安装在指定的底座或机架中,注意静电防护措施。
接线:根据接线图正确连接电源、传感器、执行器及通信线缆。
配置与调试:使用专用软件或硬件工具对电路板进行参数设置和功能配置,可能包括IP地址设置、传感器参数校准等。
系统集成:将该板卡集成到SCADA系统或自动化控制系统中,进行网络配置和通信测试。
维护与监控:定期检查电路板的工作状态,监测系统日志,及时处理异常情况,根据需要进行软件或固件更新。

Features and uses:

Status monitoring: This circuit board can monitor the operating status of key equipment or systems, including but not limited to temperature, pressure, flow, vibration, current, voltage, and other parameters, which is crucial for preventive maintenance and system efficiency management.

Data collection: With data collection function, it can periodically or continuously collect data from on-site devices, and may transmit data to the upper computer or monitoring center through communication interfaces (such as Ethernet, serial port, etc.), supporting remote monitoring and analysis.

Industrial grade design: As a circuit board for industrial applications, DYSF118B 61430001-XG may adopt designs that are resistant to high temperatures, vibrations, and dust, ensuring stable operation in harsh industrial environments.

Communication capability: It may integrate multiple communication interfaces and support industrial communication protocols (such as MODBUS, PROFIBUS, etc.), making it easy to integrate into a wider range of automation networks.

Compatibility and Scalability: Compatibility with other industrial control systems may be considered in the design, and additional functionalities may be supported through expansion modules or buses.

Instructions for use:

Installation: According to the provided installation guidelines, ensure that the circuit board is correctly installed in the designated base or rack, and pay attention to electrostatic protection measures.

Wiring: Connect the power supply, sensors, actuators, and communication cables correctly according to the wiring diagram.

Configuration and debugging: Use specialized software or hardware tools to set and configure the parameters and functions of the circuit board, which may include IP address settings, sensor parameter calibration, etc.

System integration: Integrate the board into the SCADA system or automation control system for network configuration and communication testing.

Maintenance and monitoring: Regularly check the working status of the circuit board, monitor system logs, promptly handle abnormal situations, and update software or firmware as needed.
