B5LA HENF327886R0001接线端子模块

发布时间:2024-05-31人气:
  • B5LA HENF327886R0001接线端子模块
  • B5LA HENF327886R0001接线端子模块
  • B5LA HENF327886R0001接线端子模块
  • B5LA HENF327886R0001接线端子模块

B5LA HENF327886R0001是ABB品牌下的一款工业用接线端子模块。这类模块通常用于电气设备的内部接线,便于电线的连接、分配和管理。

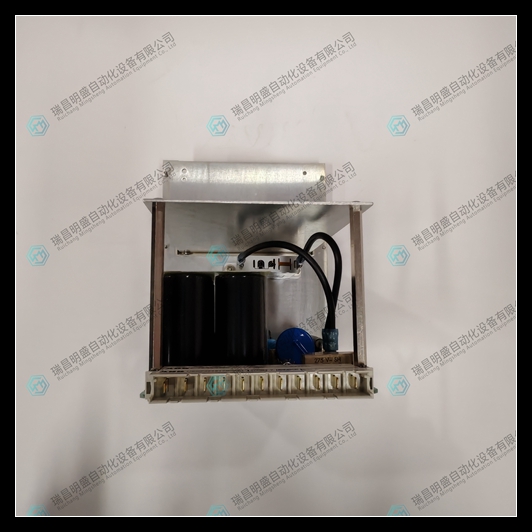

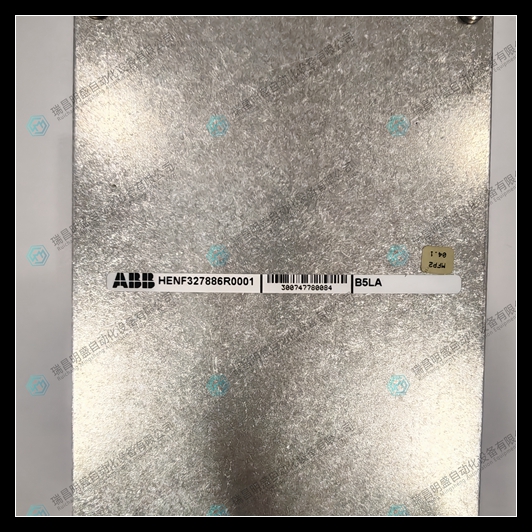

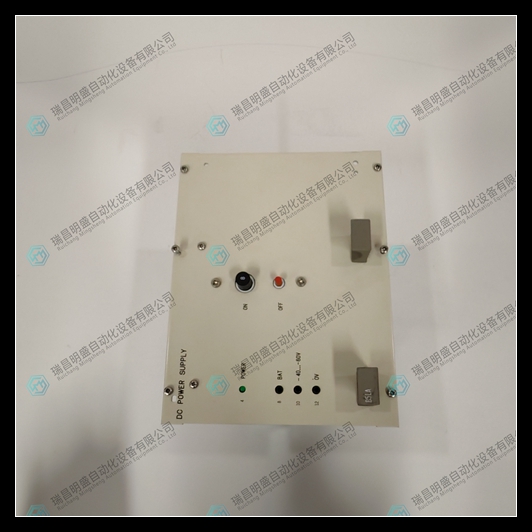

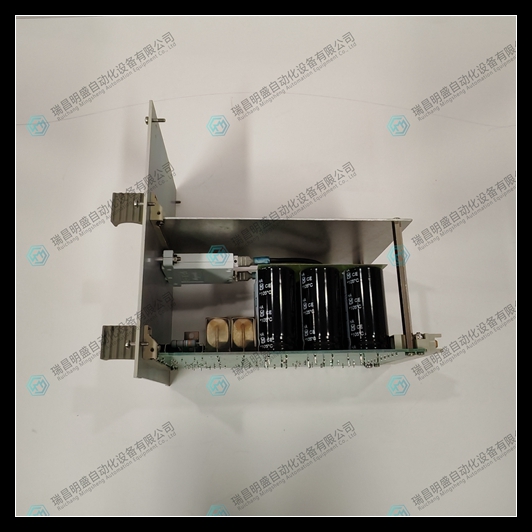

B5LA HENF327886R0001接线端子模块产品实物图片

B5LA HENF327886R0001.jpg

B5LA HENF327886R0001接线端子模块实物视频展示

B5LA HENF327886R0001接线端子模块特点和使用说明

特点:
广泛应用领域:广泛应用于工业控制系统、电力系统、自动化设备等领域,适配于需要高可靠性和稳定性的电气连接场合。
模块化设计:采用全系列模块化结构,便于控制柜内接线附件的标准化安装和维护,能够快速适应不同的系统配置需求。
端子数量多:提供多个端子位置,适合大量导线的互联,适用于复杂的电气接线布局,支持单层、双层等多种排列方式。
标准化与兼容性:符合行业标准的安装尺寸,元器件布局透明化,指示清晰,易于识别和操作,提高系统集成的兼容性。
可靠性与安全性:设计考虑了高可靠性,确保在工业环境下的长期稳定工作,可能具备防误插设计,防止错误连接,提升系统安全性。
便捷接线:可能采用螺丝紧固或弹簧端子设计,使得接线快捷且压接可靠,降低故障率,部分型号支持直焊式或预接线系统,进一步简化安装过程。
使用说明:
准备工作:在开始接线前,确保工作区域安全,阅读并理解产品手册中的安装和安全指导。
安装定位:根据控制柜或面板的设计图纸,确定B5LA HENF327886R0001模块的正确安装位置,使用标准配件将其固定在预定位置。
接线操作:根据接线图,将对应的导线插入端子孔中,使用螺丝刀紧固或利用弹簧端子自动夹紧,确保每根导线连接牢固,遵循颜色编码和标记规则。
检查与测试:接线完成后,进行初步的视觉检查,确认无误后,可使用万用表等工具进行电气测试,检查是否有短路、断路或其他异常情况。
系统集成:将模块与系统中的其他组件相连,进行整体功能测试,确保所有电气连接和信号传输正常。

维护保养:定期检查端子模块的连接状态,清理灰尘,确保电气接触良好,必要时进行紧固或更换损坏的部件。

Features:

Widely applicable fields: widely used in industrial control systems, power systems, automation equipment and other fields, suitable for electrical connection situations that require high reliability and stability.

Modular design: Adopting a full range of modular structures, it facilitates standardized installation and maintenance of wiring accessories inside the control cabinet, and can quickly adapt to different system configuration requirements.

Multiple Terminal Numbers: Provides multiple terminal positions, suitable for interconnection of a large number of wires, suitable for complex electrical wiring layouts, and supports multiple arrangement methods such as single-layer and double-layer.

Standardization and Compatibility: Installation dimensions that comply with industry standards, transparent component layout, clear indications, easy identification and operation, improving system integration compatibility.

Reliability and Security: The design considers high reliability to ensure long-term stable operation in industrial environments, and may have anti misinsertion design to prevent incorrect connections and improve system security.

Convenient wiring: Screw fastening or spring terminal design may be used to make wiring quick and reliable, reducing the failure rate. Some models support direct welding or pre wiring systems, further simplifying the installation process.

Instructions for use:

Preparation: Before starting the wiring, ensure the safety of the work area and read and understand the installation and safety instructions in the product manual.

Installation positioning: Based on the design drawings of the control cabinet or panel, determine the correct installation position of the B5LA HENF327886R0001 module and fix it in the predetermined position using standard accessories.

Wiring operation: According to the wiring diagram, insert the corresponding wire into the terminal hole, tighten it with a screwdriver or automatically clamp it with a spring terminal to ensure that each wire is firmly connected, following the color coding and marking rules.

Inspection and testing: After the wiring is completed, a preliminary visual inspection is carried out. After confirming that there are no errors, tools such as a multimeter can be used for electrical testing to check for short circuits, open circuits, or other abnormal situations.

System integration: Connect modules to other components in the system, conduct overall functional testing, and ensure that all electrical connections and signal transmission are normal.

Maintenance: Regularly check the connection status of the terminal module, clean dust, ensure good electrical contact, and tighten or replace damaged components if necessary.
