P7LA HNEF105323R0002直源电流导入模块

发布时间:2024-05-31人气:
  • P7LA HNEF105323R0002直源电流导入模块
  • P7LA HNEF105323R0002直源电流导入模块
  • P7LA HNEF105323R0002直源电流导入模块
  • P7LA HNEF105323R0002直源电流导入模块
  • P7LA HNEF105323R0002直源电流导入模块

P7LA HNEF105323R0002直流电源导入模块是一种专为系统设计的电子组件,旨在将直流电源有效地引入并管理到电路或设备中。

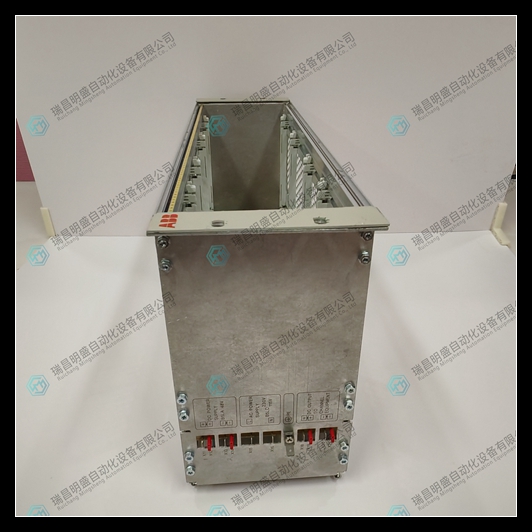

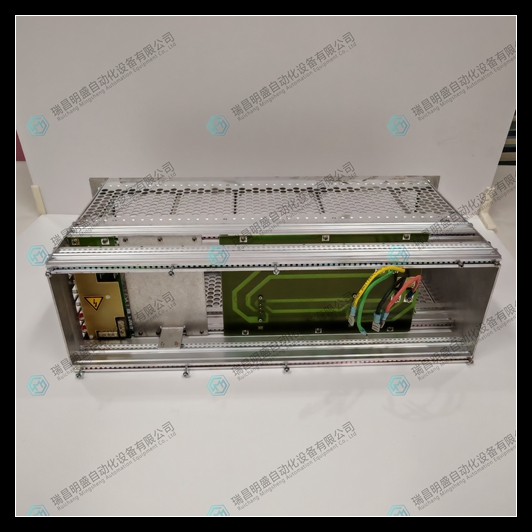

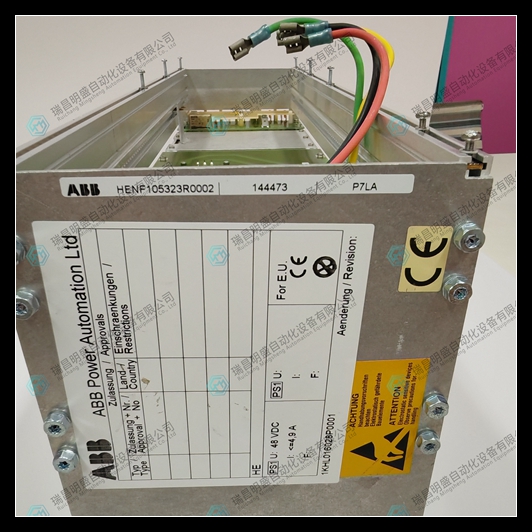

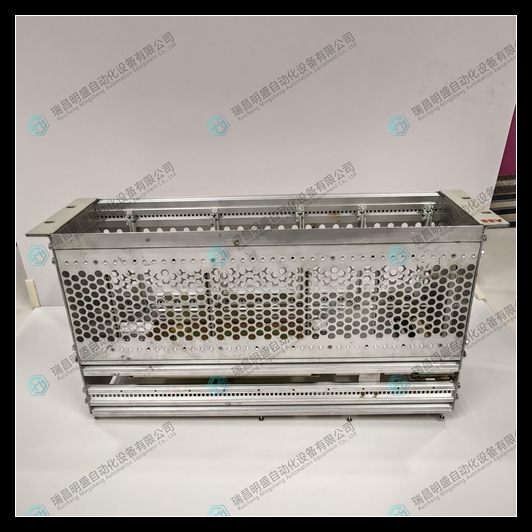

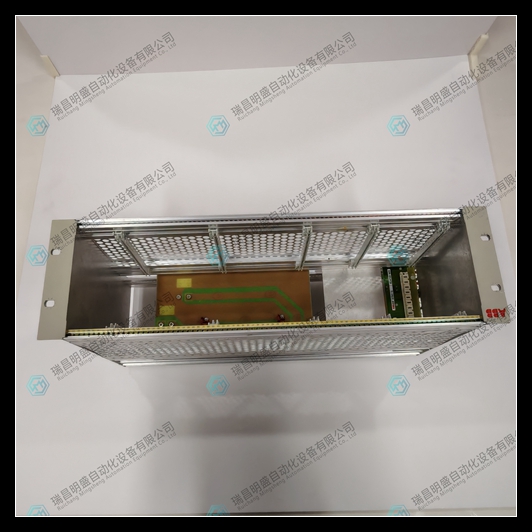

P7LA HNEF105323R0002直流电源导入模块产品图片展示

P7LA HNEF105323R0002.jpg

P7LA HNEF105323R0002直流电源导入模块实物视频展示

P7LA HNEF105323R0002直流电源导入模块特点和使用说明

特点:

直流电源输入:该模块设计用于接受直流电源输入,意味着它可以与各种直流电源源集成,如电池、直流发电机或直流电源供应器,为后续电路或系统提供稳定的直流电输入。
系统兼容性:适用于多种电子系统和设备,特别是那些需要特定直流电压等级的场合,能够为系统提供可靠的能量来源。
专业设计:模块可能具备过压、过流保护功能,确保在异常情况下系统安全,减少因电源问题导致的设备损坏风险。
高效转换与稳定输出:虽然具体效率未给出,这类模块通常设计有高效率的转换电路,能保持输出电压的稳定,即使在输入电压波动时也能确保负载得到连续、可靠的电力供应。
安装便捷:通常设计有易于安装的特性,比如标准的安装孔位、清晰的接线标识等,便于集成到现有系统中。
使用说明:
安装前检查:在安装前,确认模块的输入电压范围与系统需求相匹配,检查模块无物理损伤,了解其额定电流和电压参数。
接线:根据模块的接线图,正确连接直流电源正负极至模块的输入端,确保接线牢固且极性正确,避免短路。
固定与通风:将模块固定在设备内部或机架上,确保周围有足够的空间以利于散热,避免热积累影响性能和寿命。
系统集成:将模块的输出连接到系统需要直流电源的部分,确保所有电气连接符合安全规范。
功能测试:在首次使用或系统集成后,进行功能测试,检查模块能否正常工作,输出电压是否稳定,系统运行是否符合预期。
日常维护:定期检查模块工作状态,包括输入电压、输出电压的稳定性,以及模块的温度和清洁度,确保长期稳定运行。

Features:

DC power input: This module is designed to accept DC power input, meaning it can be integrated with various DC power sources, such as batteries, DC generators, or DC power supplies, to provide stable DC power input for subsequent circuits or systems.

System compatibility: Suitable for various electronic systems and devices, especially those that require specific DC voltage levels, it can provide a reliable energy source for the system.

Professional design: The module may have overvoltage and overcurrent protection functions to ensure system safety in abnormal situations and reduce the risk of equipment damage caused by power supply issues.

Efficient conversion and stable output: Although specific efficiency is not provided, these modules are usually designed with high-efficiency conversion circuits that can maintain stable output voltage, ensuring continuous and reliable power supply to the load even in the event of input voltage fluctuations.

Easy installation: Usually designed with features that are easy to install, such as standard installation holes, clear wiring markings, etc., making it easy to integrate into existing systems.

Instructions for use:

Pre installation inspection: Before installation, confirm that the input voltage range of the module matches the system requirements, check that the module has no physical damage, and understand its rated current and voltage parameters.

Wiring: According to the wiring diagram of the module, correctly connect the positive and negative poles of the DC power supply to the input terminals of the module, ensuring that the wiring is firm and the polarity is correct, and avoiding short circuits.

Fixation and ventilation: Fix the module inside the equipment or on the rack to ensure sufficient space around for heat dissipation and avoid heat accumulation affecting performance and lifespan.

System integration: Connect the output of the module to the parts of the system that require DC power, ensuring that all electrical connections comply with safety regulations.

Functional testing: After the first use or system integration, perform functional testing to check whether the module can function properly, whether the output voltage is stable, and whether the system operates as expected.

Daily maintenance: Regularly check the working status of the module, including the stability of input voltage and output voltage, as well as the temperature and cleanliness of the module, to ensure long-term stable operation.
