TB840A 3BSE037760R1模块

发布时间:2024-06-04人气:
  • TB840A 3BSE037760R1模块
  • TB840A 3BSE037760R1模块
  • TB840A 3BSE037760R1模块
  • TB840A 3BSE037760R1模块

TB840A 3BSE037760R1模块是ABB公司生产的一种ModuleBus光纤接口模块,主要应用于工业自动化领域,特别是与S800 I/O系统配合使用,以实现高级的控制和监控功能。

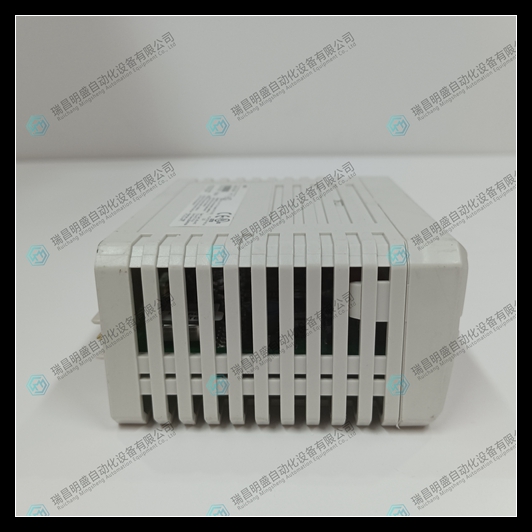

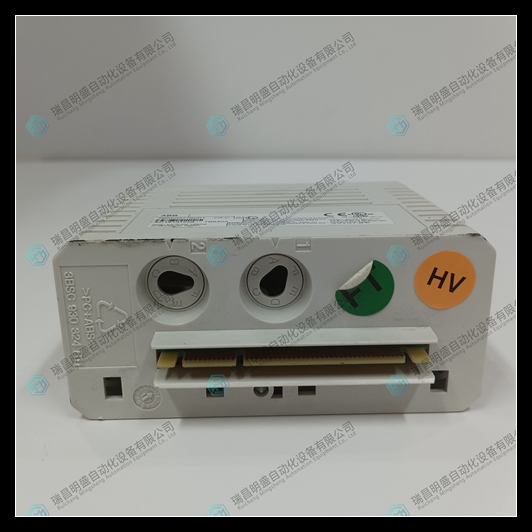

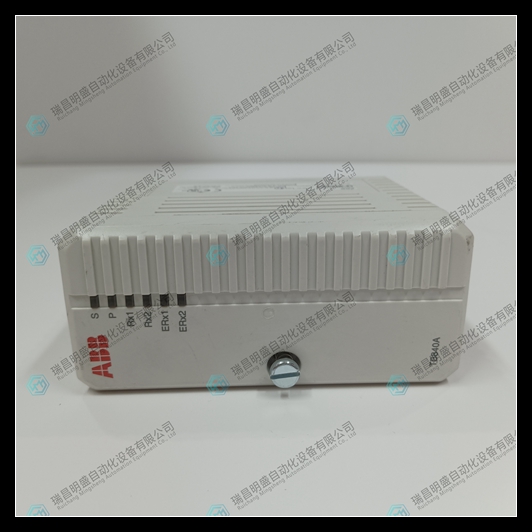

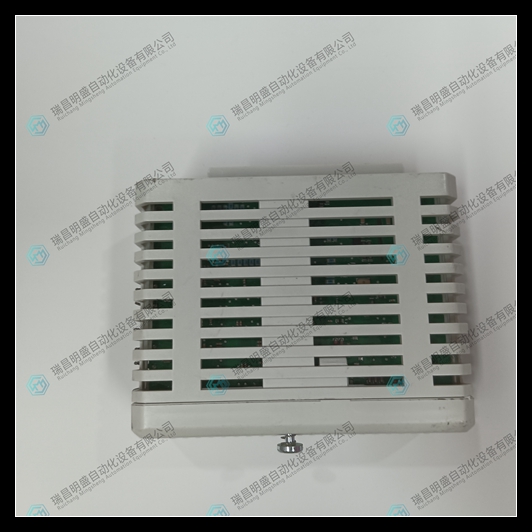

TB840A 3BSE037760R1模块产品图片展示

ABB TB840A 3BSE037760R1  (1).jpg

TB840A 3BSE037760R1模块实物视频展示

TB840A 3BSE037760R1模块产品特点和注意事项

特点:

光纤接口:采用光纤通信技术,提供高速、长距离、抗干扰的数据传输能力,适用于恶劣工业环境。
ModuleBus兼容性:符合ABB ModuleBus标准,能够无缝集成到ABB的控制系统中,支持冗余配置,增强系统可靠性。
信号配置灵活性:电流输出的出厂设置为4-20毫安,且信号模式可配置为“主动”或“被动”,提高了系统设计的灵活性。
高传输速率:支持高达10 Mbps的传输速率,保证了控制信号的快速响应和数据传输的高效性。
原装供应:作为ABB原厂产品,确保了产品的质量和兼容性,适合对系统稳定性和可靠性有高要求的应用场景。
广泛应用:适用于冶金、石油化工、造纸印刷、机械制造等多种工业领域,支持多种自动化设备的连接和控制。
注意事项:
安装环境:确保安装环境符合模块的工作温度、湿度要求,避免极端环境对模块性能的影响。
光纤连接:正确选择单模或多模光纤类型,并按照规范进行光纤接头的清洁和连接,防止信号衰减和故障。
电源要求:确认供电电压和电流满足模块需求,避免电源波动对模块工作稳定性的影响。
模块配置:在系统集成时,根据实际需求正确配置信号模式(主动/被动)和其他参数,避免通讯错误。
静电防护:操作和安装时采取必要的静电防护措施,避免静电放电损坏模块内部电路。
系统兼容性:确认该模块与现有控制系统(如PLC、DCS)的软件版本兼容,避免通讯不畅或功能受限。
维护与检查:定期检查模块的运行状态和光纤连接的完整性,及时发现并解决潜在问题,确保系统稳定运行。

Features:

Fiber optic interface: Using fiber optic communication technology, it provides high-speed, long-distance, and anti-interference data transmission capabilities, suitable for harsh industrial environments.

ModuleBus compatibility: Complies with ABB ModuleBus standards, seamlessly integrates into ABB's control system, supports redundant configuration, and enhances system reliability.

Signal configuration flexibility: The factory setting for current output is 4-20mA, and the signal mode can be configured as "active" or "passive", improving the flexibility of system design.

High transmission rate: Supports a transmission rate of up to 10 Mbps, ensuring fast response of control signals and efficient data transmission.

Original supply: As an ABB original product, it ensures the quality and compatibility of the product, suitable for application scenarios with high requirements for system stability and reliability.

Widely used: Suitable for various industrial fields such as metallurgy, petrochemicals, papermaking and printing, mechanical manufacturing, etc., supporting the connection and control of various automation equipment.

Notes:

Installation environment: Ensure that the installation environment meets the operating temperature and humidity requirements of the module, and avoid the impact of extreme environments on module performance.

Fiber optic connection: Choose the correct type of single-mode or multimode fiber optic and clean and connect the fiber optic joints according to specifications to prevent signal attenuation and faults.

Power requirements: Confirm that the power supply voltage and current meet the module's requirements to avoid the impact of power fluctuations on the stability of the module's operation.

Module configuration: During system integration, correctly configure signal modes (active/passive) and other parameters according to actual needs to avoid communication errors.

Electrostatic protection: Necessary electrostatic protection measures should be taken during operation and installation to avoid damage to the internal circuits of the module caused by electrostatic discharge.

System compatibility: Confirm that the module is compatible with the software version of existing control systems (such as PLC, DCS) to avoid communication barriers or limited functionality.

Maintenance and inspection: Regularly check the operational status of modules and the integrity of fiber optic connections, promptly identify and solve potential problems, and ensure stable system operation.
