LD800HSE 3BDH000320R02 连接模块

LD800HSE 3BDH000320R02连接模块是ABB公司生产的一种专门用于分布式控制系统中的通信和控制模块。这个模块扮演着H1现场总线和HSE（High Speed Ethernet）子网之间的网关角色，主要用于工业自动化和控制应用中。

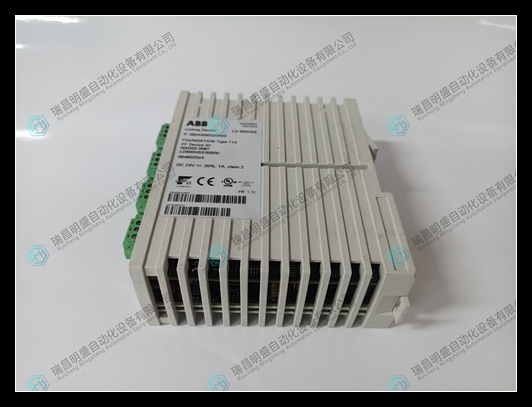

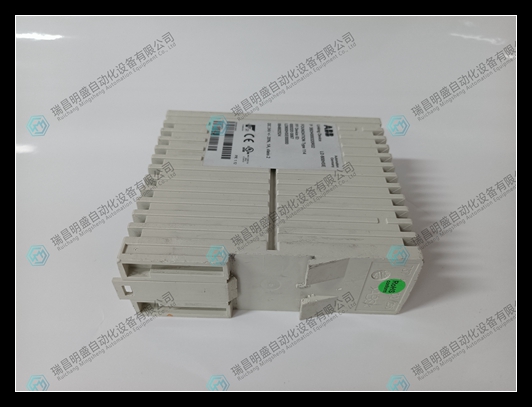

LD800HSE 3BDH000320R02连接模块产品图片展示

LD800HSE 3BDH000320R02连接模块实物视频展示

LD800HSE 3BDH000320R02连接模块特点和注意事项

特点：

Features:

Distributed Control System Center Module: LD800HSE 3BDH000320R02, as part of the distributed control system, is responsible for managing and coordinating various nodes and equipment within the system.

HSE subnet connection: As a gateway between on-site equipment on the H1 link and the HSE subnet, it can republish process data from H1 to HSE and in the opposite direction.

Dual CPU Full Digital Control: Adopting a 32-bit dual CPU for full digital control, it is particularly suitable for advanced servo control of motors, with high-speed data processing capabilities and intelligent control technology.

Analog and digital input/output: Based on different descriptions, the module can provide analog input, digital input (such as 8-channel), and output functions, indicating its extensive I/O processing capabilities.

Structured programming: The lack of specific jump instructions in the design encourages users to apply structured programming, reducing error probability and improving code clarity.

TML program support: Structured charts can be converted into TML (Triq Machine Language) programs, which means it has good compatibility with ABB's TRICONEX and other systems.

Notes:

Environmental adaptability: Ensure that the module is installed in an environment that meets its operating temperature and humidity requirements, avoiding excessive temperature changes, humidity, dust, and corrosive gases.

Electrical connection: Properly perform electrical connections to ensure that all wiring is carried out according to the manufacturer's instructions to prevent electrical faults or safety hazards.

Maintenance and updates: Regular maintenance checks are conducted, including cleaning and checking the physical condition of modules. At the same time, pay attention to the manufacturer's update notifications to ensure that the latest firmware or software version is being used.

Programming and Configuration: Use structured programming methods for module configuration, following ABB's programming guidelines and recommended practices to ensure code accuracy and efficiency.

Safety regulations: Follow all safety regulations during installation, configuration, and maintenance, including but not limited to electrical safety, anti-static measures, and correct operating procedures.

Professional training: Ensure that operation and maintenance personnel receive appropriate training to understand the functions, limitations, and best practices of the modules.
