3BSE008538R1 模块总线终端器

发布时间:2024-06-07人气:
  • 3BSE008538R1 模块总线终端器
  • 3BSE008538R1 模块总线终端器
  • 3BSE008538R1 模块总线终端器
  • 3BSE008538R1 模块总线终端器

3BSE008538R1 是 ABB 生产的一种模块总线终端器(Termination Module),用于ABB的某些自动化和控制系统中,例如S800 I/O系统。总线终端器在工业网络中起着重要的作用,尤其是在总线结构的网络中,它们用来吸收信号反射,确保数据传输的完整性。

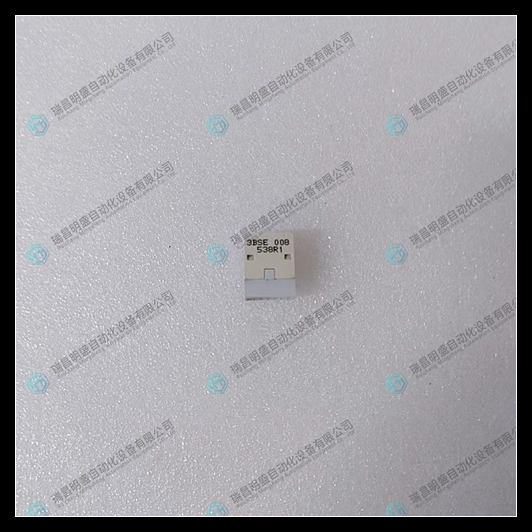

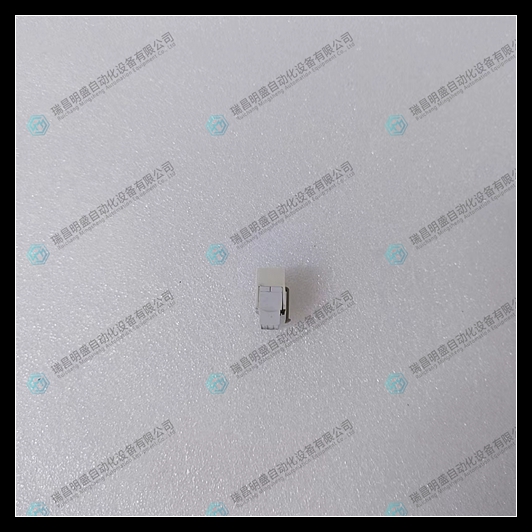

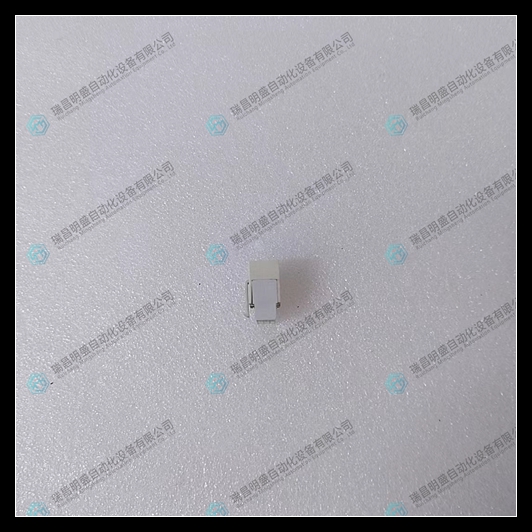

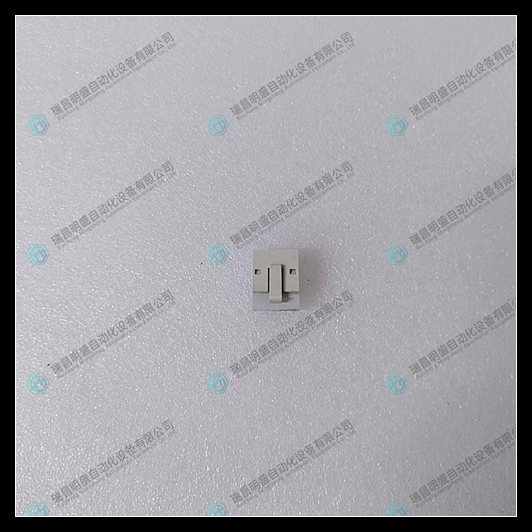

3BSE008538R1 模块总线终端器产品图片展示


3BSE008538R1 模块总线终端器实物视频展示

3BSE008538R1 模块总线终端器特点和注意事项

特点:

信号终止:在总线网络的末端放置终端器,它可以吸收信号,防止信号在电缆末端反射,从而保持信号的完整性和网络的稳定性。
电阻匹配:终端器通常包含一个120欧姆的终端电阻,这是为了匹配总线电缆的特性阻抗,减少信号反射和失真。
即插即用:设计为即插即用,便于在网络中快速部署和维护。
可靠性:高质量的制造确保了长期的可靠性和稳定性,适用于工业环境下的持续运行。
适用范围:适用于ABB S800 I/O系统及其他兼容的工业总线网络,如DeviceNet或PROFIBUS。
易于维护:当需要维护或更换时,终端器可以轻松拆卸和替换,无需复杂的操作。
注意事项:
正确安装位置:确保终端器安装在总线网络的末端,否则可能会引起信号反射,影响数据传输质量。
双端网络:如果网络是双端(两端都有设备),那么每一端都需要安装一个终端器,以避免信号在中间反射。
避免短路:在不使用终端器的情况下,不要将总线网络的末端短路,这会导致信号失真和网络故障。
断电操作:在安装或更换终端器时,应先断开电源,避免电气危险。
检查兼容性:在使用前,确认终端器与您现有的总线系统兼容,避免不兼容引起的故障。
环境条件:确保终端器安装在适宜的环境条件下,避免高温、潮湿或腐蚀性气体的影响。
定期检查:定期检查终端器的连接和状态,确保其正常工作,避免网络中断。
技术文档:在安装和使用过程中,遵循ABB提供的技术文档和操作指南,以确保正确的安装和维护。
技术支持:遇到任何问题时,应及时联系ABB的技术支持,获取专业的帮助和指导。

Features:

Signal termination: Place a terminator at the end of the bus network, which can absorb signals and prevent them from reflecting at the end of the cable, thereby maintaining signal integrity and network stability.

Resistance matching: Terminators typically include a 120 ohm terminal resistor to match the characteristic impedance of the bus cable, reducing signal reflection and distortion.

Plug and Play: Designed for quick deployment and maintenance in the network.

Reliability: High quality manufacturing ensures long-term reliability and stability, suitable for continuous operation in industrial environments.

Scope of application: Suitable for ABB S800 I/O systems and other compatible industrial bus networks, such as DeviceNet or PROFIBUS.

Easy to maintain: When maintenance or replacement is needed, the terminal can be easily disassembled and replaced without the need for complex operations.

Notes:

Correct installation location: Ensure that the terminal is installed at the end of the bus network, otherwise it may cause signal reflection and affect the quality of data transmission.

Dual ended network: If the network is dual ended (with devices on both ends), a terminal needs to be installed on each end to avoid signal reflection in the middle.

Avoid short circuits: Do not short circuit the ends of the bus network without using a terminal, as this can cause signal distortion and network failures.

Power off operation: When installing or replacing the terminal, the power should be disconnected first to avoid electrical hazards.

Check compatibility: Before use, confirm that the terminal is compatible with your existing bus system to avoid malfunctions caused by incompatibility.

Environmental conditions: Ensure that the terminal is installed under suitable environmental conditions, avoiding the influence of high temperature, humidity, or corrosive gases.

Regular check: Regularly check the connection and status of the terminal to ensure its normal operation and avoid network interruptions.

Technical documentation: During installation and use, follow the technical documentation and operating instructions provided by ABB to ensure proper installation and maintenance.

Technical support: When encountering any problems, you should promptly contact ABB's technical support for professional assistance and guidance.
