ABB AI610 模拟量输入模块

发布时间:2024-06-14人气:
  •  ABB AI610 模拟量输入模块
  •  ABB AI610 模拟量输入模块
  •  ABB AI610 模拟量输入模块
  •  ABB AI610 模拟量输入模块
  •  ABB AI610 模拟量输入模块

 ABB AI610 模块是一款模拟量输入模块,用于工业自动化和过程控制系统中,以采集和处理来自现场设备的模拟信号。

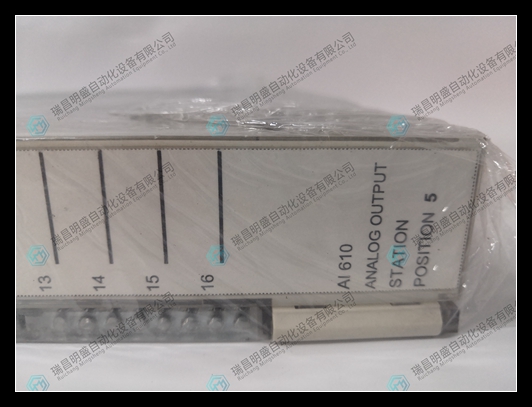

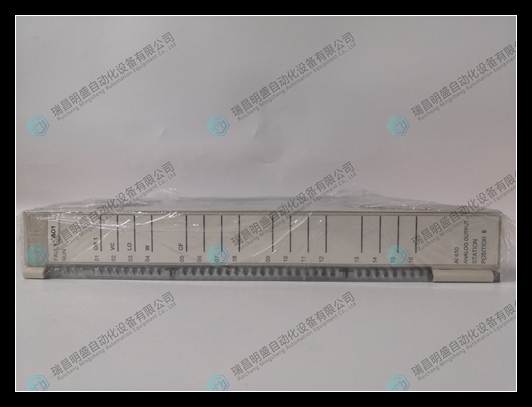

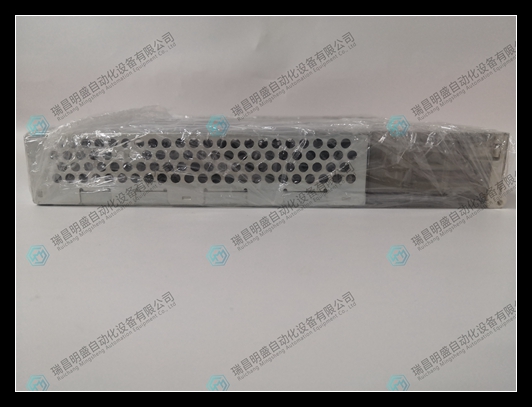

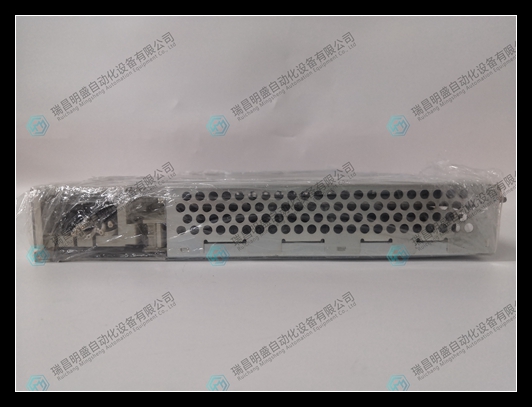

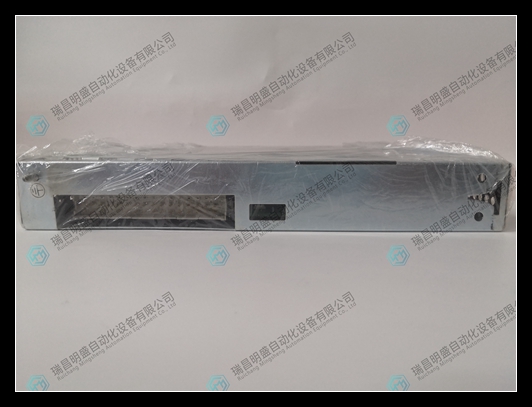

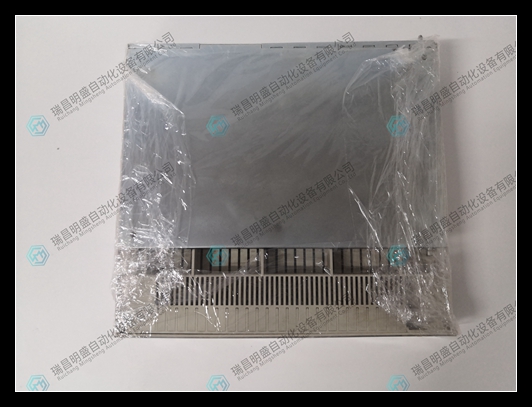

 ABB AI610 模拟量输入模块产品图片展示

ABB AI610 (7).jpg

 ABB AI610 模拟量输入模块实物视频展示

 ABB AI610 模拟量输入模块特点和注意事项

特点:
32位ARM处理器:采用先进的32位处理器,提供高速、高效的信号处理能力和高可靠性。
多种信号输入:支持多种电流信号输入,可以适配不同类型的传感器,如4-20mA电流环、0-10V电压信号等。
远程监控能力:AI610模块支持远程监控,能够通过网络连接进行数据传输和监测,便于集中管理和控制。
高精度与稳定性:模块具有高精度的信号采集能力,确保数据的准确性和稳定性。
抗干扰能力:具有较强的抗干扰能力,能够在复杂的工业环境中稳定工作。
软件模块化设计:软件采用模块化结构,便于维护和升级,有助于快速适应新的需求。
低功耗:设计考虑了低功耗特性,有助于节省能源。
8个通道:根据资料,模块可能拥有8个模拟输入通道,允许同时监测多个信号源。
分辨率:虽然具体分辨率未提及,但ABB的模拟模块通常提供高分辨率的信号采集。
注意事项:
信号类型匹配:确保现场设备的信号类型与AI610模块的输入类型相匹配,避免信号不兼容导致的错误读数。
信号范围:确认传感器的输出信号范围与模块的输入范围相符,避免超出范围导致的测量误差。
电源与接地:正确连接模块的电源和确保良好的接地,以减少电磁干扰并保护设备。
布线与隔离:合理布置信号线,使用屏蔽电缆并确保输入通道间的电气隔离,以提高信号质量和抗干扰能力。
环境条件:确保模块安装在符合其工作温度、湿度和清洁度要求的环境中,避免极端条件下的损坏。
软件配置:使用ABB提供的软件工具进行正确的模块配置,包括信号类型、量程设置等。
维护与校准:定期进行模块的维护和校准,以保持其测量精度。
安全操作:在进行任何维护或操作之前,确保断开电源,并遵循电气安全规定。
技术支持:如果遇到技术问题,应咨询ABB官方技术支持或授权服务提供商。

Features:

32-bit ARM processor: Adopting advanced 32-bit processors, it provides high-speed and efficient signal processing capabilities and high reliability.

Multiple signal inputs: Supports multiple current signal inputs and can adapt to different types of sensors, such as 4-20mA current loop, 0-10V voltage signal, etc.

Remote monitoring capability: The AI610 module supports remote monitoring and can transmit and monitor data through network connections, facilitating centralized management and control.

High precision and stability: The module has high-precision signal acquisition capabilities, ensuring the accuracy and stability of data.

Anti interference ability: It has strong anti-interference ability and can work stably in complex industrial environments.

Software modular design: The software adopts a modular structure, which is easy to maintain and upgrade, and helps to quickly adapt to new requirements.

Low power consumption: The design considers low power consumption characteristics, which helps to save energy.

8 channels: According to the data, the module may have 8 analog input channels, allowing for simultaneous monitoring of multiple signal sources.

Resolution: Although the specific resolution is not mentioned, ABB's analog modules typically provide high-resolution signal acquisition.

Notes:

Signal type matching: Ensure that the signal type of the on-site equipment matches the input type of the AI610 module to avoid incorrect readings caused by signal incompatibility.

Signal range: Confirm that the output signal range of the sensor matches the input range of the module to avoid measurement errors caused by exceeding the range.

Power supply and grounding: Connect the power supply of the module correctly and ensure good grounding to reduce electromagnetic interference and protect the equipment.

Wiring and isolation: Reasonably arrange signal lines, use shielded cables, and ensure electrical isolation between input channels to improve signal quality and anti-interference ability.

Environmental conditions: Ensure that the module is installed in an environment that meets its operating temperature, humidity, and cleanliness requirements, avoiding damage under extreme conditions.

Software configuration: Use the software tools provided by ABB for correct module configuration, including signal type, range setting, etc.

Maintenance and calibration: Regularly maintain and calibrate modules to maintain their measurement accuracy.

Safe operation: Before carrying out any maintenance or operation, make sure to disconnect the power supply and follow electrical safety regulations.

Technical support: If you encounter technical problems, you should consult ABB's official technical support or authorized service provider.
