XVC724BE101 3BHE009017R0102电路板

发布时间:2025-03-31人气:
  • XVC724BE101 3BHE009017R0102电路板
  • XVC724BE101 3BHE009017R0102电路板
  • XVC724BE101 3BHE009017R0102电路板

ABB XVC724BE101 3BHE009017R0102电路板

1.产 品 资 料 介 绍:

中文资料:

1. 核心定位

该模块是ABB ACS800/ACS880 系列变频器的核心控制板,属于 Drive Control Unit (DCU) 的组成部分,主要承担:

  • 实时电机控制算法(DTC直接转矩控制)

  • IGBT驱动信号生成

  • 系统状态监测与保护

2. 硬件架构

组件规格说明
主处理器32位DSP(TI TMS320F28335或等效) + FPGA逻辑控制器
存储器16MB Flash(固件存储) + 2MB SRAM(实时数据缓存)
通信接口- 2×RS485(Modbus RTU)
- 1×光纤接口(用于多传动同步)
- 可选PROFIBUS DP模块
ADC采样16位精度,8通道同步采样(用于电流/电压检测)
环境适应性- 工作温度:-25℃~+70℃
- 振动耐受:5g @ 10-150Hz(符合IEC 60068-2-6)

英文资料:

1. Core positioning

This module is the core control board of ABB ACS800/ACS880 series frequency converters, which is a component of the Drive Control Unit (DCU) and mainly responsible for:


Real time motor control algorithm (DTC direct torque control)


IGBT drive signal generation


System status monitoring and protection


2. Hardware architecture

Component specification description

Main processor 32-bit DSP (TI TMS320F28335 or equivalent)+FPGA logic controller

Memory 16MB Flash (firmware storage)+2MB SRAM (real-time data cache)

Communication interface -2 x RS485 (Modbus RTU)

-1 x fiber optic interface (for multi drive synchronization)

-Optional PROFIBUS DP module

ADC sampling with 16 bit precision, 8-channel synchronous sampling (for current/voltage detection)

Environmental adaptability - working temperature:- 25℃~+70℃

-Vibration tolerance: 5g @ 10-150Hz (compliant with IEC 60068-2-6)

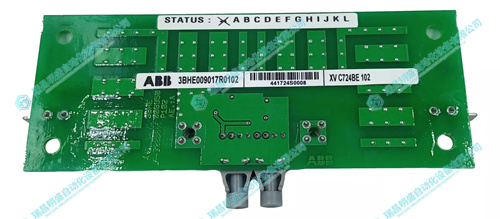

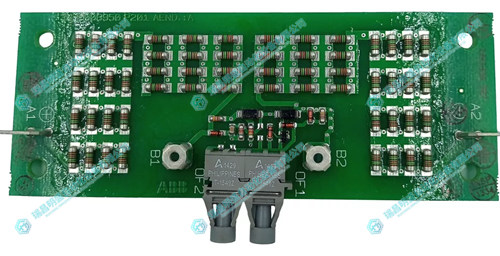

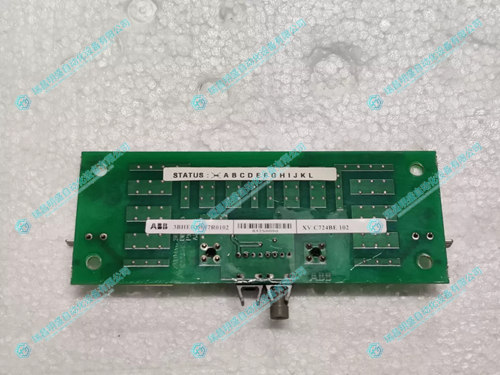

2.产      品      展      示

XVC724BE101 3BHE009017R0102.webp (1).jpg
