UFC921A101 3BHE024855R0101电路板

发布时间:2025-03-31人气:
  • UFC921A101 3BHE024855R0101电路板
  • UFC921A101 3BHE024855R0101电路板
  • UFC921A101 3BHE024855R0101电路板

ABB  UFC921A101 3BHE024855R0101电路板

1.产 品 资 料 介 绍:

中文资料:

1. 基本概述

  • 型号:UFC921A101(功能型号)

  • 订货号:3BHE024855R0101(ABB 官方物料编号)

  • 用途:工业自动化控制模块,通常用于 ABB AC 800M 或 Freelance 800F 系统,作为 I/O 模块 或 通信模块

2. 主要功能

  • 可能用于 数字量输入/输出(DI/DO) 或 模拟量信号处理(AI/AO)

  • 支持工业通信协议(如 Profibus DP、Modbus、Ethernet/IP)。

  • 适用于 DCS(分布式控制系统) 或 PLC(可编程逻辑控制) 应用。

3. 技术参数(需查手册确认)

  • 工作电压:24V DC 或 110-240V AC(取决于具体型号)

  • I/O 点数:可能为 8/16/32 通道(需查规格书)

  • 通信接口:可能支持 RS485、以太网或光纤

  • 环境适应性:工作温度通常为 -20°C ~ +60°C

4. 兼容性与替代

  • 原厂替换:建议通过 ABB 官方或授权代理商采购,确保固件兼容。

  • 替代型号:不同版本可能有微小差异(如 UFC921A102),需核对技术文档。

  • 二手/翻新市场:部分工业自动化备件供应商可能提供测试过的二手模块。

5. 常见故障与排查

  • 电源问题:检查供电是否正常(LED 状态灯是否亮起)。

  • 通信故障

    • 检查 Profibus/Modbus 接线是否正确。

    • 确认 DIP 开关或跳线设置是否匹配网络配置。

  • I/O 信号异常

    • 检查端子接线是否松动或短路。

    • 使用万用表或示波器检测信号是否正常。

英文资料:

1. Basic Overview

Model: UFC921A101 (functional model)


Order number: 3BHE024855R0101 (ABB official material number)


Usage: Industrial automation control module, typically used in ABB AC 800M or Freelance 800F systems as an I/O module or communication module.


2. Main functions

May be used for digital input/output (DI/DO) or analog signal processing (AI/AO).


Supports industrial communication protocols such as Profibus DP, Modbus, Ethernet/IP.


Suitable for DCS (Distributed Control System) or PLC (Programmable Logic Control) applications.


3. Technical parameters (to be confirmed in the manual)

Working voltage: 24V DC or 110-240V AC (depending on the specific model)


I/O points: may be 8/16/32 channels (please refer to the specification sheet)


Communication interface: may support RS485, Ethernet, or fiber optic


Environmental adaptability: The working temperature is usually between -20 ° C and+60 ° C


4. Compatibility and Substitution

Original factory replacement: It is recommended to purchase through ABB official or authorized agents to ensure firmware compatibility.


Alternative models: There may be slight differences between different versions (such as UFC921A102), and technical documentation needs to be checked.


Second hand/refurbished market: Some industrial automation spare parts suppliers may offer tested second-hand modules.


5. Common faults and troubleshooting

Power issue: Check if the power supply is working properly (if the LED status light is on).


Communication malfunction:


Check if the Profibus/Modbus wiring is correct.


Confirm whether the DIP switch or jumper settings match the network configuration.


I/O signal abnormality:


Check if the terminal wiring is loose or short circuited.


Use a multimeter or oscilloscope to check if the signal is normal.

2.产      品      展      示

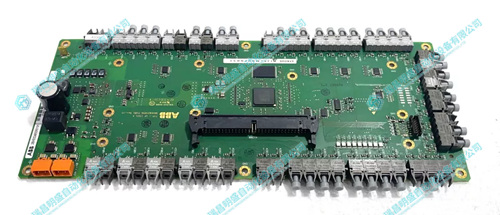

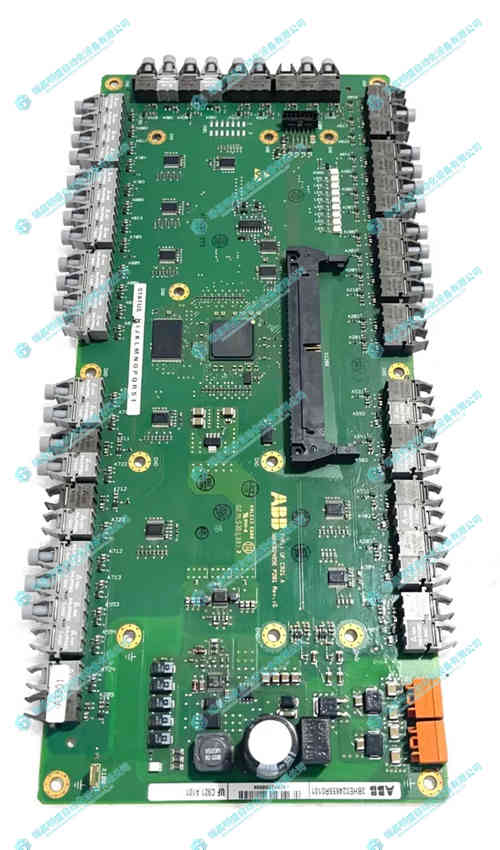

UFC921A101 3BHE024855R0101.webp.jpg
