BENTLY 3500/22-01-01-00 瞬态数据接口

BENTLY  3500/22-01-01-00 瞬态数据接口   是一款功能强大、性能稳定的设备，为工业应用提供了高效的数据传输和收集能力。通过结合机架接口模块的功能和通信处理器的数据收集能力，它为用户提供了全面的设备监测和故障诊断解决方案。

BENTLY  3500/22-01-01-00 瞬态数据接口  详情介绍：

Bently 3500/22-01-01-00瞬态数据接口（TDI）是Bently内华达（Bently Nevada）公司3500监测系统中的一个关键组件，它充当了3500监测系统与兼容软件之间的桥梁。该瞬态数据接口具有多种重要特性和功能，为工业应用提供了可靠且高效的数据传输和收集能力。

首先，Bently 3500/22-01-01-00 TDI结合了3500/20机架接口模块（RIM）的功能和通信处理器（如TDXnet）的数据收集能力。这使得它能够连续收集稳态和瞬态波形数据，并通过以太网链路将这些数据传送到主机软件，如系统1*状态监测和诊断软件以及3500系统配置软件。这种能力使得用户可以实时了解设备的运行状态，及时发现潜在问题，并采取相应的维护措施。

其次，Bently 3500/22-01-01-00 TDI具有静态数据采集功能，这是其标准配置。然而，通过使用可选的通道使能盘，TDI也能捕获动态和高分辨率瞬态数据。这使得用户可以更全面地了解设备的运行状况，包括在瞬态事件（如启动、停机或负载变化）期间的行为。

此外，Bently 3500/22-01-01-00 TDI在3500机架内集成了通信处理器功能，从而简化了系统架构并降低了成本。每个3500机架都需要一个TDI或RIM，并且它始终占用机架的1号插槽（靠近电源）。这种设计确保了数据的可靠传输和系统的稳定运行。

在兼容性方面，Bently 3500/22-01-01-00 TDI与多种设备和软件兼容，使得用户可以轻松地将其集成到现有的监测系统中。无论是与M系列显示器（如3500/40M和3500/42M）一起使用，还是与其他Bently Nevada的产品和解决方案相结合，它都能提供出色的性能和可靠性。

最后，Bently 3500/22-01-01-00 TDI还具有其他一些特性，如USB-B前面板、10Base-T或100Base-TX以太网自适应功能、100Base-FX光纤以太网接口以及机架复位按钮等。这些特性进一步增强了其灵活性和易用性，使得用户可以更方便地管理和维护监测系统。

总之，Bently 3500/22-01-01-00瞬态数据接口是一款功能强大、性能稳定的设备，为工业应用提供了高效的数据传输和收集能力。通过结合机架接口模块的功能和通信处理器的数据收集能力，它为用户提供了全面的设备监测和故障诊断解决方案。

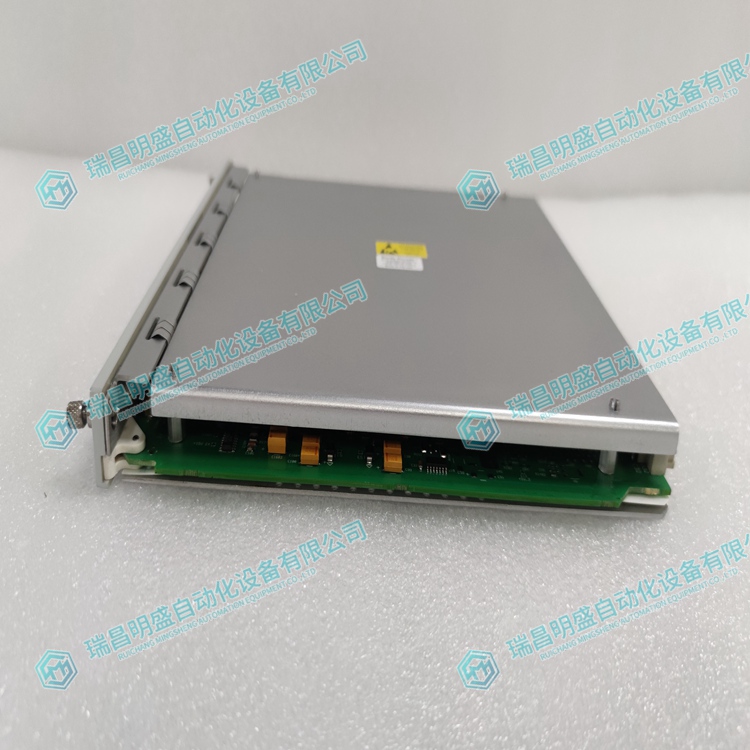

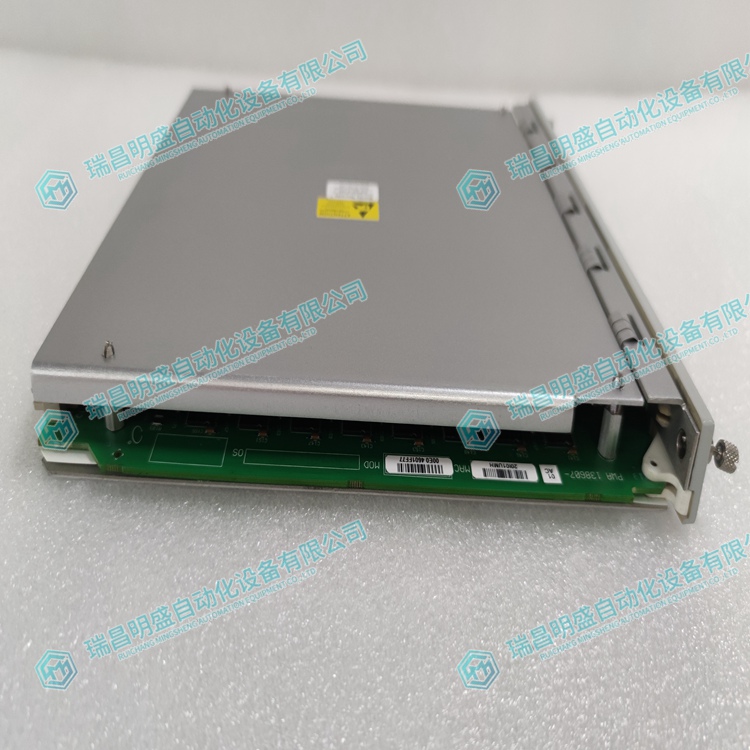

BENTLY  3500/22-01-01-00 瞬态数据接口   实物图片：

BENTLY  3500/22-01-01-00 瞬态数据接口  产品视频：

BENTLY 3500/22-01-01-00 Transient Data Interface Details Introduction:

The Bently 3500/22-01-01-00 Transient Data Interface (TDI) is a critical component of the Bently Nevada 3500 Monitoring System, serving as a bridge between the 3500 Monitoring System and compatible software. This transient data interface has multiple important features and functions, providing reliable and efficient data transmission and collection capabilities for industrial applications.

Firstly, the Bently 3500/22-01-01-00 TDI combines the functionality of the 3500/20 Rack Interface Module (RIM) with the data collection capabilities of communication processors such as TDXnet. This enables it to continuously collect steady-state and transient waveform data, and transmit this data to host software through Ethernet links, such as System 1 * status monitoring and diagnostic software and 3500 system configuration software. This ability enables users to have real-time understanding of the device's operating status, identify potential issues in a timely manner, and take corresponding maintenance measures.

Secondly, the Bently 3500/22-01-01-00 TDI has a static data acquisition function, which is its standard configuration. However, by using optional channel enable disks, TDI can also capture dynamic and high-resolution transient data. This allows users to have a more comprehensive understanding of the operational status of the device, including its behavior during transient events such as startup, shutdown, or load changes.

In addition, the Bently 3500/22-01-01-00 TDI integrates communication processor functionality within the 3500 rack, simplifying the system architecture and reducing costs. Each 3500 rack requires a TDI or RIM, and it always occupies slot 1 of the rack (near the power supply). This design ensures reliable data transmission and stable system operation.

In terms of compatibility, the Bently 3500/22-01-01-00 TDI is compatible with multiple devices and software, allowing users to easily integrate it into existing monitoring systems. Whether used with M-series displays such as 3500/40M and 3500/42M, or combined with other Bently Nevada products and solutions, it can provide excellent performance and reliability.

Finally, the Bently 3500/22-01-01-00 TDI also has other features such as the USB-B front panel, 10Base-T or 100Base-TX Ethernet adaptive function, 100Base-FX fiber Ethernet interface, and rack reset button. These features further enhance its flexibility and usability, making it easier for users to manage and maintain monitoring systems.

In summary, the Bently 3500/22-01-01-00 transient data interface is a powerful and stable device that provides efficient data transmission and collection capabilities for industrial applications. By combining the functions of the rack interface module with the data collection capabilities of the communication processor, it provides users with a comprehensive device monitoring and fault diagnosis solution.
