Bently 3500/42M 176449-02 轴振动模块

BENTLY   3500/42M 176449-02 轴振动模块   是一种高性能的监测设备，专为径向振动、轴向位移、偏心、REBAM和差胀测量而设计。

BENTLY   3500/42M 176449-02 轴振动模块 详情介绍：

Bently 3500/42M 176449-02轴振动模块是一种高性能的监测设备，专为径向振动、轴向位移、偏心、REBAM和差胀测量而设计。以下是关于该模块的一些主要特点和功能：

1. 多通道监测：该模块是一个可组态的4通道监测器模块，这意味着它可以同时监测多个参数，提高了测试和测量的效率。
2. 输入类型多样：除了接收电涡流传感器输入类型，该模块还可以接收速度、加速度和双探头（速度和位移）输入类型及其相关的信号调节，如滤波和积分。
3. 微分信号处理：该模块还能进行微分信号处理，从轴相对振动中提取机壳振动信号，为某些大型燃气和蒸汽轮机的轴绝对测量提供关键信息。
4. 高精度测量：模块提供了高达24位的分辨率和低噪声水平，实现精确的模拟信号测量。其优异的线性度和低漂移性能确保了宽动态范围内的准确测量结果。
5. 灵活的输入范围：Bently 3500/42M 176449-02支持多种可调的输入范围，以适应不同信号源的幅度要求，增强了测量的灵活性和准确性。
6. 内置校准功能：模块具有内置的自动校准功能，可以确保测量过程中各通道的精度和可靠性。此外，它还支持标准校准程序，进一步保证测量结果的一致性和准确性。
7. 高速数据传输：采用PXIe总线接口，该模块能够实现高速数据传输，确保采集的数据能够快速传输到计算机进行处理和分析。

综上所述，Bently 3500/42M 176449-02轴振动模块凭借其高性能、高精度和灵活性，在大型燃气和蒸汽轮机的轴振动监测中发挥着关键作用。

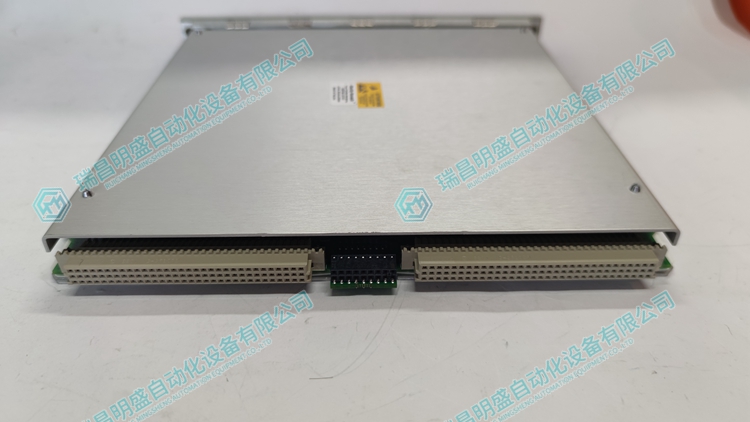

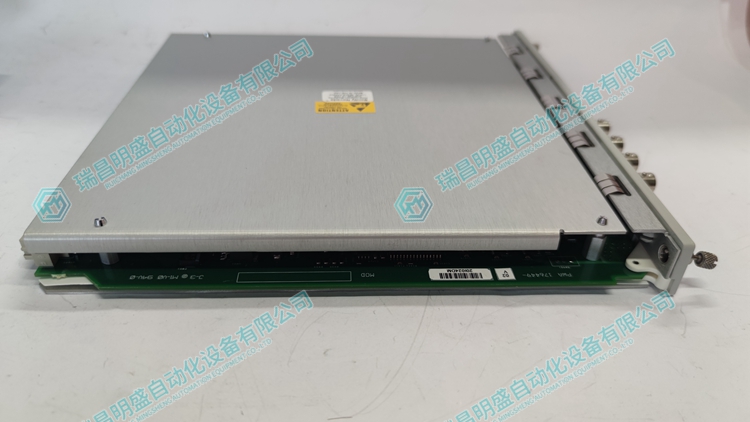

BENTLY   3500/42M 176449-02 轴振动模块   实物图片：

BENTLY   3500/42M 176449-02 轴振动模块   产品视频：

BENTLY 3500/42M 176449-02 Axis Vibration Module Details Introduction:

The Bently 3500/42M 176449-02 shaft vibration module is a high-performance monitoring device designed specifically for radial vibration, axial displacement, eccentricity, REBAM, and differential expansion measurement. Here are some of the main features and functions of this module:

Multi channel monitoring: This module is a configurable 4-channel monitoring module, which means it can simultaneously monitor multiple parameters, improving the efficiency of testing and measurement.

Diverse input types: In addition to receiving eddy current sensor input types, this module can also receive velocity, acceleration, and dual probe (velocity and displacement) input types and their related signal adjustments, such as filtering and integration.

Differential signal processing: This module can also perform differential signal processing, extracting casing vibration signals from relative shaft vibration, and providing key information for absolute shaft measurement of certain large gas and steam turbines.

High precision measurement: The module provides up to 24 bit resolution and low noise levels, enabling precise analog signal measurement. Its excellent linearity and low drift performance ensure accurate measurement results over a wide dynamic range.

Flexible input range: Bently 3500/42M 176449-02 supports multiple adjustable input ranges to adapt to the amplitude requirements of different signal sources, enhancing measurement flexibility and accuracy.

Built in calibration function: The module has a built-in automatic calibration function, which can ensure the accuracy and reliability of each channel during the measurement process. In addition, it also supports standard calibration procedures to further ensure the consistency and accuracy of measurement results.

High speed data transmission: Using PXIE bus interface, this module can achieve high-speed data transmission, ensuring that the collected data can be quickly transmitted to the computer for processing and analysis.

In summary, the Bently 3500/42M 176449-02 shaft vibration module plays a crucial role in shaft vibration monitoring of large gas and steam turbines due to its high performance, precision, and flexibility.
