GE 469-P1-HI-A20-T 电动机保护继电器

GE   469-P1-HI-A20-T 电动机保护继电器    是一款由通用电气（GE）开发的工业控制设备，属于VMIC/GE Fanuc板卡系列。这个系列专为工业生产线上的多种应用而设计，如CPU管理和输入输出通信。VMIVME-2540是该系列中的特定模块，具备作为智能计数器控制器的功能。

GE   469-P1-HI-A20-T 电动机保护继电器   详情介绍：

1. GE 469-P1-HI-A20-T 电动机保护继电器是一款专为电动机保护设计的设备。它主要用于监测和控制电动机的运行状态，提供过载、短路、接地故障等保护功能，确保电动机的安全和可靠运行。

2. 主要功能

3. 过载保护：当电动机运行超过其额定负载时，继电器会检测到电流的增加，并在适当的时候切断电源，以防止电动机过热或损坏。
4. 短路保护：如果电动机电路中出现短路，继电器会迅速响应，切断电源，以防止电流过大对电动机造成损害。
5. 接地故障保护：当电动机发生接地故障时，即电动机的绝缘性能下降导致电流泄漏到地线上，继电器会检测到这种异常并切断电源。
6. 相序保护：有些电动机需要特定的相序来正确运行。如果相序错误，继电器会切断电源，防止电动机启动或运行。
7. 远程控制和监控：继电器通常配备有远程控制接口，允许操作人员远程监控和控制电动机的运行状态。

8. 应用领域

9. GE 469-P1-HI-A20-T 电动机保护继电器广泛应用于各种需要保护电动机免受损坏的场合，如制造业、工业生产线、建筑设备、泵和风机等。它可以帮助提高设备的可靠性和使用寿命，降低维护成本，并保障生产过程的连续性和安全性。

10. 特点

11. 高精度：继电器能够精确监测电流和电压的变化，确保及时响应故障。
12. 快速响应：在检测到故障时，继电器能够迅速切断电源，减少故障对电动机的损害。
13. 易于配置：继电器通常具有友好的用户界面和配置软件，方便用户进行参数设置和故障排查。
14. 高可靠性：继电器经过严格的质量控制和环境测试，能够在恶劣的工业环境中稳定运行。

15. 总之，GE 469-P1-HI-A20-T 电动机保护继电器是一款功能强大、可靠性高的电动机保护设备，为电动机的安全运行提供了有效的保障。

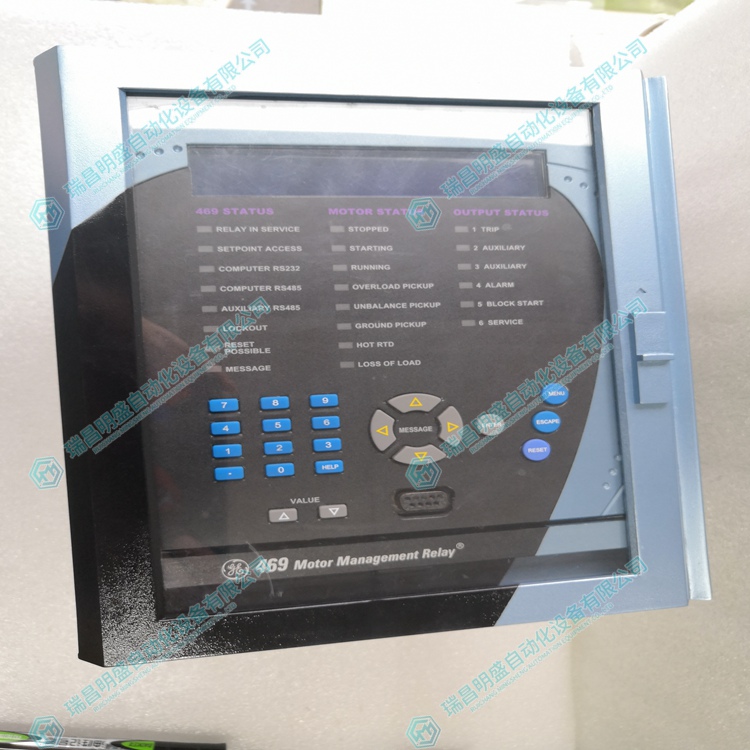

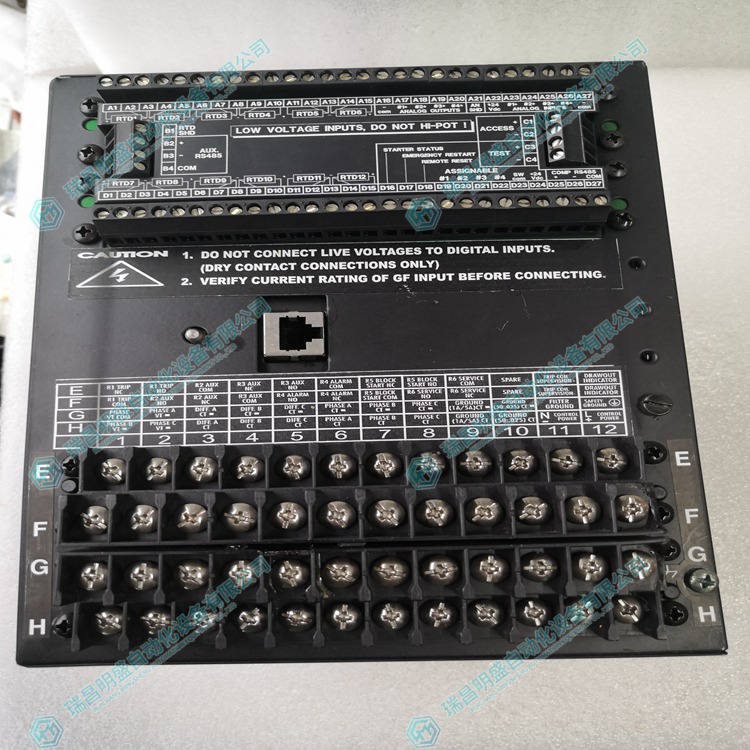

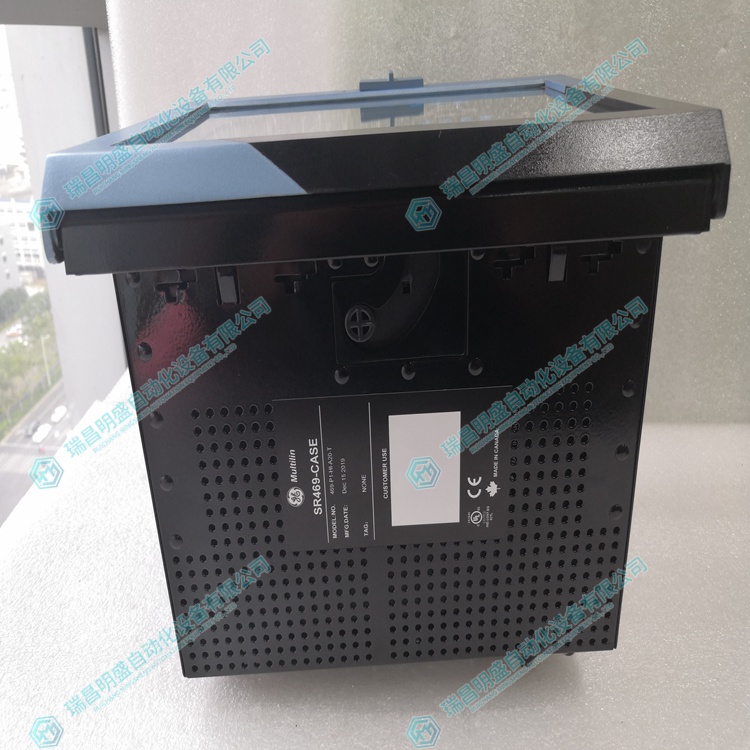

GE   469-P1-HI-A20-T 电动机保护继电器   实物图片：

GE   469-P1-HI-A20-T 电动机保护继电器  实物视频

GE 469-P1-HI-A20-T Motor Protection Relay Details Introduction:

The GE 469-P1-HI-A20-T motor protection relay is a device designed specifically for motor protection. It is mainly used to monitor and control the operating status of the motor, provide protection functions such as overload, short circuit, and ground fault, and ensure the safe and reliable operation of the motor.

major function

Overload protection: When the motor exceeds its rated load, the relay will detect an increase in current and cut off the power supply at an appropriate time to prevent the motor from overheating or damage.

Short circuit protection: If a short circuit occurs in the motor circuit, the relay will quickly respond and cut off the power to prevent excessive current from causing damage to the motor.

Ground fault protection: When a ground fault occurs in the motor, that is, the insulation performance of the motor decreases, resulting in current leakage to the ground wire, the relay will detect this abnormality and cut off the power supply.

Phase sequence protection: Some motors require a specific phase sequence to operate correctly. If the phase sequence is incorrect, the relay will cut off the power supply to prevent the motor from starting or running.

Remote control and monitoring: Relays are usually equipped with remote control interfaces, allowing operators to remotely monitor and control the operation status of the motor.

application area

The GE 469-P1-HI-A20-T motor protection relay is widely used in various situations that require the protection of motors from damage, such as manufacturing, industrial production lines, building equipment, pumps, and fans. It can help improve the reliability and service life of equipment, reduce maintenance costs, and ensure the continuity and safety of the production process.

characteristic

High precision: The relay can accurately monitor changes in current and voltage, ensuring timely response to faults.

Quick response: When a fault is detected, the relay can quickly cut off the power supply, reducing the damage of the fault to the motor.

Easy to configure: Relays typically have a user-friendly interface and configuration software, making it convenient for users to set parameters and troubleshoot faults.

High reliability: The relay has undergone strict quality control and environmental testing, and can operate stably in harsh industrial environments.

In summary, the GE 469-P1-HI-A20-T motor protection relay is a powerful and highly reliable motor protection device, providing effective protection for the safe operation of the motor.
