VMIVME5576 反射式存储板

发布时间:2024-06-03人气:
  • VMIVME5576 反射式存储板
  • VMIVME5576 反射式存储板
  • VMIVME5576 反射式存储板
  • VMIVME5576 反射式存储板

VMIVME5576是一款反射式存储板,主要用于构建高速、确定性的数据传输网络,尤其适用于实时性要求极高的应用场合。

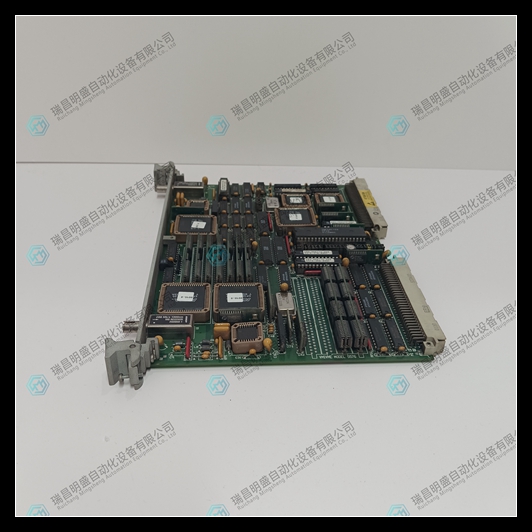

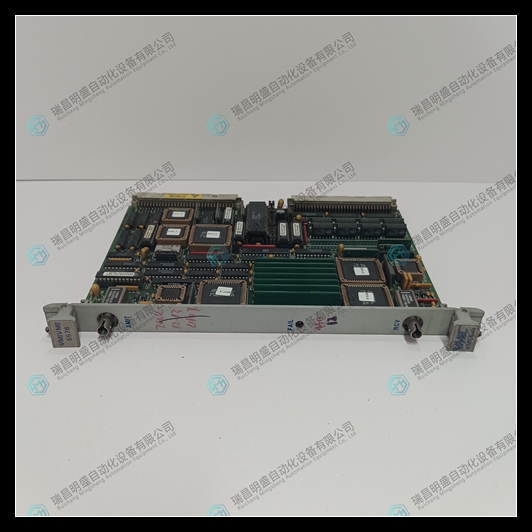

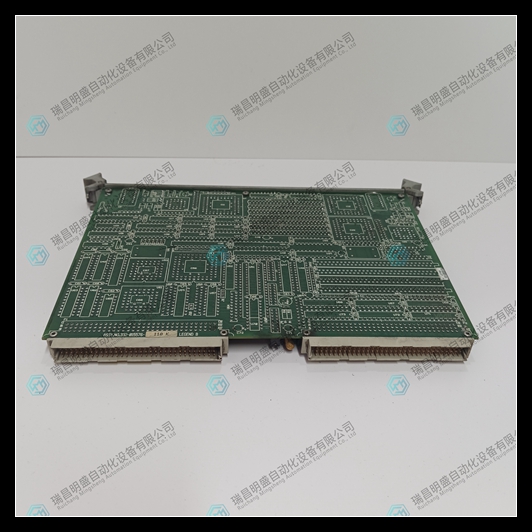

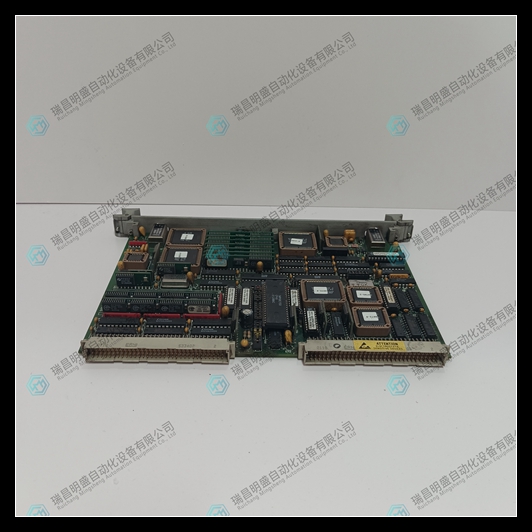

VMIVME5576 反射式存储板产品图片展示

GE VMIVME5576 (1).jpg

VMIVME5576 反射式存储板产品视频展示

VMIVME5576 反射式存储板产品特点和注意事项

反射式内存板有几个独特的功能:

没有建立通信所需的软件

车载中断生成能力。任何节点都可能在系统上的任何或所有其他节点上产生中断。

便于在很长的链路长度(即高达2000米)上进行通信

可以选择在特权或非特权模式下或同时在两种模式下操作

内存可以配置为以A24或A32寻址模式运行

支持8位、16位、24位和32位传输(双向)

注意力中断被引导到七个可编程中断级别之一

双欧洲卡形状系数

任何板都可以跳接为任何节点

可选择256 K、512 K或1M字节的板载SRAM

512字节或4 KB FIFO的选项

The Reflective Memory Board has several unique features:
No software necessary to establish communications
On-board interrupt generation ability. Any node may generateinterrupts on any or all other nodes on the system.
Facilitates communications over very long link lengths, i.e., up to2,000 meters
Can be selected to operate in privileged or nonprivileged modes or inboth modes at once
Memory can be configured to run in either A24 or A32 addressingschemes
Supports 8-, 16-, 24-, 32-bit transfers (bi-directional)
Attention interrupts are channeled to one of seven programmableinterrupt levels
Double Eurocard form factor
Any board may be jumpered to be any Node
Selectable 256 K, 512 K, or 1 Mbyte of SRAM on-board
Options for 512 byte or 4 Kbyte FIFOs

注意事项:
安装与连接:确保在无电状态下安装板卡,正确连接光纤接口,注意光纤的插入方向和清洁,以防信号衰减。
电源与接地:确认系统电源稳定,满足板卡的电源需求,并确保良好的接地,避免干扰和损害。
散热与环境:考虑到高速数据传输可能产生的热量,要确保机箱通风良好,避免过热。同时,注意工作环境温度和湿度,保持在规定范围内。
网络规划:在部署前仔细规划网络拓扑结构,根据应用需求选择合适的环形或星形连接方式。
软件配置:正确配置系统软件和驱动程序,以确保与VMIVME5576的兼容性和最优性能。
数据同步与校验:在高速传输环境下,注意数据的同步机制和错误校验,以保证数据的完整性和一致性。
维护与监测:定期检查网络状态,包括光纤连接、板卡状态指示灯等,及时发现并解决潜在问题。

静电防护:操作时采取静电防护措施,避免静电放电对板卡造成损害。

Notes:

Installation and connection: Ensure that the board is installed without power, correctly connect the fiber optic interface, pay attention to the insertion direction and cleanliness of the fiber optic to prevent signal attenuation.

Power and grounding: Confirm that the system power supply is stable, meets the power requirements of the board, and ensures good grounding to avoid interference and damage.

Heat dissipation and environment: Considering the potential heat generated by high-speed data transmission, it is necessary to ensure good ventilation of the chassis and avoid overheating. Meanwhile, pay attention to the working environment temperature and humidity, and maintain them within the specified range.

Network planning: Carefully plan the network topology structure before deployment, and choose the appropriate ring or star connection method according to application requirements.

Software configuration: Properly configure system software and drivers to ensure compatibility and optimal performance with VMIVME5576.

Data synchronization and verification: In high-speed transmission environments, pay attention to the synchronization mechanism and error verification of data to ensure data integrity and consistency.

Maintenance and monitoring: Regularly check the network status, including fiber optic connections, board status indicator lights, etc., to promptly identify and solve potential problems.

Electrostatic protection: Take electrostatic protection measures during operation to avoid damage to the board caused by electrostatic discharge.
