IS420ESWBH2A以太网交换机

发布时间:2024-06-07人气:
  • IS420ESWBH2A以太网交换机
  • IS420ESWBH2A以太网交换机
  • IS420ESWBH2A以太网交换机
  • IS420ESWBH2A以太网交换机

IS420ESWBH2A是由通用电气(GE)制造的非管理型以太网交换机,主要用于工业自动化和控制系统中,尤其是燃气轮机控制系统Mark VIe和Mark VIeS系列。

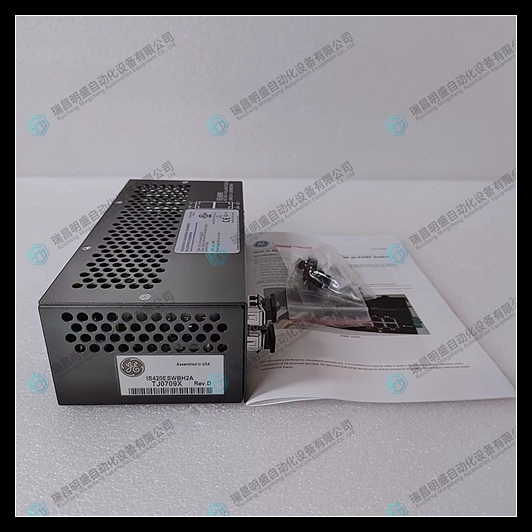

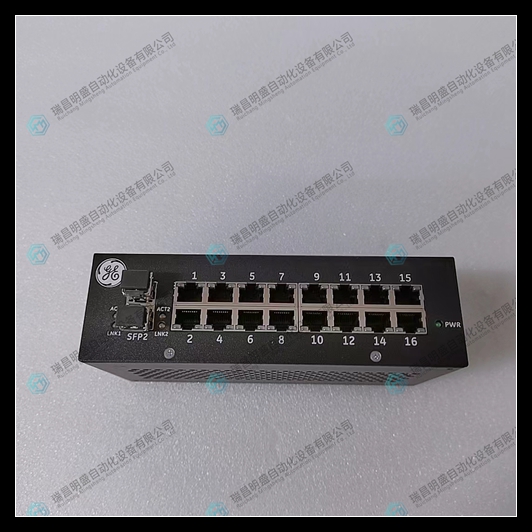

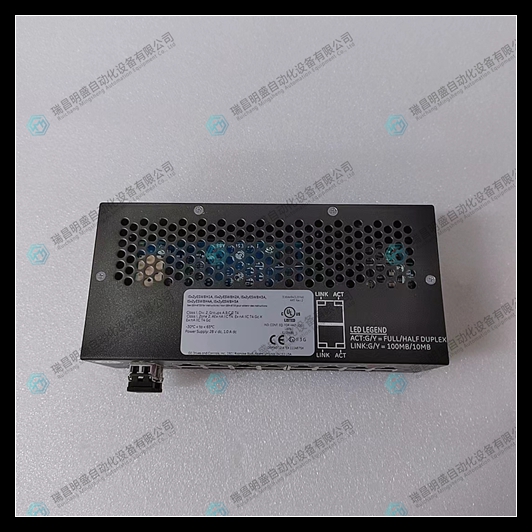

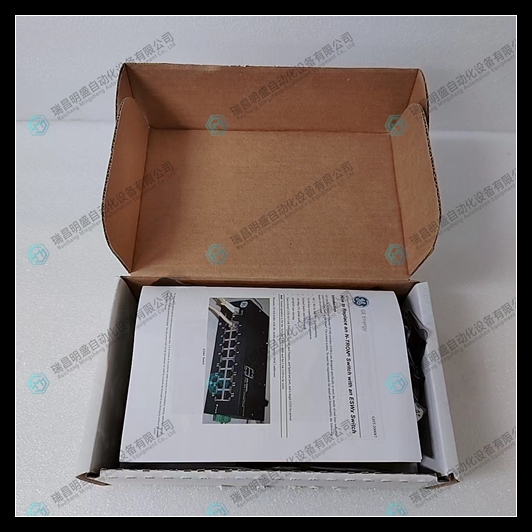

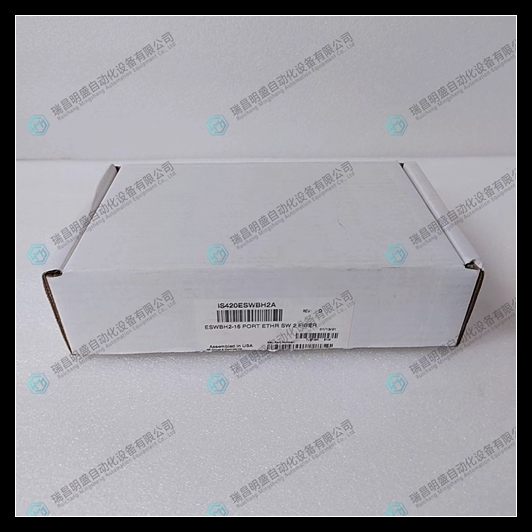

IS420ESWBH2A模块产品图片展示


IS420ESWBH2A模块实物视频展示

IS420ESWBH2A模块特点和注意事项

特点:

工业级设计:IS420ESWBH2A 专为工业环境设计,能够在恶劣的条件下稳定运行。
以太网连接:提供以太网连接,用于在工业控制系统中传输数据,支持工业以太网标准。
IONet兼容性:作为Mark VIe和Mark VIeS控制系统的一部分,它与IONet网络兼容,用于连接控制器和I/O模块。
高速传输:具有100 Mbps的FX上行链路端口,以及10/100 Base-TX铜缆端口,支持自动协商。
光纤接口:具有两个100Base-FX多模光纤接口,使用LC型连接器,适用于长距离传输或需要更高可靠性的应用。
LED指示:提供LED指示灯显示端口的链路状态、双工和速度,以及电源状态,便于监控网络状态。
非管理型:作为非管理型交换机,它不需要复杂的配置,简化了网络部署和维护。
无扰动切换:实现无扰动(Bumpless)切换技术,有助于在控制系统的实时性和可靠性方面提供信息同步。
注意事项:
环境条件:确保交换机安装在合适的温度和湿度环境下,避免灰尘、水气和腐蚀性气体。
电气连接:正确进行电气连接,确保所有电缆连接紧固,遵循制造商的指导原则。
光纤连接:对于光纤接口,使用适当的光纤跳线和适当的清洁程序来避免信号损失或损坏。
维护与检查:定期检查LED指示灯的状态,确保网络运行正常,必要时进行清洁和维护。
兼容性:在Mark VIe和Mark VIeS系统中使用时,确保IS420ESWBH2A与系统中的其他组件兼容。
更新与升级:关注通用电气的更新通知,确保使用的是最新版本的固件或软件,以获得最新的功能和安全更新。
安全措施:在进行任何维护或更换操作之前,确保断开电源,遵守所有安全规程。
操作培训:虽然IS420ESWBH2A是非管理型交换机,但确保操作和维护人员了解其基本功能和限制。
技术支持:在遇到问题或不确定如何操作时,及时联系通用电气的技术支持,避免自行修改或修理模块。

Features:

Industrial grade design: IS420ESWBH2A is specifically designed for industrial environments and can operate stably under harsh conditions.

Ethernet connection: Provides Ethernet connection for transmitting data in industrial control systems, supporting industrial Ethernet standards.

IONet Compatibility: As part of the Mark VIe and Mark VIeS control systems, it is compatible with the IONet network and is used to connect controllers and I/O modules.

High speed transmission: With a 100 Mbps FX uplink port and a 10/100 Base TX copper cable port, it supports automatic negotiation.

Fiber optic interface: With two 100Base FX multimode fiber optic interfaces, using LC type connectors, suitable for long-distance transmission or applications that require higher reliability.

LED indicator: Provides LED indicator lights to display the link status, duplex, speed, and power status of the port, making it easy to monitor network status.

Non managed: As a non managed switch, it does not require complex configurations, simplifying network deployment and maintenance.

Non disturbance switching: Implementing bumpless switching technology helps to provide information synchronization in terms of real-time and reliability of control systems.

Notes:

Environmental conditions: Ensure that the switch is installed in a suitable temperature and humidity environment, avoiding dust, moisture, and corrosive gases.

Electrical connection: Properly perform electrical connections, ensure all cable connections are tight, and follow the manufacturer's guidelines.

Fiber optic connection: For fiber optic interfaces, use appropriate fiber optic jumpers and cleaning procedures to avoid signal loss or damage.

Maintenance and inspection: Regularly check the status of LED indicator lights to ensure normal network operation, and clean and maintain them if necessary.

Compatibility: When used in Mark VIe and Mark VIeS systems, ensure that IS420ESWBH2A is compatible with other components in the system.

Update and Upgrade: Follow General Electric's update notifications to ensure that you are using the latest version of firmware or software for the latest features and security updates.

Safety measures: Before carrying out any maintenance or replacement operations, ensure that the power is disconnected and comply with all safety regulations.

Operation training: Although IS420ESWBH2A is a non managed switch, ensure that operators and maintenance personnel understand its basic functions and limitations.

Technical support: When encountering problems or unsure how to operate, promptly contact General Electric's technical support to avoid self modifying or repairing modules.
