IC660BBD101 IC660TSD100数字量输出模块

发布时间:2024-06-17人气:
  • IC660BBD101  IC660TSD100数字量输出模块
  • IC660BBD101  IC660TSD100数字量输出模块
  • IC660BBD101  IC660TSD100数字量输出模块

IC660BBD101  IC660TSD100模块是数字量输出模块,通常用于可编程逻辑控制器 (PLC) 和分布式控制系统 (DCS) 中。

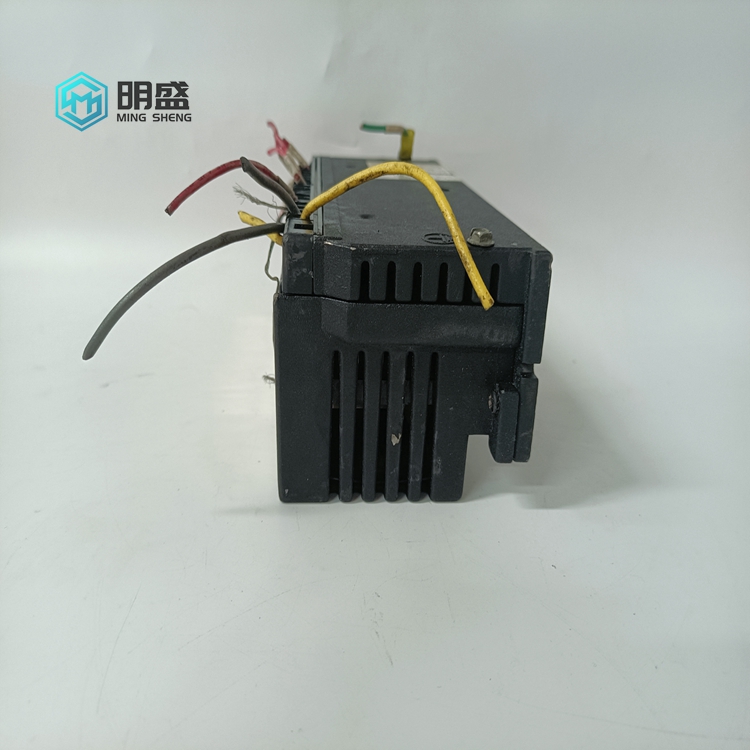

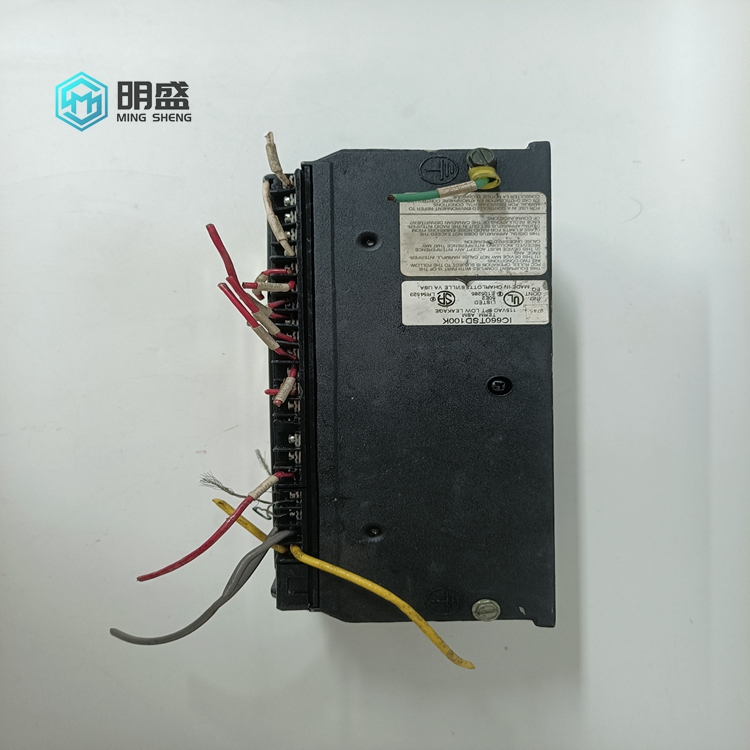

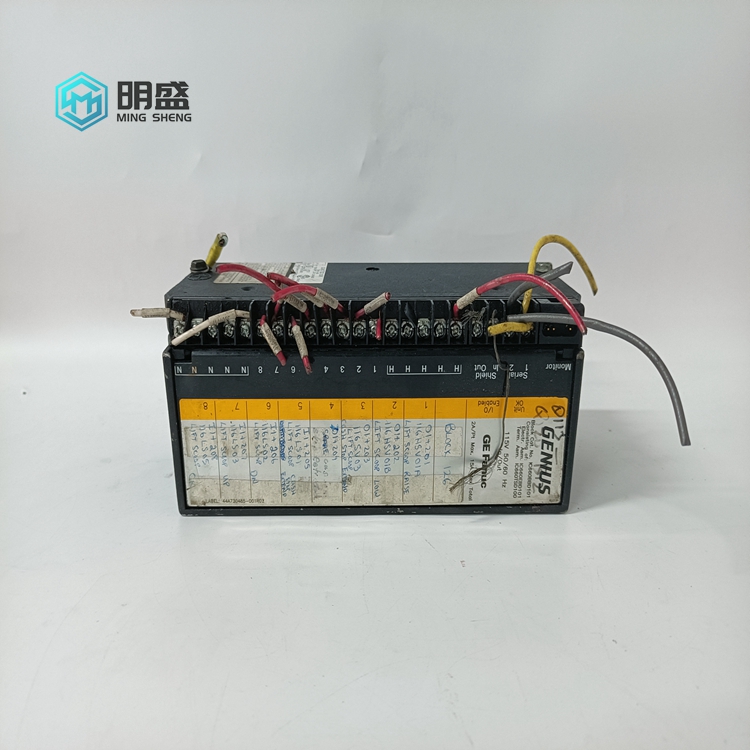

IC660BBD101  IC660TSD100数字量输出模块产品图片展示

IC660BBD101  IC660TSD100.jpg

IC660BBD101  IC660TSD100数字量输出模块视频展示

IC660BBD101  IC660TSD100数字量输出模块特点和注意事项

数字量输出:IC660BBD101 提供数字量输出功能,用于控制二进制设备。
通道数量:它通常具有多个输出通道(具体数量依据型号可能有所不同,但常见的版本有16点输出)。
输出类型:可能是干接点(relay contact)输出或晶体管(transistor)输出,具体取决于模块的具体型号。
隔离保护:输出通道间和输入/输出之间可能有电气隔离,以保护系统免受外部干扰。
功耗和负载能力:每个输出通道能够承载一定的电流,适合驱动不同类型的负载。
状态指示:模块通常配备LED指示灯,用于显示各个输出通道的状态或模块的整体健康状况。
安装方式:可能设计为DIN导轨安装,便于集成到控制柜中。
注意事项:
电源要求:确保模块的电源与系统兼容,并且供电稳定。
负载匹配:检查输出的电流容量是否满足负载需求,避免过载。
接线正确:遵循正确的接线图,确保所有连接安全可靠。
电气隔离:确认输出通道是否具有足够的隔离,以防短路或其他电气事故。
环境条件:注意工作温度、湿度和其他环境因素,确保模块在推荐条件下运行。
维护和检查:定期检查模块的运行状态和连接,及时更换老化或损坏的部件。
EMC考虑:采取适当的电磁兼容性措施,以减少干扰和提高系统的稳定性。
备份和冗余:在关键应用中考虑使用冗余配置,以增加系统的可靠性。

Features:

Digital output: IC660BBD101 provides digital output function for controlling binary devices.

Number of channels: It usually has multiple output channels (the specific number may vary depending on the model, but common versions have 16 output points).

Output type: It may be a dry contact output or a transistor output, depending on the specific model of the module.

Isolation protection: There may be electrical isolation between output channels and input/output to protect the system from external interference.

Power consumption and load capacity: Each output channel can carry a certain amount of current, suitable for driving different types of loads.

Status indication: The module is usually equipped with LED indicator lights to display the status of each output channel or the overall health status of the module.

Installation method: It may be designed to be installed on DIN rails for easy integration into the control cabinet.

Notes:

Power requirements: Ensure that the power supply of the module is compatible with the system and stable.

Load matching: Check whether the output current capacity meets the load requirements and avoid overload.

Correct wiring: Follow the correct wiring diagram to ensure all connections are safe and reliable.

Electrical isolation: Confirm whether the output channel has sufficient isolation to prevent short circuits or other electrical accidents.

Environmental conditions: Pay attention to working temperature, humidity, and other environmental factors to ensure that the module operates under recommended conditions.

Maintenance and inspection: Regularly check the operating status and connections of modules, and replace aging or damaged components in a timely manner.

EMC considerations: Take appropriate electromagnetic compatibility measures to reduce interference and improve system stability.

Backup and redundancy: Consider using redundant configurations in critical applications to increase system reliability.
