UR8HH CT/VT电流互感器

发布时间:2024-06-17人气:
  • UR8HH CT/VT电流互感器
  • UR8HH CT/VT电流互感器
  • UR8HH CT/VT电流互感器
  • UR8HH CT/VT电流互感器

UR8HH 模块是通用电气(GE)Multilin系列中的一种模块,它主要用于电力系统保护和控制。根据已有的信息,UR8HH是一个CT/VT模块,即电流互感器(Current Transformer, CT)和电压互感器(Voltage Transformer, VT)模块,用于提供灵敏的接地保护功能。

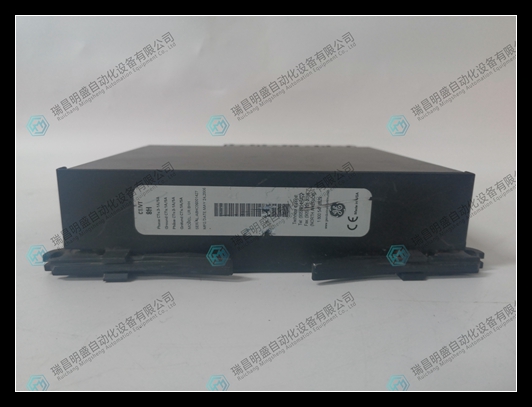

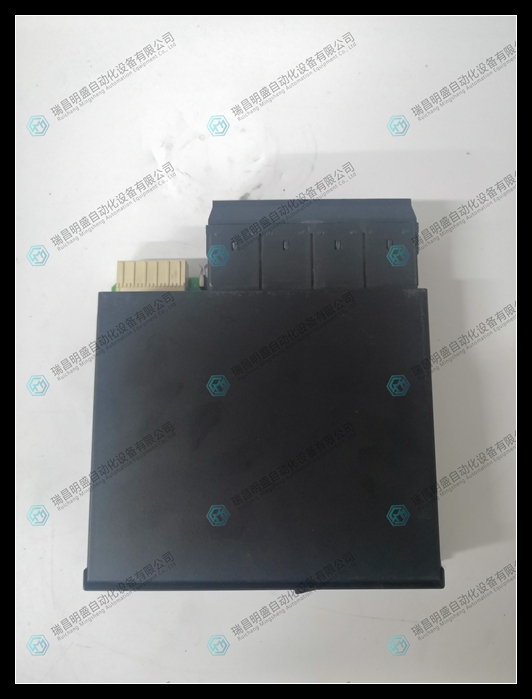

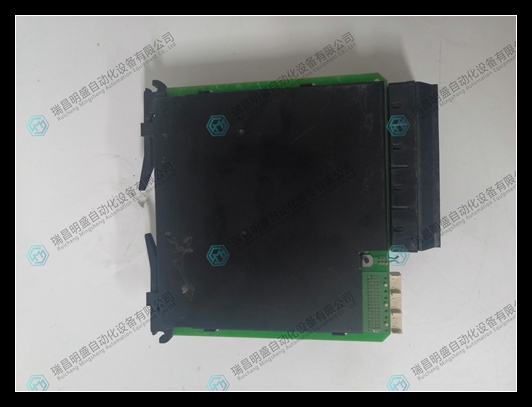

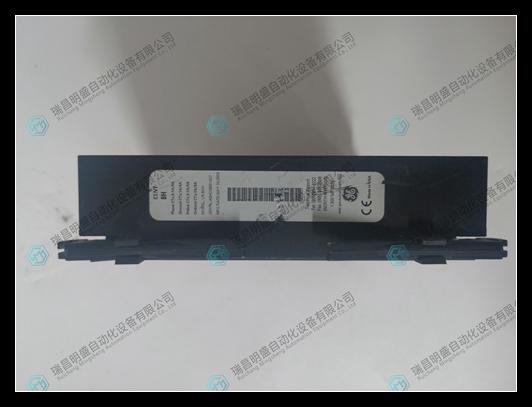

UR8HH CT/VT电流互感器产品图片展示

UR8HH (2).jpg

UR8HH CT/VT电流互感器实物视频展示

UR8HH CT/VT电流互感器特点和注意事项

特点:

灵敏的接地保护:UR8HH提供了比基本型号高十倍的接地保护灵敏度,这对于检测电力系统中的接地故障至关重要。
高度可配置性:用户可以通过通用继电器的键盘和LCD界面或通过Multilin的EnerVista软件程序进行配置,这使得设置和调整非常灵活。
通信能力:模块可以通过RS232端口或以太网连接与通用继电器通信,便于远程监控和配置。
CT/VT方案定制:用户可以根据具体系统的需求,为高度指定的保护设置不同的CT/VT方案,比如分相和差动保护。
垂直安装版本:UR8HH有专为通用继电器系列设计的垂直安装版本,适合空间有限的电力系统环境。
注意事项:
安装类型:确认购买的模块是水平还是垂直安装版本,因为两者之间存在明显的物理差异。
系统兼容性:确保UR8HH模块与现有的电力系统和继电器兼容,避免因不兼容而导致的问题。
配置与编程:正确使用EnerVista软件或其他配置工具,确保所有设置都符合电力系统的具体要求。
维护与检查:定期进行模块的维护和检查,包括清洁、检查连接和更新固件,以维持最佳性能。
冗余电源:如果模块支持冗余电源选项,确保正确配置,以便在主电源故障时,备用电源可以立即接管。
LED指示:注意模块面板上的LED指示灯,它们可以提示模块的状态和任何潜在的故障。
技术文档:在操作和配置UR8HH模块之前,务必阅读并理解制造商提供的技术文档和用户手册。
专业培训:操作人员应当接受专业培训,熟悉模块的功能和操作流程,避免错误操作。

Features:

Sensitive grounding protection: UR8HH provides a grounding protection sensitivity ten times higher than the basic model, which is crucial for detecting grounding faults in power systems.

Highly configurable: Users can configure it through the keyboard and LCD interface of a universal relay, or through the EnerVista software program of Multilin, making settings and adjustments very flexible.

Communication capability: The module can communicate with general relays through RS232 port or Ethernet connection, facilitating remote monitoring and configuration.

CT/VT scheme customization: Users can set different CT/VT schemes for highly specified protection based on specific system requirements, such as phase separation and differential protection.

Vertical installation version: UR8HH has a vertical installation version specifically designed for the universal relay series, suitable for power system environments with limited space.

Notes:

Installation type: Confirm whether the purchased module is a horizontal or vertical installation version, as there are significant physical differences between the two.

System compatibility: Ensure that the UR8HH module is compatible with existing power systems and relays to avoid issues caused by incompatibility.

Configuration and programming: Use EnerVista software or other configuration tools correctly to ensure that all settings meet the specific requirements of the power system.

Maintenance and Inspection: Regular maintenance and inspection of modules, including cleaning, checking connections, and updating firmware, to maintain optimal performance.

Redundant power supply: If the module supports the redundant power supply option, ensure proper configuration so that the backup power supply can take over immediately in the event of a main power supply failure.

LED indication: Pay attention to the LED indicator lights on the module panel, which can indicate the status of the module and any potential faults.

Technical documentation: Before operating and configuring the UR8HH module, it is essential to read and understand the technical documentation and user manual provided by the manufacturer.

Professional training: Operators should receive professional training, be familiar with the functions and operating procedures of the module, and avoid incorrect operations.
