IS200ERDDH1ABA 动态放电板

发布时间:2024-06-17人气:
  • IS200ERDDH1ABA 动态放电板
  • IS200ERDDH1ABA 动态放电板
  • IS200ERDDH1ABA 动态放电板
  • IS200ERDDH1ABA 动态放电板

IS200ERDDH1ABA 模块是通用电气(General Electric, GE)制造的一款专用于燃气轮机和蒸汽轮机控制系统中的动态放电板(Dynamic Discharge Board)。这个模块常见于Mark VI控制系统,主要用于控制直流链路(DC link)的电压,确保其不会超过安全水平,同时在励磁系统中起到关键作用。

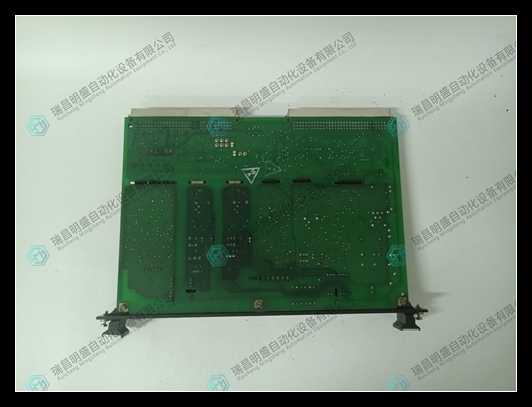

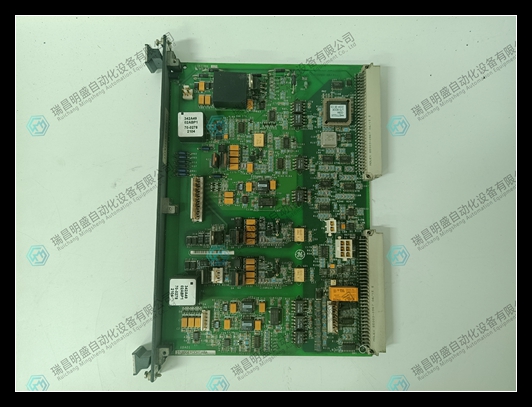

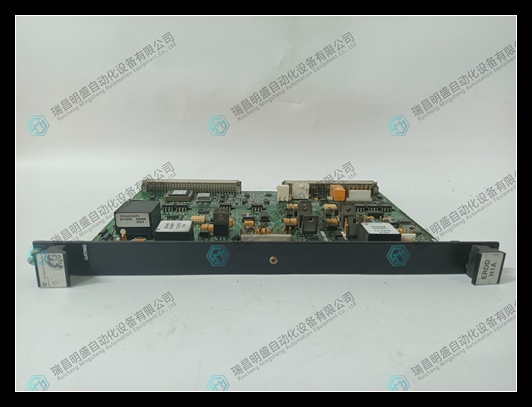

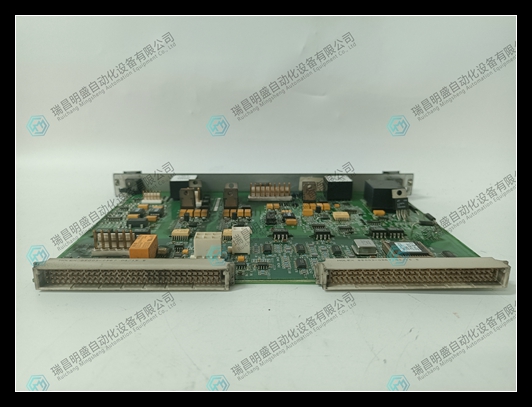

IS200ERDDH1ABA 动态放电板图片展示


IS200ERDDH1ABA 动态放电板实拍视频

IS200ERDDH1ABA 动态放电板特点和注意事项

特点:

动态放电控制:模块能够通过动态放电来控制过高的直流链路电压,这是在励磁系统中保护设备的关键功能。
冗余应用:IS200ERDDH1ABA模块可以在单工或冗余配置下使用,增强系统的可靠性和容错能力。
通讯能力:模块支持通过PROFIBUS和工业以太网总线系统与计算机进行通讯,便于系统监控和数据交换。
高端装备应用:模块适用于高端装备的大规模定制化生产,能够与物料供应、仓储管理、装配生产等环节的数字化技术相结合。
IGBT励磁调节:作为IGBT励磁调节器的一部分,IS200ERDDH1ABA参与控制K3充电,确保励磁系统的稳定运行。
注意事项:
安装与维护:确保模块安装正确,遵循制造商的指导进行布线和连接,定期进行维护和检查,以保持模块的最佳工作状态。
环境条件:模块应在推荐的温度、湿度范围内工作,避免暴露在极端环境条件下,以防性能下降或损坏。
电源要求:使用稳定的电源供应,避免电压波动对模块性能的影响。
通讯设置:正确配置通讯参数,确保模块与控制系统之间的通讯顺畅。
操作手册:在安装和使用前,详细阅读并理解制造商提供的操作手册和安全指南。
软件更新:如果适用,定期检查并更新模块的软件或固件,以确保其功能的最新和最优化。
安全操作:遵守所有相关的安全操作规程,特别是在处理高压或高转速的设备时,确保人身安全。

Features:

Dynamic discharge control: The module is able to control excessive DC link voltage through dynamic discharge, which is a key function of protecting equipment in the excitation system.

Redundant applications: The IS200ERDDH1ABA module can be used in simplex or redundant configurations to enhance system reliability and fault tolerance.

Communication capability: The module supports communication with computers through PROFIBUS and industrial Ethernet bus systems, facilitating system monitoring and data exchange.

High end equipment application: The module is suitable for large-scale customized production of high-end equipment and can be combined with digital technology in material supply, warehouse management, assembly production, and other links.

IGBT excitation regulation: As part of the IGBT excitation regulator, IS200ERDDH1ABA participates in controlling K3 charging to ensure stable operation of the excitation system.

Notes:

Installation and Maintenance: Ensure that the module is installed correctly, follow the manufacturer's instructions for wiring and connections, and perform regular maintenance and inspections to maintain the module's optimal working condition.

Environmental conditions: The module should operate within the recommended temperature and humidity range, avoiding exposure to extreme environmental conditions to prevent performance degradation or damage.

Power requirements: Use a stable power supply to avoid the impact of voltage fluctuations on module performance.

Communication settings: Properly configure communication parameters to ensure smooth communication between the module and the control system.

Operating manual: Before installation and use, carefully read and understand the manufacturer's provided operating manual and safety guidelines.

Software updates: If applicable, regularly check and update the software or firmware of the module to ensure its functionality is up-to-date and optimized.

Safe operation: Follow all relevant safety operating procedures, especially when handling high-pressure or high-speed equipment, to ensure personal safety.
