SR489-P1-HI-A20-E继电器管理保护模块

 SR489-P1-HI-A20-E继电器管理保护模块 是一款继电器管理保护模块，由 GE（通用电气）公司生产。它是一种高性能的保护装置

 SR489-P1-HI-A20-E继电器管理保护模块   详情介绍：

GE SR489-P1-HI-A20-E 是一款继电器管理保护模块，由 GE（通用电气）公司生产。它是一种高性能的保护装置，主要用于电力系统中的设备保护、故障检测和控制。该模块广泛应用于发电厂、变电站、工业设施等需要高可靠性的保护和控制系统的环境中。

主要功能和特点：

1. 继电器保护功能：

• 多种保护功能：SR489-P1-HI-A20-E 模块提供多种继电器保护功能，包括过电流保护、过电压保护、欠电压保护、差动保护、负序电流保护等，确保对电力系统中的关键设备进行全面保护。
• 高灵敏度和精确性：模块能够精确检测系统中的异常情况，并在故障发生时迅速响应，采取保护措施，防止设备损坏。

2. 监控和控制：

• 实时监控：支持实时监控电力系统的运行状态，包括电流、电压、功率因数等参数，帮助用户实时了解系统状态。
• 远程控制：可以通过远程通信接口进行配置和控制，实现对保护设置的调整和故障清除等操作。

3. 高可靠性和稳定性：

• 工业级设计：设计符合工业标准，具有高抗干扰能力和高可靠性，能够在恶劣的工业环境中稳定运行。
• 冗余设计：具备冗余机制，在关键部件发生故障时，系统能够继续运行，保障持续的保护功能。

4. 通信接口：

• 多种通信协议：支持多种通信协议，如 Modbus、DNP3、IEC 61850 等，便于与其他控制系统或监控系统集成。
• 数据传输：能够将监控数据和状态信息传输至中央控制系统或远程服务器，方便集中管理和分析。

5. 配置和调试：

• 易于配置：通过配置软件可以对模块进行灵活的配置，设置保护参数、报警阈值等，满足不同应用场景的需求。
• 故障诊断：内置故障诊断功能，能够记录和分析设备的故障信息，帮助运维人员进行预防性维护和故障排查。

6. 保护和报警：

• 多级报警：支持多级报警功能，当检测到异常时，能够通过声光报警、继电器输出等方式提醒操作人员。
• 保护动作：在检测到严重故障时，模块能够自动采取保护措施，如断路、停机等，保护设备免受损害。

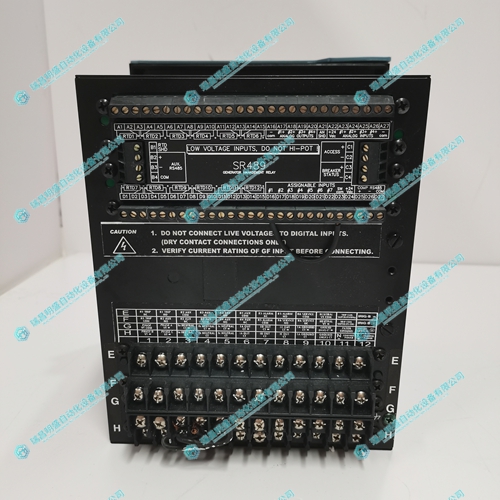

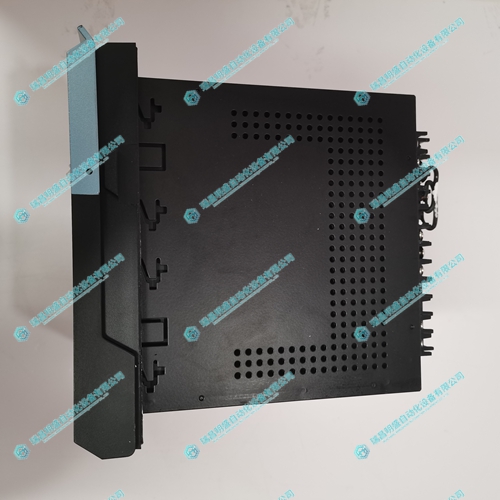

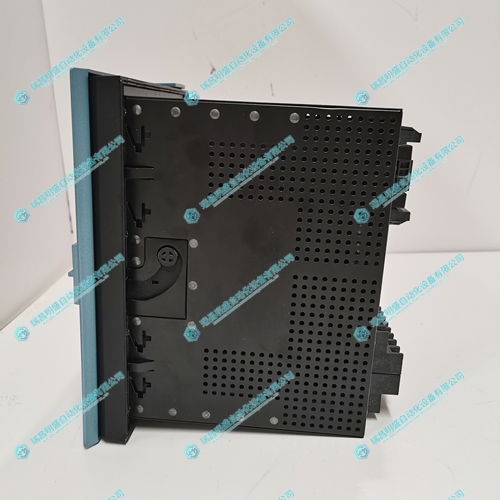

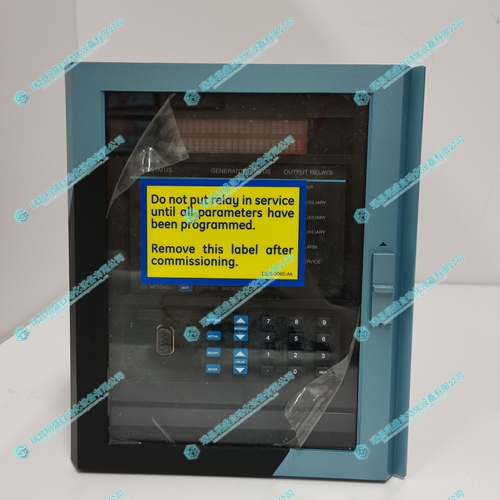

 SR489-P1-HI-A20-E继电器管理保护模块   实物图片：

english introduction:

GE SR489-P1-HI-A20-E is a relay management and protection module produced by GE (General Electric). It is a high-performance protective device mainly used for equipment protection, fault detection, and control in power systems. This module is widely used in environments that require high reliability protection and control systems, such as power plants, substations, and industrial facilities.

Main functions and features:

Relay protection function:

Multiple protection functions: The SR489-P1-HI-A20-E module provides multiple relay protection functions, including overcurrent protection, overvoltage protection, undervoltage protection, differential protection, negative sequence current protection, etc., ensuring comprehensive protection of key equipment in the power system.

High sensitivity and accuracy: The module can accurately detect abnormal situations in the system and respond quickly when faults occur, taking protective measures to prevent equipment damage.

Monitoring and Control:

Real time monitoring: supports real-time monitoring of the operating status of the power system, including parameters such as current, voltage, power factor, etc., to help users understand the system status in real time.

Remote control: It can be configured and controlled through a remote communication interface to adjust protection settings and clear faults.

High reliability and stability:

Industrial grade design: The design meets industrial standards, has high anti-interference ability and high reliability, and can operate stably in harsh industrial environments.

Redundancy design: Equipped with redundancy mechanisms, the system can continue to operate in the event of critical component failures, ensuring continuous protection functions.

Communication interface:

Multiple communication protocols: Supports multiple communication protocols such as Modbus, DNP3, IEC 61850, etc., making it easy to integrate with other control or monitoring systems.

Data transmission: It can transmit monitoring data and status information to the central control system or remote server, facilitating centralized management and analysis.

Configuration and debugging:

Easy to configure: By configuring software, modules can be flexibly configured to set protection parameters, alarm thresholds, etc., to meet the needs of different application scenarios.

Fault diagnosis: Built in fault diagnosis function, capable of recording and analyzing equipment fault information, helping operation and maintenance personnel carry out preventive maintenance and troubleshooting.

Protection and alarm:

Multi level alarm: Supports multi-level alarm function, which can alert operators through sound and light alarms, relay outputs, and other methods when abnormalities are detected.

Protection action: When a serious fault is detected, the module can automatically take protective measures, such as circuit breaker, shutdown, etc., to protect the equipment from damage.
