METSO AI8H D201189 输入输出模块

METSO AI8H D201189 输入输出模块 是一款功能强大的模块，它结合了输入和输出的功能，适用于多种工业应用场景。

METSO AI8H D201189 输入输出模块 产品详情：

METSO AI8H D201189 输入输出模块是一款功能强大的模块，它结合了输入和输出的功能，适用于多种工业应用场景。以下是对该模块的详细介绍：

1. 输入功能：

• 输入继电器：METSO AI8H D201189模块具有多个输入继电器，用于从外部设备或传感器接收信号。这些输入继电器采用光电隔离技术，确保信号传输的准确性和稳定性。同时，模块内部提供了常开/常闭触点，供编程时随时使用，且使用次数不限。
• 输入地址：模块的输入地址采用八进制编号，方便用户进行编程和配置。通过设定不同的输入地址，可以实现对不同外部设备的信号采集和处理。

2. 输出功能：

• 输出继电器：该模块还具备多个输出继电器，用于向外部设备或执行机构发送控制信号。这些输出继电器同样采用电子常开/常闭触点，使用次数不限，确保长期稳定运行。
• 输出地址：输出地址同样采用八进制编号，与输入地址相对应。通过编程配置，可以实现对外部设备的精确控制。

3. 扩展性：

• METSO AI8H D201189模块支持多种类型的I/O扩展模块，用户可以根据实际需求选择并添加相应的扩展模块，从而增加模块的输入/输出容量。
• 通过向CPU添加扩展模块，最大配置可以达到24个离散输入、20个离散输出、8个模拟输入和8个模拟输出，满足复杂工业控制系统的需求。

4. 编程与监控：

• 该模块支持使用FL1F SmartRelay的扩展编程能力，允许用户通过编程实现复杂的控制逻辑。
• 模块内部的I/O点可以通过编程进行监控，确保系统的稳定运行。此外，模块还支持一系列工业标准功能模块以及五种新类型的功能模块（天文时钟、模拟滤波器、最大最小值、平均值和秒表），进一步增强了其应用灵活性。

5. 操作界面：

• METSO AI8H D201189模块配备了一个LCD操作员界面，可以显示多达6行的信息，每行最多包含20个字符。这使得操作员能够方便地查看模块的状态、参数和报警信息。
• 界面还提供了可选的白色、琥珀色或红色背光功能，使得操作员在远处就能轻松区分警报和报警状态，提高了操作的便捷性和安全性。

总的来说，METSO AI8H D201189 输入输出模块是一款功能全面、性能稳定的工业控制模块，适用于各种复杂的工业应用场景。通过合理的配置和编程，它可以帮助用户实现对外部设备的精确控制和监控，提高生产效率和系统稳定性。

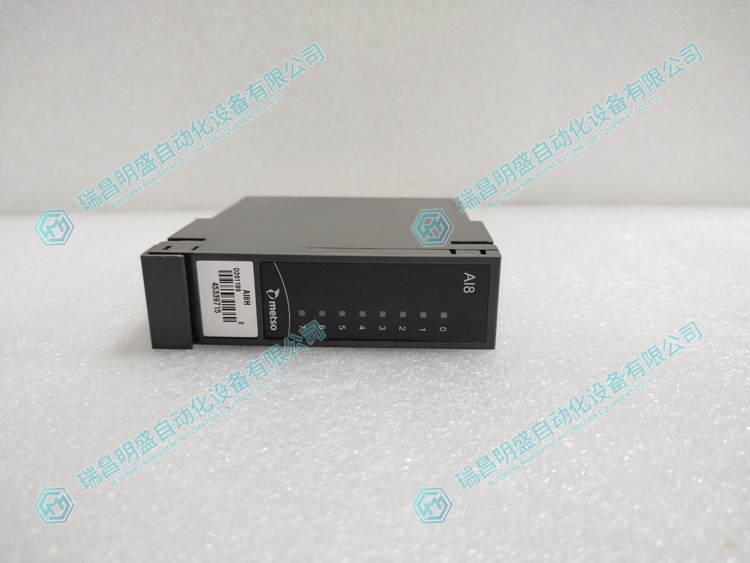

METSO AI8H D201189 输入输出模块 实物图片

METSO AI8H D201189 输入输出模块 实物视频

METSO AI8H D201189 Input/Output Module Product Details:

The METSO AI8H D201189 I/O module is a powerful module that combines input and output functions, suitable for various industrial application scenarios. The following is a detailed introduction to this module:

Input function:

Input Relay: The METSO AI8H D201189 module has multiple input relays for receiving signals from external devices or sensors. These input relays use photoelectric isolation technology to ensure the accuracy and stability of signal transmission. At the same time, the module provides normally open/normally closed contacts for programming at any time, and the number of uses is unlimited.

Input address: The input address of the module is numbered in octal, making it convenient for users to program and configure. By setting different input addresses, signal acquisition and processing of different external devices can be achieved.

Output function:

Output Relay: This module also has multiple output relays for sending control signals to external devices or actuators. These output relays also use electronic normally open/normally closed contacts, with unlimited usage to ensure long-term stable operation.

Output address: The output address also uses octal numbering, corresponding to the input address. Through programming configuration, precise control of external devices can be achieved.

Scalability:

The METSO AI8H D201189 module supports various types of I/O expansion modules. Users can choose and add corresponding expansion modules according to their actual needs, thereby increasing the input/output capacity of the module.

By adding expansion modules to the CPU, the maximum configuration can reach 24 discrete inputs, 20 discrete outputs, 8 analog inputs, and 8 analog outputs, meeting the requirements of complex industrial control systems.

Programming and Monitoring:

This module supports the extended programming capabilities of FL1F SmartRelay, allowing users to implement complex control logic through programming.

The I/O points inside the module can be monitored through programming to ensure the stable operation of the system. In addition, the module also supports a series of industrial standard functional modules and five new types of functional modules (astronomical clock, analog filter, maximum minimum value, average value, and stopwatch), further enhancing its application flexibility.

Operation interface:

The METSO AI8H D201189 module is equipped with an LCD operator interface that can display up to 6 lines of information, each line containing up to 20 characters. This allows operators to easily view the status, parameters, and alarm information of the module.

The interface also provides optional white, amber, or red backlight functions, allowing operators to easily distinguish between alarms and alarm states from a distance, improving the convenience and safety of operation.

Overall, the METSO AI8H D201189 I/O module is a comprehensive and stable industrial control module suitable for various complex industrial application scenarios. Through reasonable configuration and programming, it can help users achieve precise control and monitoring of external devices, improve production efficiency and system stability.
