NI NI9853 输出模块

NI  NI9853  输出模块    是一款高速控制器局域网（CAN）接口模块，专门用于结合NI-RIO驱动在CompactRIO上开发应用程序。该模块适用于使用LabVIEW FPGA模块编程基于FPGA的底层控制和触发应用程序，并是对CAN帧进行字节级操作的理想驱动。

NI  NI9853  输出模块     详情介绍：

1. NI-9853是一款高速控制器局域网（CAN）接口模块，专门用于结合NI-RIO驱动在CompactRIO上开发应用程序。该模块适用于使用LabVIEW FPGA模块编程基于FPGA的底层控制和触发应用程序，并是对CAN帧进行字节级操作的理想驱动。

2. NI-9853模块可以插入任何CompactRIO机箱中，为汽车及工业应用提供多样化的功能。这些功能包括监控车内的CAN总线、从CAN设备（如电子控制单元和制动器）中读取和写入数值，以及与工业设备（如运动控制驱动器和马达）进行通信。此外，工程师可以利用CompactRIO的灵活性和性能优势，将NI-9853 CAN模块与任何提供硬件CAN的CompactRIO I/O模块进行同步化，数据采集同步化分辨率可高达25ns。

3. NI-9853 CAN模块还提供11位及29位的仲裁识别号码（arbitration ID）支持，这使其能够在J1939网络上通信。同时，工程师可以使用NI-CAN驱动程序软件，将Vector数据库文件结合至其应用程序中。

4. 需要注意的是，NI-9853模块仅与CompactRIO系统兼容。因此，在选择和使用该模块时，需要确保它与你的系统配置相匹配。

5. 综上所述，NI-9853是一款功能强大且高度专业化的输出模块，特别适用于需要高速CAN接口和精确控制的CompactRIO系统。

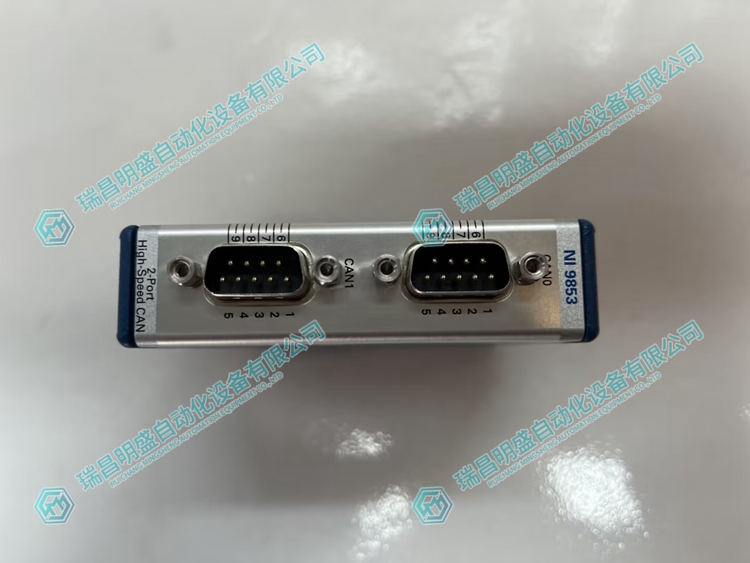

NI  NI9853  输出模块     实物图片：

NI  NI9853  输出模块     产品视频：

Detailed introduction of NI NI9853 output module:

NI-9853 is a high-speed Controller Area Network (CAN) interface module specifically designed for developing applications on CompactRIO in conjunction with NI-RIO drivers. This module is suitable for programming FPGA based low-level control and triggering applications using LabVIEW FPGA modules, and is an ideal driver for byte level operations on CAN frames.

The NI-9853 module can be inserted into any CompactRIO chassis, providing diverse functions for automotive and industrial applications. These functions include monitoring the CAN bus inside the vehicle, reading and writing values from CAN devices (such as electronic control units and brakes), and communicating with industrial devices (such as motion control drivers and motors). In addition, engineers can leverage the flexibility and performance advantages of CompactRIO to synchronize the NI-9853 CAN module with any CompactRIO I/O module that provides hardware CAN, with a data acquisition synchronization resolution of up to 25ns.

The NI-9853 CAN module also provides support for 11 and 29 bit arbitration identification numbers, allowing it to communicate on the J1939 network. Meanwhile, engineers can use NI-CAN driver software to integrate Vector database files into their applications.

It should be noted that the NI-9853 module is only compatible with the CompactRIO system. Therefore, when selecting and using this module, it is necessary to ensure that it matches your system configuration.

In summary, NI-9853 is a powerful and highly specialized output module, particularly suitable for CompactRIO systems that require high-speed CAN interfaces and precise control.
