NI NI-9205 模拟输入模块
1.产 品 资 料 介 绍：
中文资料：
NI NI-9205 模拟输入模块
型号: NI-9205
类型: 模拟输入模块
适用: National Instruments CompactDAQ 系统
1. 主要功能
- 模拟信号输入: 该模块用于从传感器或其他设备接收模拟信号，并将其转换为数字信号供系统处理。
- 多通道支持: 提供 16 个独立的模拟输入通道，可同时采集多个信号。
- 高精度: 提供 16 位分辨率的输入，保证高精度的数据采集。
2. 应用领域
- 工业自动化: 用于自动化控制系统中的数据采集，监控和调整设备参数。
- 传感器接口: 连接多种传感器，如温度传感器、压力传感器等，采集相关信号。
- 测试与测量: 在实验室和工程测试中，采集精确的模拟信号进行分析。
3. 性能特点
- 高采样速率: 支持高达 250 kS/s 的采样速率，确保快速数据采集。
- 宽输入范围: 输入电压范围通常为 -10V 到 +10V，适应各种信号源。
- 抗干扰性: 强大的抗干扰设计，确保在恶劣环境中的可靠运行。
- 可编程增益: 支持可调增益，方便适应不同信号强度的输入需求。
4. 安装与维护
- 安装: 插入到 CompactDAQ 系统中，通过即插即用的方式进行连接，简化安装过程。
- 维护: 支持软件监控和故障诊断，用户可通过 NI 软件平台实时检查模块状态。
英文资料：
NI NI-9205 Analog Input Module
model: NI-9205
Type: Analog Input Module
Applicable: National Instruments CompactDAQ System
1. Main functions
Analog signal input: This module is used to receive analog signals from sensors or other devices and convert them into digital signals for system processing.
Multi channel support: Provides 16 independent analog input channels that can simultaneously collect multiple signals.
High precision: Provides 16 bit resolution input to ensure high-precision data acquisition.
2. Application Fields
Industrial automation: used for data acquisition, monitoring, and adjusting equipment parameters in automation control systems.
Sensor interface: Connect multiple sensors, such as temperature sensors, pressure sensors, etc., to collect relevant signals.
Testing and Measurement: Collecting accurate analog signals for analysis in laboratory and engineering testing.
3. Performance characteristics
High sampling rate: Supports sampling rates up to 250 kS/s to ensure fast data collection.
Wide input range: The input voltage range is usually -10V to+10V, suitable for various signal sources.
Anti interference: Powerful anti-interference design ensures reliable operation in harsh environments.
Programmable gain: Supports adjustable gain, making it easy to adapt to input requirements of different signal strengths.
4. Installation and maintenance
Installation: ｉｎｓｅｒｔ into the CompactDAQ system and connect through plug and play to simplify the installation process.
Maintenance: Supports software monitoring and fault diagnosis, and users can check module status in real-time through the NI software platform.

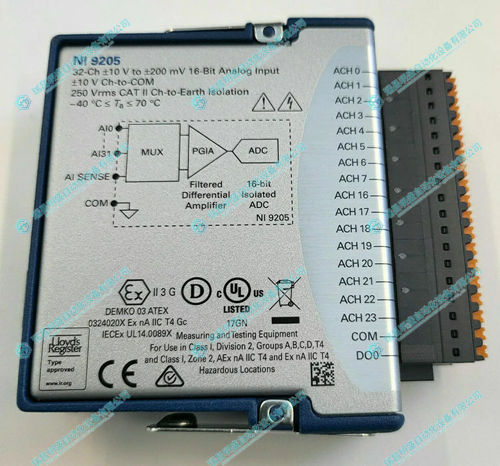

2.产 品 展 示
