NI PXI-1033 多路复用器

NI PXI-1033 多路复用器

1.产 品 资 料 介 绍：

中文资料：

NI PXI-1033 多路复用器 是 National Instruments（NI，国家仪器）公司推出的一款用于测试与测量系统中的多路复用模块，广泛应用于数据采集和自动化测试领域。该设备设计用于在多个信号源之间进行快速切换，允许用户同时处理来自多个通道的数据输入或输出，确保测试系统的高效性和灵活性。

产品概述

• 型号：NI PXI-1033
• 类型：多路复用器（Mux）
• 系列：PXI 系列
• 主要用途：用于在多个信号源之间选择输入或输出，常见于自动化测试系统、数据采集系统和工业控制领域。
• 支持平台：PXI（PCI eXtensions for Instrumentation）标准，适用于与其他 PXI 模块配合使用。

关键技术参数

英文资料：

The NI PXI-1033 multiplexer is a multiplexing module developed by National Instruments (NI) for use in testing and measurement systems, widely used in the fields of data acquisition and automated testing. This device is designed for fast switching between multiple signal sources, allowing users to simultaneously process data input or output from multiple channels, ensuring the efficiency and flexibility of the testing system.

Product Overview

model: NI PXI-1033

Type: Mux multiplexer

Series: PXI Series

Main purpose: Used to ｓｅｌｅｃｔ input or output between multiple signal sources, commonly found in automation testing systems, data acquisition systems, and industrial control fields.

Support platform: PXI (PCI eXtensions for Instrumentation) standard, suitable for use with other PXI modules.

Key technical parameters

Parameter description

Number of channels: 8 or more, supporting the selection and switching of multiple input/output channels

Switching type: Single Pole Double Throw (SPDT) or Multiple Pole Multiple Throw (SPDT/DPDT), supporting high-precision switching

Input/output type: analog or digital signal, supporting multiple signal types (such as voltage, current, temperature, etc.)

Maximum switch speed supports fast switching, suitable for high-frequency testing scenarios

The working voltage range supports a wide voltage range, usually 3.3V to 12V, depending on the specific application

Slot type PXI slot, compatible with standard PXI measurement and control systems

The connection method supports standard PXI bus interfaces to ensure fast communication and data exchange with other modules

The working temperature range is -40 ° C to+70 ° C, suitable for working requirements under different environmental conditions

Mechanical dimension standard PXI module size, suitable for various testing racks and instrument systems

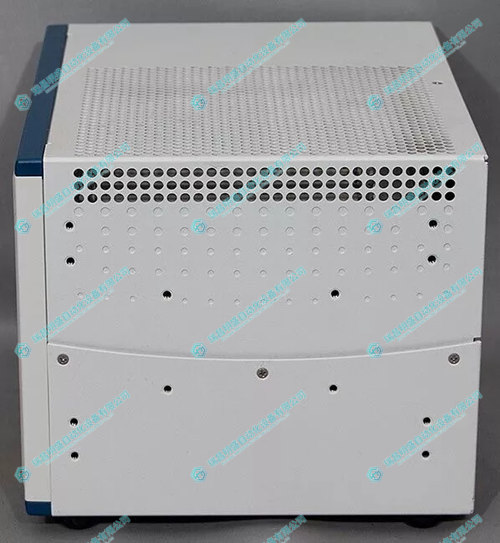

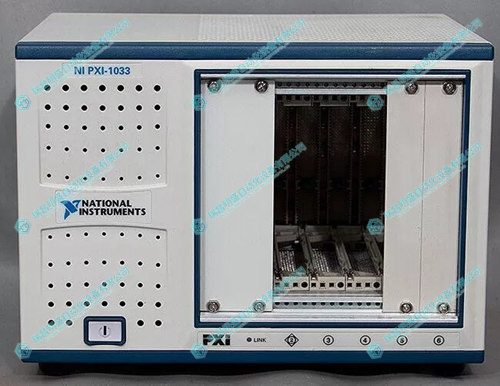

2.产      品      展      示
