NI PXIE-5160示波器模块

1.产 品 资 料 介 绍:

中文资料:

NI PXIe-5160 是由国家仪器(National Instruments)推出的一款高性能 PXI Express 示波器模块,广泛应用于需要高速信号采集和分析的领域。

主要技术规格:

  • 通道数:提供两通道和四通道两种型号,所有通道均可同时采样。

  • 模拟带宽:高达 500 MHz。

  • 采样率:最高可达 2.5 GS/s。

  • 垂直分辨率:10 位。

  • 输入类型:采用 BNC 连接器的参考单端输入。

  • 耦合方式:支持交流(AC)或直流(DC)耦合。

  • 输入阻抗:软件可选择 50 Ω 或 1 MΩ,典型值分别为 50 Ω ± 1.50% 和 1 MΩ ± 0.75%。

  • 输入电容:典型值为 15 pF ± 0.8 pF。

  • 板载内存:可选 64 MB 或 2 GB。

应用领域:

  • 研发测试:在新产品开发阶段,用于测试和验证电子设备的性能是否符合设计规格。

  • 制造与质量控制:在生产线上监测产品性能,确保产品在制造过程中满足质量标准。

  • 通信行业:分析和测试通信设备中的信号完整性,包括无线信号和高速数据传输。

  • 汽车电子:测试和验证汽车中的电子控制单元、传感器和通讯系统。

PXIe-5160 示波器模块的高带宽和高采样率使其非常适合需要精确信号测量和分析的应用场景。

英文资料:

NI PXIe-5160 is a high-performance PXI Express oscilloscope module launched by National Instruments, widely used in fields that require high-speed signal acquisition and analysis.

Main technical specifications:

Number of channels: Two channel and four channel models are available, and all channels can be sampled simultaneously.

Analog bandwidth: up to 500 MHz.

Sampling rate: up to 2.5 GS/s.

Vertical resolution: 10 bits.

Input type: Reference single ended input using BNC connector.

Coupling method: Supports alternating current (AC) or direct current (DC) coupling.

Input impedance: The software can select 50 Ω or 1 M Ω, with typical values of 50 Ω± 1.50% and 1 M Ω± 0.75%, respectively.

Input capacitance: The typical value is 15 pF ± 0.8 pF.

Onboard memory: optional 64 MB or 2 GB.

Application areas:

R&D testing: During the new product development phase, it is used to test and verify whether the performance of electronic devices meets design specifications.

Manufacturing and Quality Control: Monitor product performance on the production line to ensure that the product meets quality standards during the manufacturing process.

Communication industry: Analyze and test signal integrity in communication equipment, including wireless signals and high-speed data transmission.

Automotive Electronics: Testing and validating electronic control units, sensors, and communication systems in automobiles.

The high bandwidth and sampling rate of the PXIe-5160 oscilloscope module make it highly suitable for applications that require precise signal measurement and analysis.

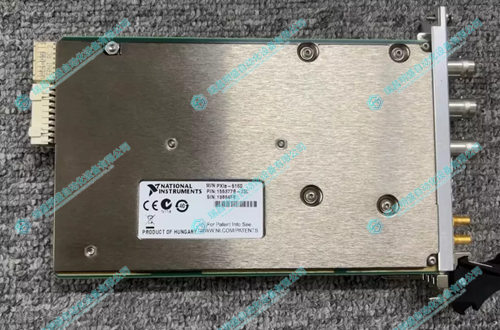

2.产      品      展      示
