TEWS TPMC871-10 接口模块

TEWS  TPMC871-10 接口模块   是一款高性能的I/O模块，专为在崎岖和恶劣的环境中使用而设计。它基于Industry Pack（IP）夹层标准，适用于VMEbus和CompactPCI单板计算机。

TEWS  TPMC871-10 接口模块  详情介绍：

1. TEWS TPMC871-10接口模块是一款高性能的I/O模块，专为在崎岖和恶劣的环境中使用而设计。它基于Industry Pack（IP）夹层标准，适用于VMEbus和CompactPCI单板计算机。

2. 该模块具有以下特点：

3. 输入/输出通道：TPMC871-10配备了四个模拟输入通道，这些通道可配置为接收电压或电流输入。此外，它还具有四个模拟输出通道，这些通道可设置为电压或电流输出。同时，该模块还提供了八个数字输入通道和八个数字输出通道，以满足各种数字信号的处理需求。
4. 工作温度范围：该模块设计用于在-40°C至+85°C的温度范围内工作，这使其能够适应各种恶劣的工业环境。
5. PC卡插槽：TPMC871-10是一个标准的单宽度32位PMC模块，具有一个接口，用于16位PC卡或32位Cardbus卡。这个插槽支持I类和II类内存以及I/O卡，为系统提供了额外的扩展能力和灵活性。
6. 电源管理：由于电源管理单元的短路和热保护功能，该模块不需要外部保险丝。此外，它还支持多达五个存储器窗口和多达两个I/O窗口的访问，以实现对PC卡资源的有效管理。

7. 在工业自动化系统中，TPMC871-10接口模块扮演着关键的角色。它负责处理系统内外的数字或模拟信号，以实现与外部设备（如传感器、执行器、开关等）的通信和控制。这些模块在控制系统中发挥着重要作用，帮助实现对生产过程的监测、调节和控制。

8. 总之，TEWS TPMC871-10接口模块是一款高性能、多功能的I/O模块，适用于各种恶劣环境和工业自动化应用。它的丰富功能和强大的性能使其成为工业自动化系统中的关键组件之一。

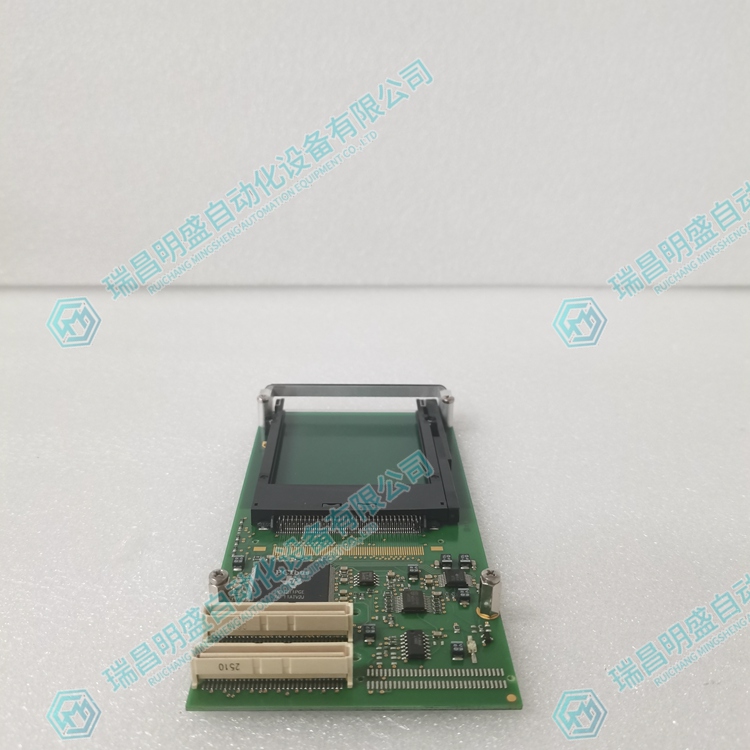

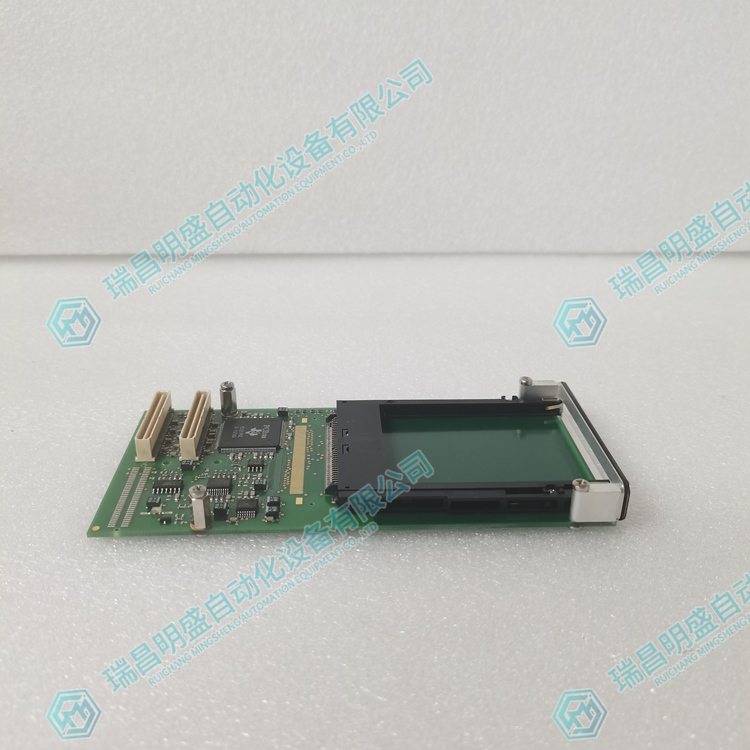

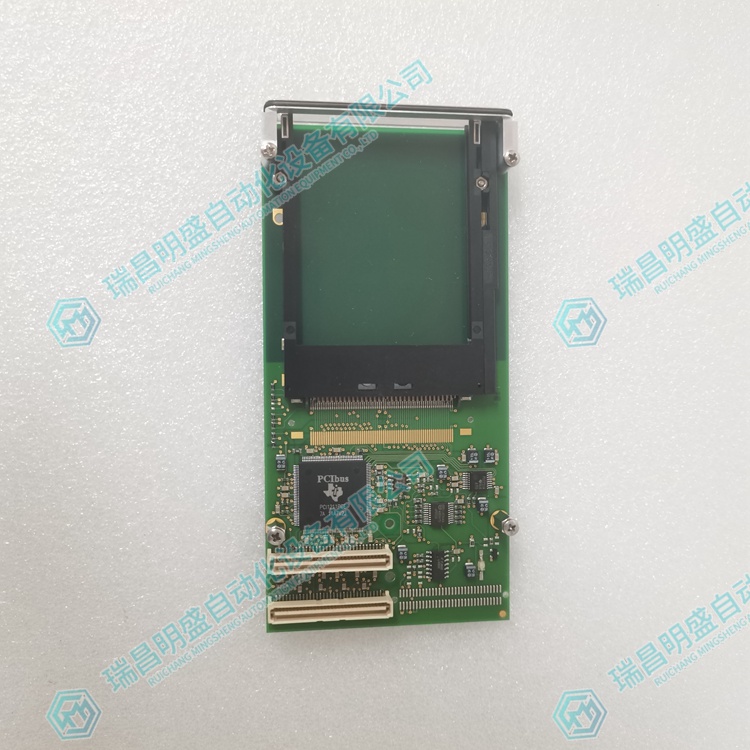

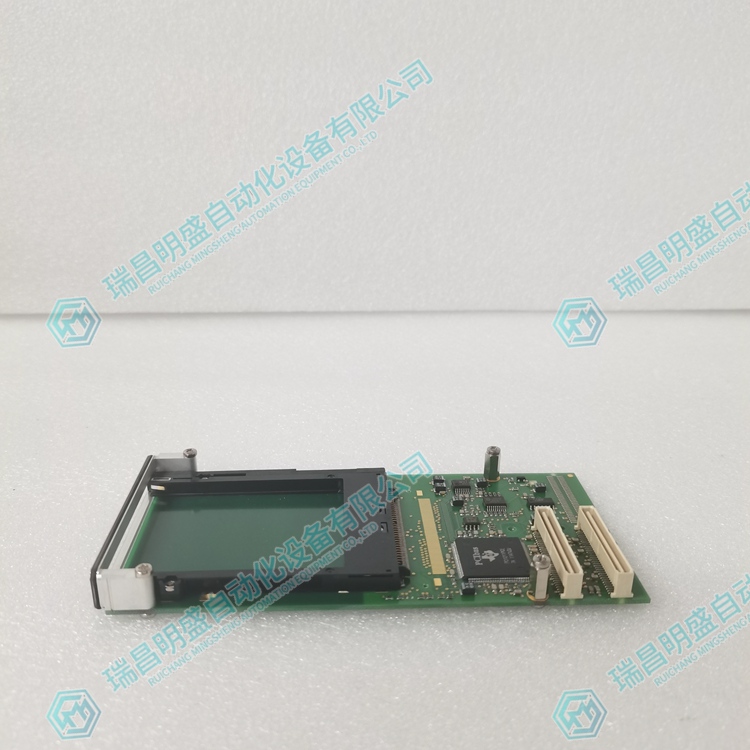

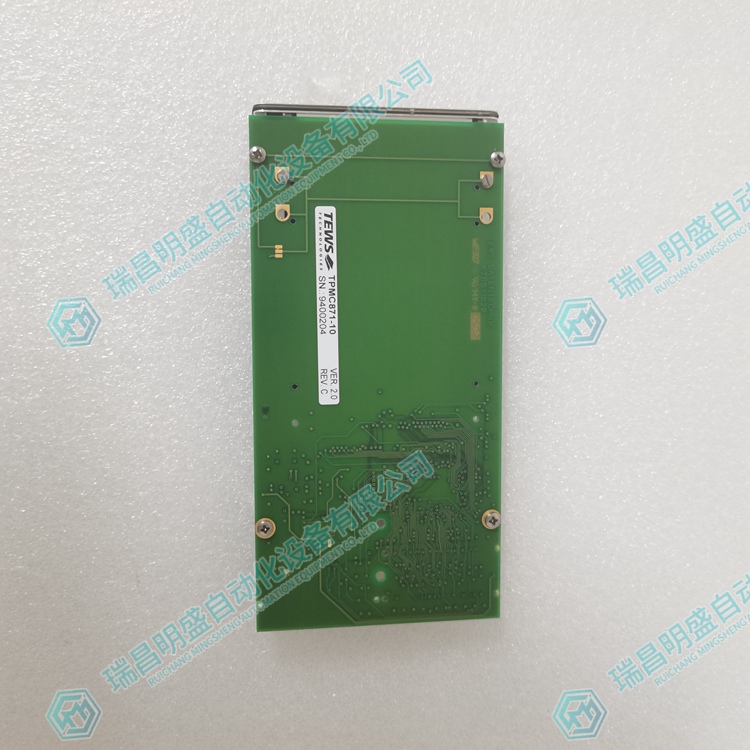

TEWS  TPMC871-10 接口模块   实物图片：

TEWS  TPMC871-10 接口模块  实物视频

TEWS TPMC871-10 Interface Module Details Introduction:

The TEWS TPMC871-10 interface module is a high-performance I/O module designed specifically for use in rugged and harsh environments. It is based on the Industry Pack (IP) mezzanine standard and is suitable for VMEbus and CompactPCI single board computers.

This module has the following characteristics:

Input/Output Channels: TPMC871-10 is equipped with four analog input channels, which can be configured to receive voltage or current inputs. In addition, it also has four analog output channels, which can be set for voltage or current output. At the same time, the module also provides eight digital input channels and eight digital output channels to meet various digital signal processing needs.

Working temperature range: This module is designed to operate within the temperature range of -40 ° C to+85 ° C, which enables it to adapt to various harsh industrial environments.

PC card slot: TPMC871-10 is a standard single width 32-bit PMC module with an interface for 16 bit PC cards or 32-bit Cardbus cards. This slot supports Class I and Class II memory as well as I/O cards, providing additional scalability and flexibility for the system.

Power management: Due to the short-circuit and thermal protection functions of the power management unit, this module does not require external fuses. In addition, it also supports access to up to five memory windows and up to two I/O windows to achieve effective management of PC card resources.

In industrial automation systems, the TPMC871-10 interface module plays a crucial role. It is responsible for processing digital or analog signals both inside and outside the system to achieve communication and control with external devices such as sensors, actuators, switches, etc. These modules play an important role in the control system, helping to monitor, regulate, and control the production process.

In summary, the TEWS TPMC871-10 interface module is a high-performance and multifunctional I/O module suitable for various harsh environments and industrial automation applications. Its rich functionality and powerful performance make it one of the key components in industrial automation systems.
