Vibro-Meter VM600 IOC4T 输入/输出卡

Vibro-Meter VM600 IOC4T 输入/输出卡 是Vibro-Meter监测系统的一部分，它来自Meggitt传感系统的振动计产品线。这款卡具有多个显著的特点和优势，使其在工业监测和机械保护领域具有广泛的应用。

Vibro-Meter VM600 IOC4T 输入/输出卡 的产物内容：

Vibro-Meter VM600 IOC4T 输入/输出卡是Vibro-Meter监测系统的一部分，它来自Meggitt传感系统的振动计产品线。这款卡具有多个显著的特点和优势，使其在工业监测和机械保护领域具有广泛的应用。

首先，IOC4T卡支持4个动态通道和2个转速计（速度）通道，这些通道都可以独立配置，以满足不同的应用需求。该卡还包含48个端子的螺钉端子连接器，用于输入和输出连接，这种设计使得连接更为稳固可靠。

其次，IOC4T卡配备了4个可配置的继电器，这些继电器可以用于报警信号，并且由软件控制。此外，该卡还具有32个完全可编程的开路集电极输出，这些输出可以跳线选择到IRC4和RLC16继电器卡片，提供缓冲的原始电压和电流振动输出。

在保护方面，IOC4T卡的所有输入和输出都具备EMI保护，这有助于减少电磁干扰对信号的影响，提高信号的稳定性和准确性。此外，该卡还支持实时插卡和拔卡（热插拔），这使得在运行过程中可以方便地进行卡片的更换或维护，而无需停机。

最后，IOC4T卡通常安装在VM600 ABE04x机架的后部，与MPC4卡或MPC4SIL卡形成卡对。这样的设计使得整个系统更为紧凑，同时也有利于信号的传输和处理。

总的来说，Vibro-Meter VM600 IOC4T 输入/输出卡是一款功能强大、设计精良的工业监测和机械保护设备，它能够满足各种复杂应用的需求，为工业生产的稳定运行提供有力的保障。

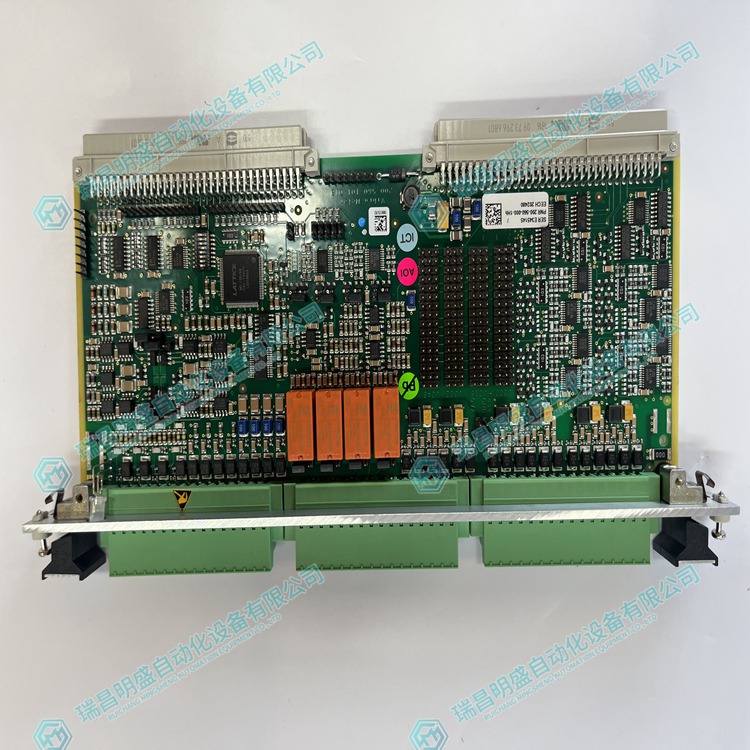

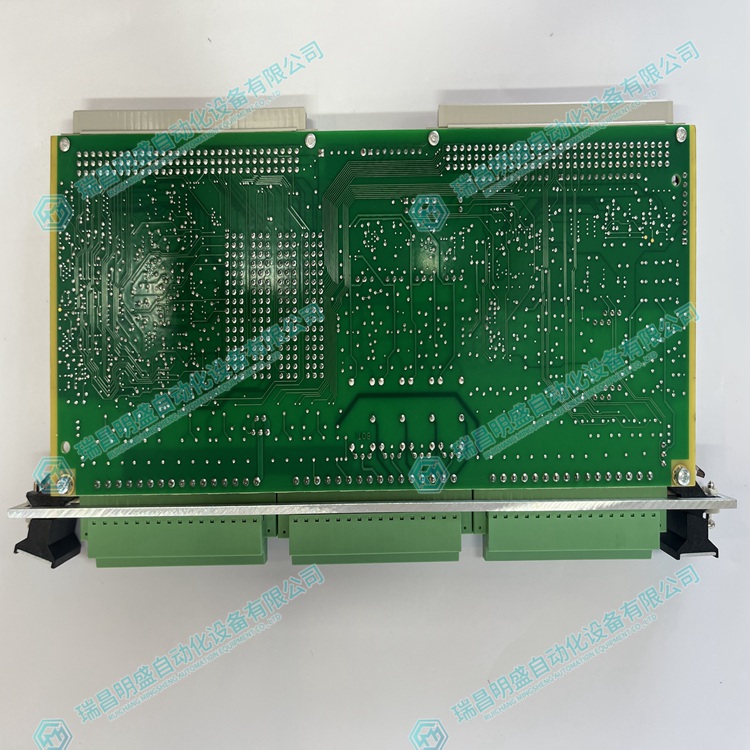

Vibro-Meter VM600 IOC4T 输入/输出卡 图片：

Vibro-Meter VM600 IOC4T 输入/输出卡 视频

Product content of Vibro Meter VM600 IOC4T input/output card:

The Vibro Meter VM600 IOC4T input/output card is part of the Vibro Meter monitoring system and comes from the Meggitt sensing system's vibration meter product line. This card has multiple significant features and advantages, making it widely used in industrial monitoring and mechanical protection fields.

Firstly, the IOC4T card supports 4 dynamic channels and 2 tachometer (speed) channels, all of which can be independently configured to meet different application requirements. The card also includes a screw terminal connector with 48 terminals for input and output connections, making the connection more stable and reliable.

Secondly, the IOC4T card is equipped with four configurable relays, which can be used for alarm signals and controlled by software. In addition, the card also has 32 fully programmable open collector outputs that can be jumper selected to IRC4 and RLC16 relay cards, providing buffered raw voltage and current vibration outputs.

In terms of protection, all inputs and outputs of the IOC4T card have EMI protection, which helps to reduce the impact of electromagnetic interference on the signal and improve its stability and accuracy. In addition, the card also supports real-time card insertion and removal (hot swapping), which makes it easy to replace or maintain the card during operation without the need for downtime.

Finally, IOC4T cards are typically installed at the rear of the VM600 ABE04x rack, forming card pairs with MPC4 cards or MPC4SIL cards. This design makes the entire system more compact, while also facilitating signal transmission and processing.

Overall, the Vibro Meter VM600 IOC4T input/output card is a powerful and well-designed industrial monitoring and mechanical protection device that can meet the needs of various complex applications and provide strong guarantees for the stable operation of industrial production.
