VM600 IOC4T 200-560-000-111机械保护卡 是一款机械保护卡,具体来说,它是VM600系列机械保护系统(MPS)的输入/输出卡。
VM600 IOC4T 200-560-000-111机械保护卡 详情介绍:
VM600 IOC4T 200-560-000-111是一款机械保护卡,具体来说,它是VM600系列机械保护系统(MPS)的输入/输出卡。以下是关于这款机械保护卡的一些主要特点和功能:
- 输入/输出通道:它提供16个数字输入和8个数字输出通道,这使得MPC4卡能够连接到各种传感器和执行器。
- 连接方式:IOC4T卡安装在VM600机架的后部,并通过两个连接器直接连接到机架背板。它由VM600电源供电。
- 支持的输入/输出类型:IOC4T卡支持多种输入和输出类型,包括触点输入(24 VDC或120 VAC)、模拟输入(0-10 VDC, 0-20 mA)、脉冲输入(0-10 kHz)、继电器输出(24 VDC、120 VAC)和模拟输出(0-10 VDC, 0-20 mA)。
- 信号采集与传递:除了提供输入/输出通道外,IOC4T卡还负责采集来自传感器的信号,并将这些信号传递到后续的分析和监测系统中。这对于监测旋转机械设备的振动水平等关键参数至关重要。
- 信号处理功能:IOC4T卡通常具有信号放大功能,以增加传感器生成的微弱信号的幅度,从而提高信噪比和测量的精度。此外,它还配备滤波器以滤除不需要的频率分量,使振动信号更容易分析和解释。同时,它还具有温度补偿功能,可以校正信号中的温度变化对振动测量的影响。
总的来说,VM600 IOC4T 200-560-000-111机械保护卡是一种多功能、功能强大的工具,能够扩展VM600 MPS的功能,并提供可靠的输入/输出连接和信号处理功能,以满足各种机械保护应用的需求。

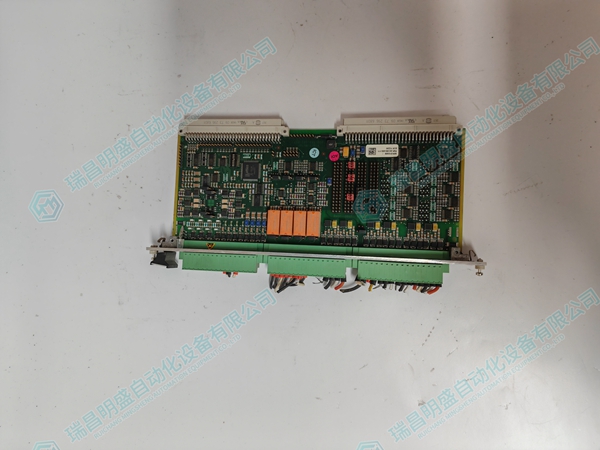

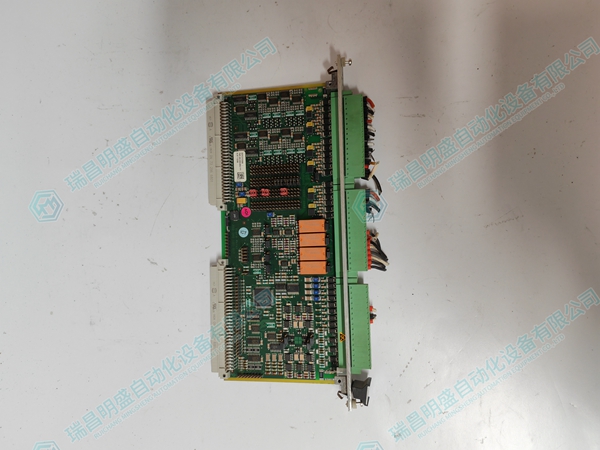

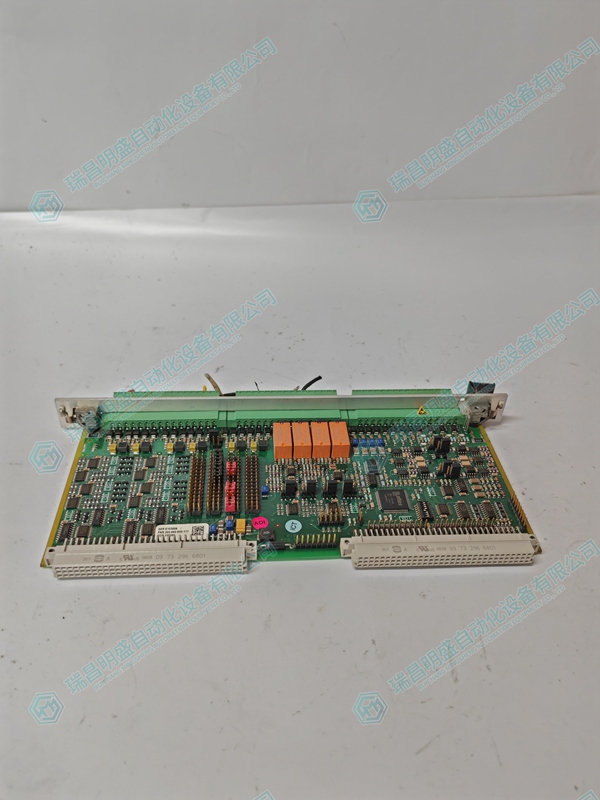

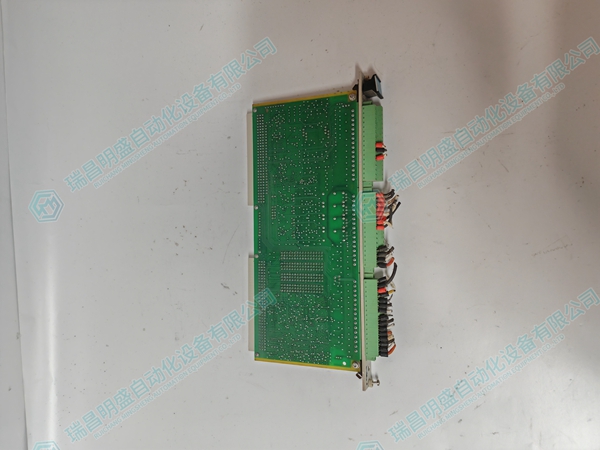

VM600 IOC4T 200-560-000-111机械保护卡 实物图片:
VM600 IOC4T 200-560-000-111机械保护卡 实物视频
VM600 IOC4T 200-560-000-111 Mechanical Protection Card Details Introduction:
VM600 IOC4T 200-560-000-111 is a mechanical protection card, specifically, it is the input/output card of the VM600 series mechanical protection system (MPS). Here are some main features and functions of this mechanical protection card:
Input/output channels: It provides 16 digital inputs and 8 digital output channels, allowing the MPC4 card to connect to various sensors and actuators.
Connection method: The IOC4T card is installed at the rear of the VM600 rack and directly connected to the rack backplane through two connectors. It is powered by a VM600 power supply.
Supported input/output types: The IOC4T card supports multiple input and output types, including contact input (24 VDC or 120 VAC), analog input (0-10 VDC, 0-20 mA), pulse input (0-10 kHz), relay output (24 VDC, 120 VAC), and analog output (0-10 VDC, 0-20 mA).
Signal acquisition and transmission: In addition to providing input/output channels, The IOC4T card is also responsible for collecting signals from sensors and transmitting these signals to subsequent analysis and monitoring systems. This is crucial for monitoring key parameters such as vibration levels of rotating machinery equipment.
Signal processing function: IOC4T cards often have signal amplification function to increase the amplitude of weak signals generated by sensors, thereby improving signal-to-noise ratio and measurement accuracy. In addition, it is equipped with filters to filter out unwanted frequency components, making vibration signals easier to analyze and interpret. At the same time, it also has a temperature compensation function, which can correct the impact of temperature changes in the signal on vibration measurement.
Overall, The VM600 IOC4T 200-560-000-111 mechanical protection card is a multifunctional and powerful tool that can expand the functionality of VM600 MPS and provide reliable input/output connections and signal processing functions to meet the needs of various mechanical protection applications.
