VM600 MPC4 200-510-071-113机器保护卡

VM600 MPC4 200-510-071-113机器保护卡 它采用碳化硅（SiC）作为传感器材料，这种材料具有高速、高灵敏度和高可靠性等特点，使得探测器能够迅速准确地检测到火焰信号。

VM600 MPC4 200-510-071-113机器保护卡  详情介绍：

1. VM600 MPC4 200-510-071-113机械保护卡是一款来自Meggitt Vibro-Meter产品线的高质量和高可靠性的机械保护卡。这款卡件被设计为VM600机架式机械监控系统的一部分，并通过了SIL 2认证。以下是其主要特点：

2. 通道配置：MPC4机械保护卡提供了4个动态通道和2个辅助通道，每个动态通道有2个处理输出，每个转速通道有1个处理输出。这种配置使得它能够处理和监测多个动态信号输入，如加速度、速度和位移等。
3. 报警和诊断功能：该卡件配备了4个用户可配置的报警继电器和1个公共电路故障继电器。此外，它还具有全系统安全线的诊断（BIST）功能，可以在需要时将所有相关保护系统继电器和模拟输出驱动至安全状态。
4. 测量和监控：MPC4机械保护卡能够测量和监控四个动态信号输入以及多达两个速度输入。这些动态信号输入是完全可编程的，可以接受各种表示的信号，如加速度、速度和位移（接近）等。
5. 数字处理：这款卡件提供了数字滤波、积分或微分（如果需要）、整流（有效值、平均值、真峰或真值）、峰对峰、顺序跟踪（振幅和相位）和测量的传感器目标差距等数字处理功能。
6. 高集成度：MPC4机械保护卡是高度集成的，通常与IOC4Mk2或IOC4T卡配对使用，形成一个完整的卡对。这个卡对包括传感器电源、缓冲输出、DC输出、继电器和串行通信接口等。
7. 专为软件设计：MPC4机械保护卡是专为VM600 MPSx软件设计的，可以与该软件无缝集成，实现更高级别的机械保护和状态监测功能。

8. 总的来说，VM600 MPC4 200-510-071-113机械保护卡是一款功能强大、高度可配置和高度集成的机械保护卡，适用于各种需要高精度和可靠机械保护的工业应用。

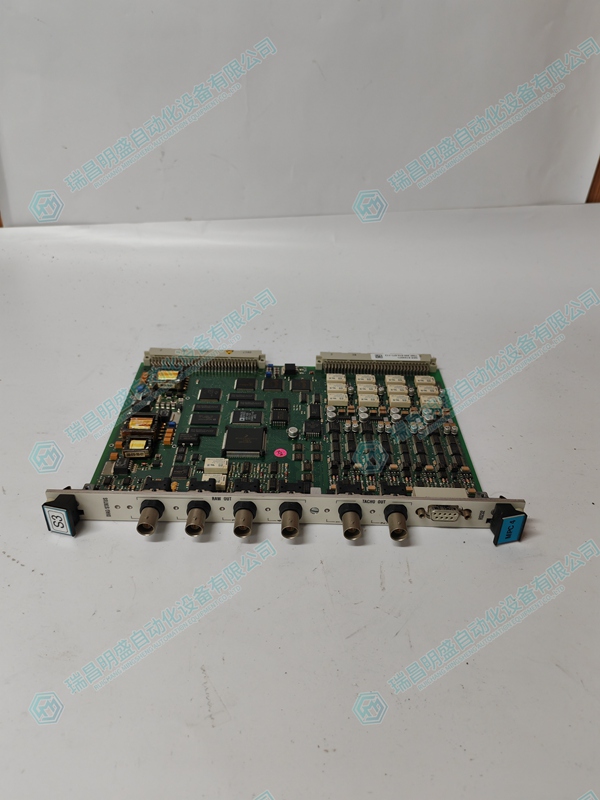

VM600 MPC4 200-510-071-113机器保护卡   实物图片：

VM600 MPC4 200-510-071-113机器保护卡   实物视频

VM600 MPC4 200-510-071-113 Machine Protection Card Details Introduction:

The VM600 MPC4 200-510-071-113 mechanical protection card is a high-quality and highly reliable mechanical protection card from the Meggitt Vibro Meter product line. This card is designed as part of the VM600 rack mounted mechanical monitoring system and has passed SIL 2 certification. The following are its main characteristics:

Channel configuration: The MPC4 mechanical protection card provides 4 dynamic channels and 2 auxiliary channels. Each dynamic channel has 2 processing outputs, and each speed channel has 1 processing output. This configuration enables it to process and monitor multiple dynamic signal inputs, such as acceleration, velocity, and displacement.

Alarm and diagnostic functions: This card is equipped with 4 user configurable alarm relays and 1 common circuit fault relay. In addition, it also has a diagnostic (BIST) function for the entire system safety line, which can drive all relevant protection system relays and analog outputs to a safe state when needed.

Measurement and monitoring: The MPC4 mechanical protection card can measure and monitor four dynamic signal inputs and up to two speed inputs. These dynamic signal inputs are fully programmable and can accept various representations of signals, such as acceleration, velocity, and displacement (proximity).

Digital Processing: This card provides digital filtering, integration or differentiation (if needed), rectification (effective value, average value, true peak or true value), peak to peak, sequential tracking (amplitude and phase), and measurement of sensor target differences and other digital processing functions.

High Integration: MPC4 mechanical protection cards are highly integrated and typically paired with IOC4Mk2 or IOC4T cards to form a complete card pair. This card pair includes sensor power supply, buffered output DC output, relays, and serial communication interfaces.

Specially designed for software: The MPC4 mechanical protection card is designed specifically for VM600 MPSx software and can be seamlessly integrated with the software to achieve higher-level mechanical protection and status monitoring functions.

Overall, The VM600 MPC4 200-510-071-113 mechanical protection card is a feature
