SIGMATEK DNC115用于1轴的定位模块DNC 115定位输入是为具有RS422电平的增量器设计的。有三个数字输入可用于参考驱动器或监控末端位置。设定值输出由12位D/a转换器进行。有2个无电势光耦输出。

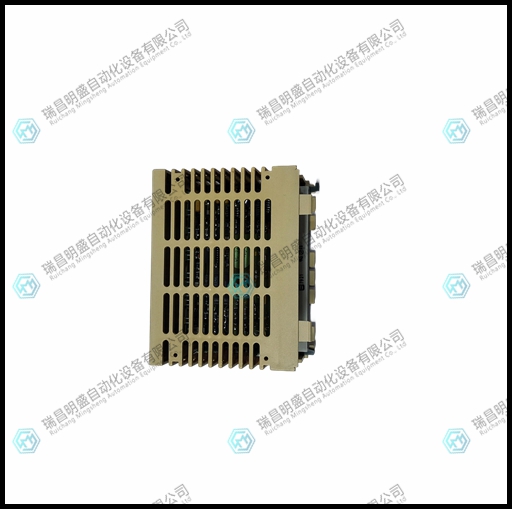

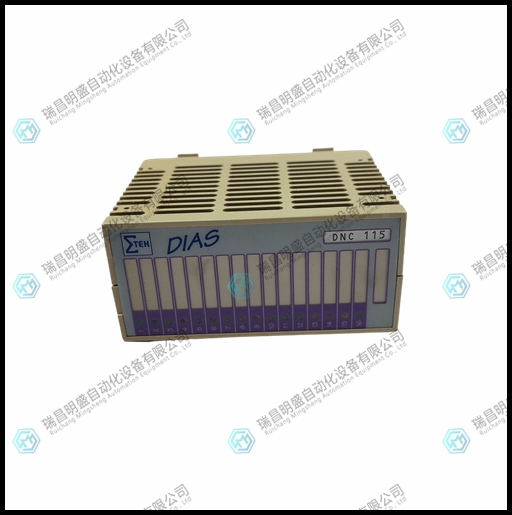

SIGMATEK DNC115定位模块实物照片：
SIGMATEK DNC115定位模块产品视频：
SIGMATEK DNC115定位模块产品详情信息：

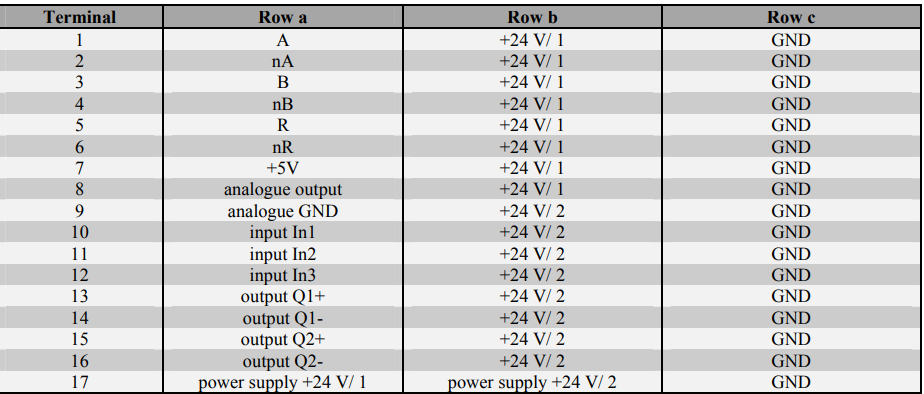

接线说明 1.为了保证无故障运行，必须坚持细致的布线安排： 2.0V电源电压连接必须遵循到公共0V端子的最短路径。 礼帽栏杆必须正确接地。 3.模拟部件的连接线必须尽可能短，避免与携带数字信号的电线平行。 4.信号承载导线必须经过屏蔽。 5.屏蔽必须连接到一个公共屏蔽轨道上。与模拟输出的连接应用示例：直流伺服、变频器的轴控制 | Wiring instructions 1.order to guarantee trouble free functioning it is essential to stick to a meticulous wiringarrangement: 2.The 0 V supply voltage connection must follow the shortest path to the common 0 V terminal. he top-hat rail must be properly connected to earth. 3.The connecting wires to the analogue components must be as short as possible and avoid lying inparallel to wires carrying digital signals. 4.The signal carrying wires must be screened. 5.The screening must be connected to a common screening rail.Connection to the analogue outputExample of application: axis control for direct current servos, frequency converter |
