ULTRA SLIMPAK G448-0002隔离放大器 是一款隔离放大器,设计用于工业控制系统中的信号调理和隔离。
ULTRA SLIMPAK G448-0002隔离放大器 详情介绍:
ULTRA SLIMPAK G448-0002 是一款隔离放大器,设计用于工业控制系统中的信号调理和隔离。它的主要作用是放大并隔离来自传感器或其他信号源的模拟信号,以便安全地传输到控制系统或数据采集系统。以下是该隔离放大器的主要特性和技术规格:
主要特点:
- 信号隔离:提供输入、输出和电源之间的三路隔离,通常隔离电压高达1500伏特,确保信号在传输过程中免受电气噪声和干扰的影响,保护下游设备。
- 信号放大:能够将低电平的模拟信号放大到适合进一步处理的电平,支持各种信号类型,如电流(如4-20mA)和电压信号。
- 多功能输入:支持多种输入信号格式,用户可以根据具体应用调整输入参数,使其适应不同类型的传感器或信号源。
- 精度高:设计精度高,能够在工业环境中实现稳定、精确的信号放大和隔离。
- 紧凑设计:超薄外形设计,节省安装空间,非常适合空间有限的控制柜或配电箱。
- DIN导轨安装:支持标准DIN导轨安装,方便集成到工业控制系统中。
- 宽温度范围:通常适应宽温度范围,适合各种工业环境,确保长期可靠性。
应用领域:
- 工业自动化与过程控制
- 数据采集系统
- 工厂自动化
- 电力监控和管理系统
- 仪表和控制系统
技术规格概要:
- 型号:G448-0002
- 隔离电压:1500V(三重隔离:输入/输出/电源)
- 输入信号类型:支持电流和电压输入(如4-20mA、0-10V等)
- 输出信号类型:与输入信号类型相匹配,放大并输出隔离后的信号
- 工作温度范围:通常在-40°C到+85°C之间
- 精度:高精度设计,典型误差在0.1%或更低
- 安装方式:DIN导轨安装
- 电源:通常为24V DC供电

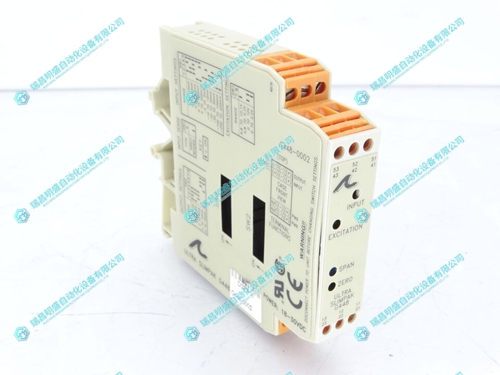

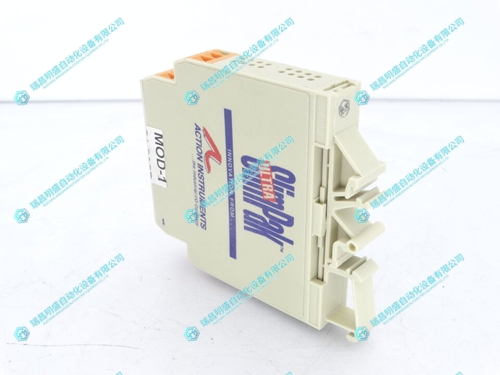

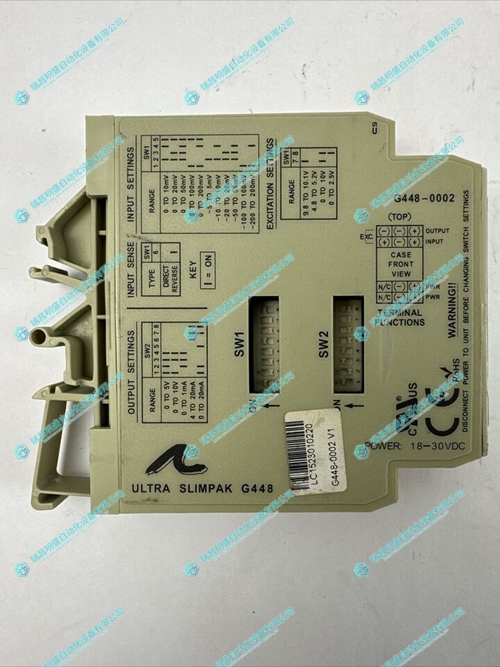

ULTRA SLIMPAK G448-0002隔离放大器 实物图片:
english introduction:
ULTRA SLIMPAK G448-0002 is an isolated amplifier designed for signal conditioning and isolation in industrial control systems. Its main function is to amplify and isolate analog signals from sensors or other signal sources for safe transmission to control systems or data acquisition systems. The following are the main characteristics and technical specifications of the isolation amplifier:
Main features:
Signal isolation: Provides three-way isolation between input, output, and power supply, typically with an isolation voltage of up to 1500 volts, ensuring that signals are protected from electrical noise and interference during transmission and protecting downstream equipment.
Signal amplification: capable of amplifying low-level analog signals to levels suitable for further processing, supporting various signal types such as current (such as 4-20mA) and voltage signals.
Multi functional input: Supports multiple input signal formats, and users can adjust input parameters according to specific applications to adapt to different types of sensors or signal sources.
High precision: The design has high precision and can achieve stable and accurate signal amplification and isolation in industrial environments.
Compact design: With an ultra-thin exterior design, it saves installation space and is very suitable for control cabinets or distribution boxes with limited space.
DIN rail installation: Supports standard DIN rail installation, making it easy to integrate into industrial control systems.
Wide temperature range: usually suitable for a wide temperature range, suitable for various industrial environments, ensuring long-term reliability.
Application areas:
Industrial Automation and Process Control
data acquisition system
Factory automation
Power monitoring and management system
Instrumentation and control system
Technical specification summary:
Model: G448-0002
Isolation voltage: 1500V (triple isolation: input/output/power supply)
Input signal type: Supports current and voltage input (such as 4-20mA, 0-10V, etc.)
Output signal type: Match the input signal type, amplify and output the isolated signal
Working temperature range: typically between -40 ° C and+85 ° C
Precision: High precision design, typical error of 0.1% or lower
Installation method: DIN rail installation
Power supply: Typically powered by 24V DC
