Siemens 6ES7331-7KF02-0AB0 模拟输入模块
1.产 品 资 料 介 绍：
中文资料：
Siemens 6ES7331-7KF02-0AB0 是 SIMATIC S7-300 系列的模拟输入模块，用于连接模拟传感器，广泛应用于工业自动化控制系统中。以下是该模块的主要产品特点：
1. 技术参数
- 输入通道：8 路模拟输入
- 信号类型：支持电压和电流输入
- 电压：±10V、010V、15V
- 电流：020mA、420mA
- 分辨率：12 位（包括符号位）
- 采样时间：每通道 1ms
- 输入阻抗：
- 电压模式：≥100KΩ
- 电流模式：50Ω
2. 适用性与功能
- 支持多种信号格式，适用于不同的工业传感器，如压力、温度、流量等模拟信号采集
- 隔离设计，通道间及与 PLC 主机之间电气隔离，提高抗干扰能力
- 自动诊断功能，可检测信号丢失、超限错误等，提高系统可靠性
- 高精度采集，确保工业控制系统的数据准确性
3. 兼容性
- 兼容 SIMATIC S7-300 PLC 系列
- 可与 STEP 7 软件进行组态，支持 PROFINET、MPI、DP 总线通信
4. 典型应用
- 过程自动化，如化工、制药、食品等行业的液位、温度监测
- 机械制造领域的压力传感器、流量计信号采集
- 电力、能源行业的远程数据采集与监测
英文资料：
Siemens 6ES7331-7KF02-0AB0 is an analog input module of the SIMATIC S7-300 series, used to connect analog sensors and widely used in industrial automation control systems. The following are the main product features of this module:
1. Technical parameters
Input channel: 8 analog inputs
Signal type: Supports voltage and current input
Voltage: ± 10V, 010V, 15V
Current: 020mA, 420mA
Resolution: 12 bits (including symbol bits)
Sampling time: 1ms per channel
Input impedance:
Voltage mode: ≥ 100KΩ
Current mode: 50 Ω
2. Applicability and functionality
Supports multiple signal formats, suitable for different industrial sensors, such as analog signal acquisition for pressure, temperature, flow, etc
Isolation design, electrical isolation between channels and PLC host to improve anti-interference ability
Automatic diagnostic function can detect signal loss, over limit errors, etc., improving system reliability
High precision acquisition ensures the accuracy of data in industrial control systems
3. Compatibility
Compatible with SIMATIC S7-300 PLC series
Can be configured with STEP 7 software and supports PROFINET, MPI, DP bus communication
4. Typical applications
Process automation, such as liquid level and temperature monitoring in industries such as chemical, pharmaceutical, and food
Signal acquisition of pressure sensors and flow meters in the field of mechanical manufacturing
Remote data collection and monitoring in the power and energy industries

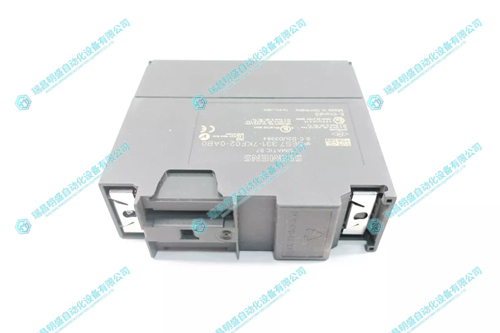

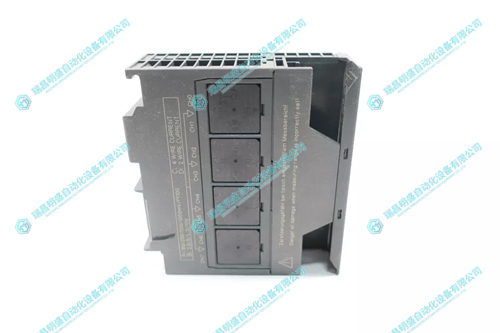

2.产 品 展 示
