CONTACT RATING AG1-SDT1-24U-DEN-A55 地面故障传感器
1.产 品 资 料 介 绍:
中文资料:
AG1-SDT1-24U-DEN-A55 是由 NK Technologies 生产的一款接地故障传感器,旨在检测电气系统中的接地故障,保护设备和人员的安全。
主要特点:
- 功能: 实时监测电气系统中的接地故障,确保系统的安全性和可靠性。
- 电压规格: 适用于 24V AC/DC 的电压环境。
- 输出类型: 提供单刀双掷(SPDT)继电器输出,方便与其他设备集成。
- 额定电流和电压: 在 120 VAC 时额定电流为 1 A,在 30 VDC 时为 2 A。
- 噪声免疫: 具备噪声免疫功能,适用于电磁干扰(EMI)和射频干扰(RFI)敏感的环境。
- 延迟时间: 具有 150 毫秒的附加延迟时间。
- 重置方式: 采用自动重置,设定点为 55 mA。
应用领域:
- 工业自动化: 用于检测电气系统中的接地故障,保护设备和人员安全。
- 电力系统: 在电力系统中用于监控和保护,确保系统的稳定运行。
- 医疗设备: 在医疗设备中用于确保电气安全,防止故障对患者和设备造成影响。
- 过程控制: 用于实时检测各种物理量(如压力、温度、流量等),并将其转换为可用的电信号,用于工业生产中的参数测量、故障诊断、过程控制、安全保护和节能优化等多个方面。
综上所述,AG1-SDT1-24U-DEN-A55 是一款多功能的接地故障传感器,广泛应用于工业自动化、电力系统、医疗设备等领域,具有高可靠性和噪声免疫能力。
英文资料:
AG1-SDT1-24U-DEN-A55 is a ground fault sensor produced by NK Technologies, designed to detect ground faults in electrical systems and protect the safety of equipment and personnel.
Main features:
Function: Real time monitoring of grounding faults in electrical systems to ensure the safety and reliability of the system.
Voltage specification: Suitable for voltage environments of 24V AC/DC.
Output type: Provides single pole double throw (SPDT) relay output for easy integration with other devices.
Rated current and voltage: The rated current is 1 A at 120 VAC and 2 A at 30 VDC.
Noise immunity: It has noise immunity function and is suitable for environments sensitive to electromagnetic interference (EMI) and radio frequency interference (RFI).
Delay time: with an additional delay time of 150 milliseconds.
Reset method: Automatic reset is used, with a set point of 55 mA.
Application areas:
Industrial automation: used to detect grounding faults in electrical systems and protect equipment and personnel safety.
Power system: Used for monitoring and protection in the power system to ensure stable operation of the system.
Medical equipment: Used in medical devices to ensure electrical safety and prevent malfunctions from affecting patients and equipment.
Process control: used for real-time detection of various physical quantities (such as pressure, temperature, flow rate, etc.), and converting them into usable electrical signals for parameter measurement, fault diagnosis, process control, safety protection, and energy-saving optimization in industrial production.
In summary, AG1-SDT1-24U-DEN-A55 is a multifunctional ground fault sensor widely used in industrial automation, power systems, medical equipment, and other fields, with high reliability and noise immunity.

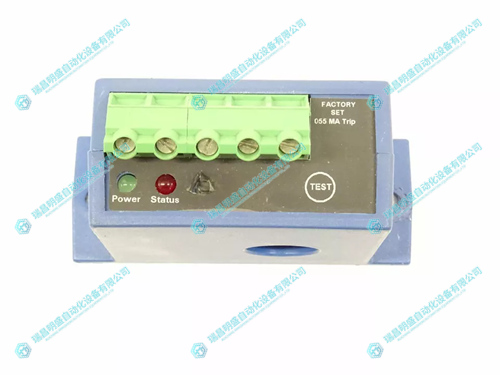

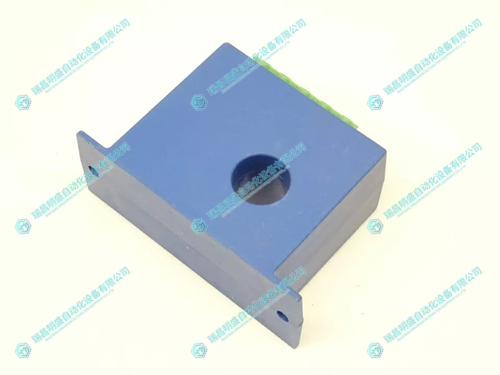

2.产 品 展 示
