Horner Electric HE693ADC816模拟输入模块

HORNER ELECTRIC  HE693ADC816模拟输入模块

1.产 品 资 料 介 绍：

中文资料：

Horner Electric 的 HE693ADC816 模拟输入模块是一款专为工业自动化系统设计的设备，提供 8 个单端模拟输入通道，并支持 16 位分辨率。它能够将模拟输入信号（如电流）转换为数字值，并将数据传输到 PLC 系统，确保准确的数据采集和控制。

主要特点：

• 输入范围：支持 ±1mA 的输入范围，适合多种应用。

• 采样率：提供每秒高达 3000 次通道采样，确保实时数据采集。

• 输入阻抗：具有 10kΩ 的输入阻抗，保证信号传输的准确性。

• 模拟滤波功能：内置 1.6kHz 低通滤波器，减少信号噪声。

• 数字滤波功能：提供 1 至 128 次采样的数字滤波选项，提高数据的可靠性。

• 高输入电压承受能力：能够承受最大 75VDC 的输入电压，增强系统的耐用性。

• 隔离设计：提供 500VDC 的背板隔离，确保系统的安全性。

• 共模抑制：具有超过 100dB 的共模抑制比，确保信号清晰和准确。

• 工作温度范围：适用于 0 至 60°C 的工作环境。

应用领域：

1. 工业自动化：实时监测和控制生产线中的关键参数，提升生产效率和产品质量。

2. 过程控制：在化工、制药等行业中用于精确控制生产工艺，确保工艺稳定。

3. 能源管理：优化能源消耗和资源配置，提高能源利用效率。

4. 环境监测：收集环境数据，支持数据分析和决策制定。

HE693ADC816 模块以其高精度、可靠性和快速采样能力，广泛应用于需要精确模拟信号采集和处理的工业场合。

英文资料：

Horner Electric's HE693ADC816 analog input module is a device designed specifically for industrial automation systems, providing 8 single ended analog input channels and supporting 16 bit resolution. It can convert analog input signals (such as current) into digital values and transmit the data to the PLC system, ensuring accurate data acquisition and control.

Main features:

Input range: Supports an input range of ± 1mA, suitable for various applications.

Sampling rate: Provides up to 3000 channel samples per second to ensure real-time data collection.

Input impedance: With an input impedance of 10k Ω, it ensures the accuracy of signal transmission.

Analog filtering function: Built in 1.6kHz low-pass filter to reduce signal noise.

Digital filtering function: Provides digital filtering options from 1 to 128 samples to improve data reliability.

High input voltage tolerance: capable of withstanding a maximum input voltage of 75VDC, enhancing the durability of the system.

Isolation design: Provide 500VDC backplane isolation to ensure system safety.

Common mode rejection: With a common mode rejection ratio exceeding 100dB, it ensures clear and accurate signals.

Working temperature range: suitable for working environments ranging from 0 to 60 ° C.

Application areas:

Industrial automation: Real time monitoring and control of key parameters in the production line to improve production efficiency and product quality.

Process control: Used in industries such as chemical and pharmaceutical to precisely control production processes and ensure process stability.

Energy management: Optimize energy consumption and resource allocation, and improve energy utilization efficiency.

Environmental monitoring: Collect environmental data, support data analysis and decision-making.

The HE693ADC816 module is widely used in industrial applications that require precise analog signal acquisition and processing due to its high precision, reliability, and fast sampling capability.

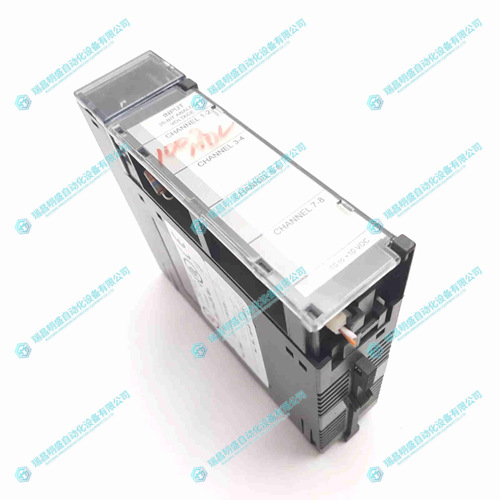

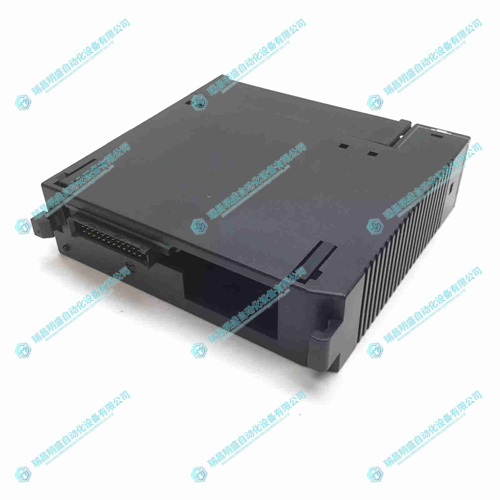

2.产      品      展      示
