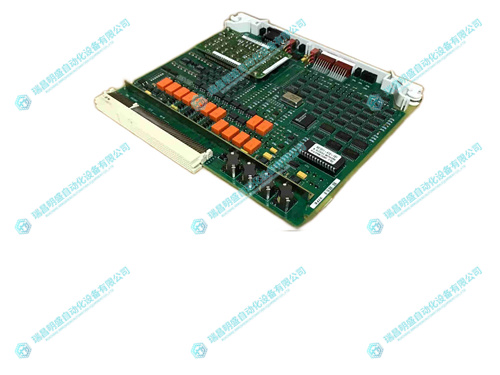

ALCATEL LUCENT SNCSBE0AAA电路板

ALCATEL LUCENT  SNCSBE0AAA电路板

1.产 品 资 料 介 绍：

中文资料：

ALCATEL-LUCENT SNCSBE0AAA 电路板 - 技术解析与应用指南

1. 产品定位与核心功能

SNCSBE0AAA是阿尔卡特-朗讯（现诺基亚）的高密度通信电路板，主要承担以下关键功能：

• 核心数据处理：执行高速数据包转发和协议转换

• 系统控制中枢：管理板卡资源和设备运行状态

• 业务接口扩展：提供多种网络接口的物理连接

2. 硬件架构特性

2.1 处理系统

• 采用多核网络处理器（如Broadcom DNX系列）

• 配备高速缓存（通常16-32GB DDR4内存）

• 集成硬件加速引擎（用于加密/解密等特定运算）

2.2 交换架构

• 支持400Gbps+的交换容量

• 采用分布式交换矩阵设计

• 提供无阻塞的数据交换能力

2.3 接口配置

• 标准配置包含：

  • 4×100G QSFP28光接口

  • 8×25G SFP28光接口

  • 2×10G Base-T电接口

• 支持热插拔更换

3. 典型应用场景

3.1 电信核心网络

• 部署于7750 SR核心路由器

• 承担PE设备功能（MPLS VPN业务边缘）

• 实现100G骨干网互联

3.2 数据中心网络

• 用于7450 ESS业务交换机

• 构建Spine-Leaf架构中的Spine节点

• 支持VXLAN等 overlay 网络技术

3.3 5G承载网

• 在5G核心网UPF设备中应用

• 处理用户面高速数据转发

• 支持网络切片隔离

英文资料：

ALCATEL-LUCENT SNCSBE0AAA Circuit Board - Technical Analysis and Application Guide

1. Product positioning and core functions

SNCSBE0AAA is a high-density communication circuit board from Alcatel Lucent (now Nokia), mainly responsible for the following key functions:

Core data processing: Perform high-speed packet forwarding and protocol conversion

System Control Center: Manage board resources and device operating status

Business interface extension: providing physical connections for multiple network interfaces

2. Hardware architecture characteristics

2.1 Processing System

Adopting multi-core network processors (such as Broadcom DNX series)

Equipped with high-speed cache (usually 16-32GB DDR4 memory)

Integrated hardware acceleration engine (for specific operations such as encryption/decryption)

2.2 Exchange Architecture

Supports 400Gbps+switching capacity

Adopting a distributed switching matrix design

Provide non blocking data exchange capability

2.3 Interface Configuration

The standard configuration includes:

4 × 100G QSFP28 optical interface

8 × 25G SFP28 optical interface

2 × 10G Base-T electrical interface

Support hot swappable replacement

3. Typical application scenarios

3.1 Telecommunications Core Network

Deploy on 7750 SR core router

Undertake PE device functionality (MPLS VPN service edge)

Realize 100G backbone network interconnection

3.2 Data Center Network

Used for 7450 ESS business switch

Building Spine Nodes in Spine Leaf Architecture

Support overlay network technologies such as VXLAN

3.3 5G Carrier Network

Application in UPF devices of 5G core network

Handling high-speed data forwarding on the user interface

Support network slicing isolation
