ALCATEL LUCENT 3AL78835AAAB 警报接口卡

ALCATEL LUCENT  3AL78835AAAB 警报接口卡

1.产 品 资 料 介 绍：

中文资料：

ALCATEL LUCENT 3AL78835AAAB
警报接口卡 / Alarm Interface Card

产品概述：

3AL78835AAAB 是 Alcatel-Lucent 通信系统中的一款专用警报接口卡模块，主要功能是将通信设备或系统中的告警信号进行采集、管理并通过标准接口输出，供系统监控平台（如网管系统）进行告警处理、记录与响应。

该模块通常安装在网络核心设备或接入设备中，与电源、处理器、交换板等其他关键模块协同工作，提供硬件级别的运行状态监控与故障告警接口。

核心功能特点：

• ✅ 多通道告警输入输出接口：支持多路干接点信号输入与输出，可灵活配置触发条件。

• ✅ 状态指示与自诊断功能：板卡自带 LED 指示灯，用于显示各通道告警状态。

• ✅ 与系统联动：能与主控模块、管理软件协同工作，实现自动告警报告与日志记录。

• ✅ 标准电气接口：通常提供标准告警信号接口（如 DB25、RJ45 或端子排），便于与上层系统连接。

• ✅ 稳定可靠，工业级设计：满足电信级运行环境要求，适用于高可靠性场景。

典型应用领域：

1. 电信交换系统

   • 实时监测主控板、电源模块、风扇、电缆等组件的状态，一旦异常立即发出告警。

2. 传输系统（如光传输、SDH/SONET）

   • 用于监测光模块、收发器、电源冗余、电缆连接情况。

3. 基站与接入设备

   • 在无线或有线接入设备中监控机柜门禁、电源状态、风扇运行、UPS 状况等。

4. 网络管理系统对接

   • 将告警信号通过接口传递给上层 NMS（Network Management System）进行集中告警管理。

5. 工业通信和数据中心

   • 用于对关键环境变量进行告警检测，如温度异常、电压波动、设备断电等。

英文资料：

ALCATEL LUCENT 3AL78835AAAB

Alarm Interface Card

Product Overview:

3AL78835AAAB is a dedicated alarm interface card module in Alcatel Lucent communication systems. Its main function is to collect, manage, and output alarm signals from communication devices or systems through standard interfaces for system monitoring platforms (such as network management systems) to process, record, and respond to alarms.

This module is usually installed in network core devices or access devices, working in conjunction with other key modules such as power supply, processor, and switch board to provide hardware level operation status monitoring and fault alarm interfaces.

Core functional features:

✅  Multi channel alarm input/output interface: supports multiple dry contact signal input and output, and can flexibly configure triggering conditions.

✅  Status indication and self diagnostic function: The board comes with LED indicator lights to display the alarm status of each channel.

✅  Linkage with the system: It can work together with the main control module and management software to achieve automatic alarm reporting and log recording.

✅  Standard electrical interface: usually provides standard alarm signal interfaces (such as DB25, RJ45, or terminal block) for easy connection with upper level systems.

✅  Stable and reliable, industrial grade design: meets the requirements of telecommunications grade operating environment, suitable for high reliability scenarios.

Typical application areas:

telecommunication switching system

Real time monitoring of the status of components such as the main control board, power module, fan, cables, etc., and issuing alarms immediately in case of abnormalities.

Transmission systems (such as optical transmission, SDH/SONET)

Used for monitoring optical modules, transceivers, power redundancy, and cable connections.

Base station and access equipment

Monitor cabinet access control, power status, fan operation, UPS status, etc. in wireless or wired access devices.

Network management system integration

Transmit the alarm signal to the upper layer NMS (Network Management System) through the interface for centralized alarm management.

Industrial Communication and Data Center

Used for alarm detection of key environmental variables, such as temperature anomalies, voltage fluctuations, equipment power outages, etc.

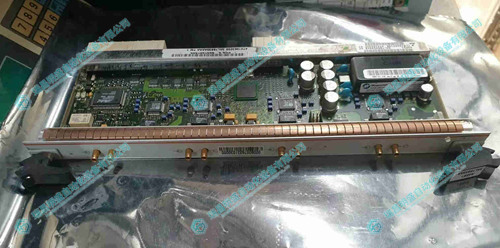

2.产      品      展      示
