GE IS215UCVEH2A控制器卡
1.产 品 资 料 介 绍：
中文资料：
IS215UCVEH2A 控制器卡
产品描述
IS215UCVEH2A 是通用电气 GE 公司为其 Mark VIe 控制系统设计的一款嵌入式控制器卡 该模块集成了工业计算功能 用于控制发电厂中的燃气涡轮 蒸汽涡轮和其他大型机械设备 其主要作用是作为系统的中央处理单元 实现逻辑运算 通讯 管理 以及设备控制
核心功能
中央控制 单板计算机形式运行控制软件 执行控制逻辑
数据采集 集成数据总线接口 与 I O 模块通讯 获取系统状态
网络通信 配备多种通信接口 包括以太网串口和系统总线通信
同步管理 管理控制系统内部各模块之间的数据同步和命令调度
诊断与日志 实时记录系统运行状态 故障信息 供远程诊断使用
主要特性
使用基于嵌入式处理器的工业主板 可运行 VxWorks 或 QNX 等实时操作系统
配有内置内存 用于本地缓存操作数据
拥有双以太网口 串行接口 USB 接口和系统总线连接器
支持冷启动 热启动 和远程维护模式
与 Mark VIe 控制系统中的控制模块直接兼容 可插入 UCSA 支架中使用
技术规格
电源输入 直流五伏
运行环境 温度范围为零下二十至七十摄氏度
抗震抗干扰设计 适用于工业级恶劣环境
尺寸标准化 插卡式结构 便于现场快速更换
板载内存和储存 配置取决于具体版本 H2A 版本一般具备较高内存容量
典型应用
应用于 GE Mark VIe 控制平台中
广泛用于燃气涡轮 蒸汽涡轮 水电设备控制系统
支持大型过程工业中的设备自动控制
适用于发电厂 石化行业 金属冶炼等过程控制领域
英文资料：
IS215UCVEH2A controller card
product description
IS215UCVEH2A is an embedded controller card designed by General Electric (GE) for its Mark VIe control system. This module integrates industrial computing functions for controlling gas turbines, steam turbines, and other large mechanical equipment in power plants. Its main function is to serve as the central processing unit of the system, implementing logical operations, communication management, and equipment control
Core functions
Central control board computer form operation control software executes control logic
Data collection integration, communication between data bus interface and IO module to obtain system status
Network communication is equipped with multiple communication interfaces, including Ethernet serial port and system bus communication
Synchronization management and command scheduling between various modules within the control system
Diagnosis and real-time logging of system operation status and fault information for remote diagnosis
Main characteristics
Industrial motherboards based on embedded processors can run real-time operating systems such as VxWorks or QNX
Equipped with built-in memory for local caching of operational data
Equipped with dual Ethernet ports, serial interface, USB interface, and system bus connector
Support cold start, hot start, and remote maintenance modes
Directly compatible with the control module in the Mark VIe control system and can be inserted into the UCSA bracket for use
technical specifications
Power input DC 5V
The operating environment temperature range is from minus 20 to 70 degrees Celsius
Seismic and anti-interference design suitable for industrial grade harsh environments
Standardized plug-in card structure for easy on-site quick replacement
The onboard memory and storage configuration depend on the specific version. H2A versions generally have higher memory capacity
Typical applications
Applied to GE Mark VIe control platform
Widely used in control systems for gas turbine, steam turbine, hydropower equipment
Support automatic control of equipment in large-scale process industries
Suitable for process control fields such as metal smelting in the petrochemical industry of power plants

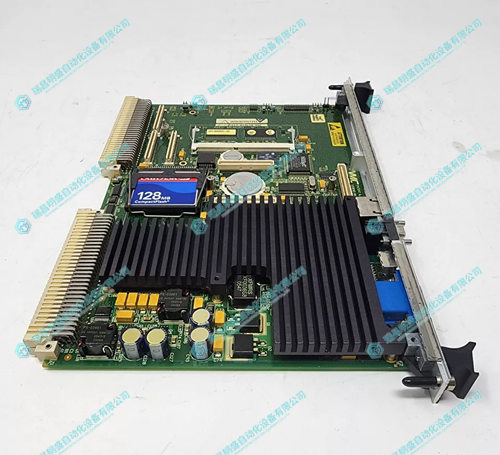

2.产 品 展 示
